Key highlights
- Form Factor: Micro ATX Form Factor
- Supported CPU: Socket AM4 support AMD Supports 3rd Gen AMD Ryzen™ (Matisse / Renoir) processors and Ryzen™ 4th Gen (Vermeer) processors and Ryzen™ 4th Gen (Vermeer) processors Support for future AMD Ryzen processors with BIOS update
- Chipset: AMD B550
- Memory: 3rd Gen AMD Ryzen Processors (Matisse CPUs) Support for DDR4 4400+(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs) Support for DDR4 4933+(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866 4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module
- Slots: 1x PCIe 4.0/ 3.0 x16 Slot (PEX16_1): Supports x 16 lanes with AMD Ryzen™ 3rd Gen processors. (Matisse only) Supports x 8 lanes AMD Ryzen™ with Radeon Vega Graphics processors. (depended on CPU) 1 x PCIe 3.0 x 16 Slot (PEX16_SB_1): Supports x 4 lanes 2 x PCIe 3.0 x 1 Slot * According to different CPUs will have different speeds. * PCIe 4.0 speed only for AMD Ryzen™ 3rd Gen Matisse. * When using PEX1_1 slot, PEX16_SB_1 slot will be adjusted to x 1 lanes.
Description
Enhance Your Gaming Experience with B550GTQ Motherboard

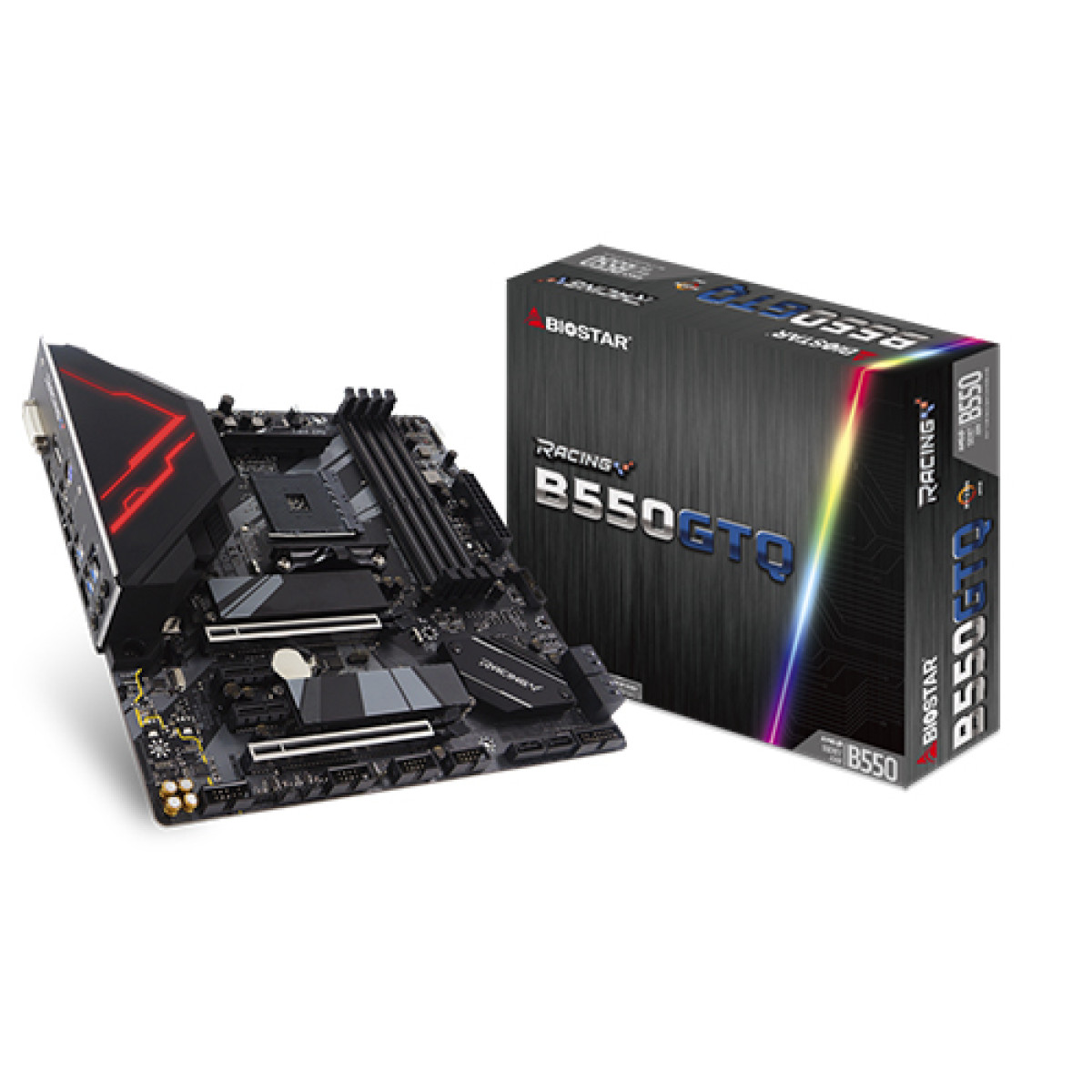

Unleash Your Gaming Potential with BIOSTAR RACING B550GTQ
The BIOSTAR RACING B550GTQ is the ultimate AMD B550 MicroATX gaming motherboard designed to elevate your gaming experience to new heights. With its state-of-the-art features, this motherboard is engineered for gamers who demand high performance and reliability. Equipped with the latest PCIe 4.0 technology, it offers lightning-fast data transfer speeds, ensuring that your games run smoothly without lag. The B550GTQ supports the latest AMD Ryzen processors, providing exceptional processing power for multitasking and intense gaming sessions.
One of the standout features of the B550GTQ is its dual M.2 slots that support NVMe SSDs, allowing for rapid loading times and improved overall system responsiveness. Additionally, the motherboard is equipped with high-quality capacitors and a robust power design, ensuring stability during peak performance. The customizable RGB lighting adds a personal touch to your setup, making it visually appealing. With comprehensive connectivity options, including USB 3.2 Gen1 ports and HDMI output, the B550GTQ is perfect for both gamers and content creators alike.
Powerful Features of BIOSTAR RACING B550GTQ Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor |
| Supported CPU | Socket AM4 support AMD Supports 3rd Gen AMD Ryzen™ (Matisse / Renoir) processors and Ryzen™ 4th Gen (Vermeer) processors and Ryzen™ 4th Gen (Vermeer) processors Support for future AMD Ryzen processors with BIOS update |
| Chipset | AMD B550 |
| Memory | 3rd Gen AMD Ryzen Processors (Matisse CPUs) Support for DDR4 4400+(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs) Support for DDR4 4933+(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866 4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module |
| Slots | 1x PCIe 4.0/ 3.0 x16 Slot (PEX16_1): Supports x 16 lanes with AMD Ryzen™ 3rd Gen processors. (Matisse only) Supports x 8 lanes AMD Ryzen™ with Radeon Vega Graphics processors. (depended on CPU) 1 x PCIe 3.0 x 16 Slot (PEX16_SB_1): Supports x 4 lanes 2 x PCIe 3.0 x 1 Slot * According to different CPUs will have different speeds. * PCIe 4.0 speed only for AMD Ryzen™ 3rd Gen Matisse. * When using PEX1_1 slot, PEX16_SB_1 slot will be adjusted to x 1 lanes. |
| Audio | ALC1150 7.1 Channels, High Definition Audio, Hi-Fi (Front) |
| External Features | |
| Dimensions | 24.4cm x 24.4cm ( W x L ) |
| Graphics Specifications | |
| Graphics | By CPU model Supports DX12 Supports HDCP |
| NETWORK & WIRELESS CONNECTIVITY | |
| LAN | Realtek RTL 8118AS 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability Support Super LAN Surge Protection |
| PORTS, CONNECTORS & SLOTS | |
| Supported Storage | 6 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10 2 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module Supports PCIe 4.0 x 4 (64Gb/s)/ 3.0 x 4 (32Gb/s) - NVMe/ AHCI SSD Supports SATA III (6.0Gb/s) SSD * M.2 (M Key) Socket: The bandwidth is dependent on the CPU. Supports PCIe 4.0 x 4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse. * When the PCIe-M2_2 slot is occupied by PCIe mode, the SATA3/ SATA4 connector will be disabled. * When PCIe-M2_2 slot is occupied by SATA mode, the SATA3 connector will be disabled. |
| USB (s) | 1 x USB 3.2 (Gen2) Type-C port (1 on rear I/O) 1 x USB 3.2 (Gen2) Type-A port (1 on rear I/O) 6 x USB 3.2 (Gen1) port (4 on rear I/Os and 2 via internal headers) 6 x USB 2.0 port (2 on rear I/Os and 4 via internal headers) |
