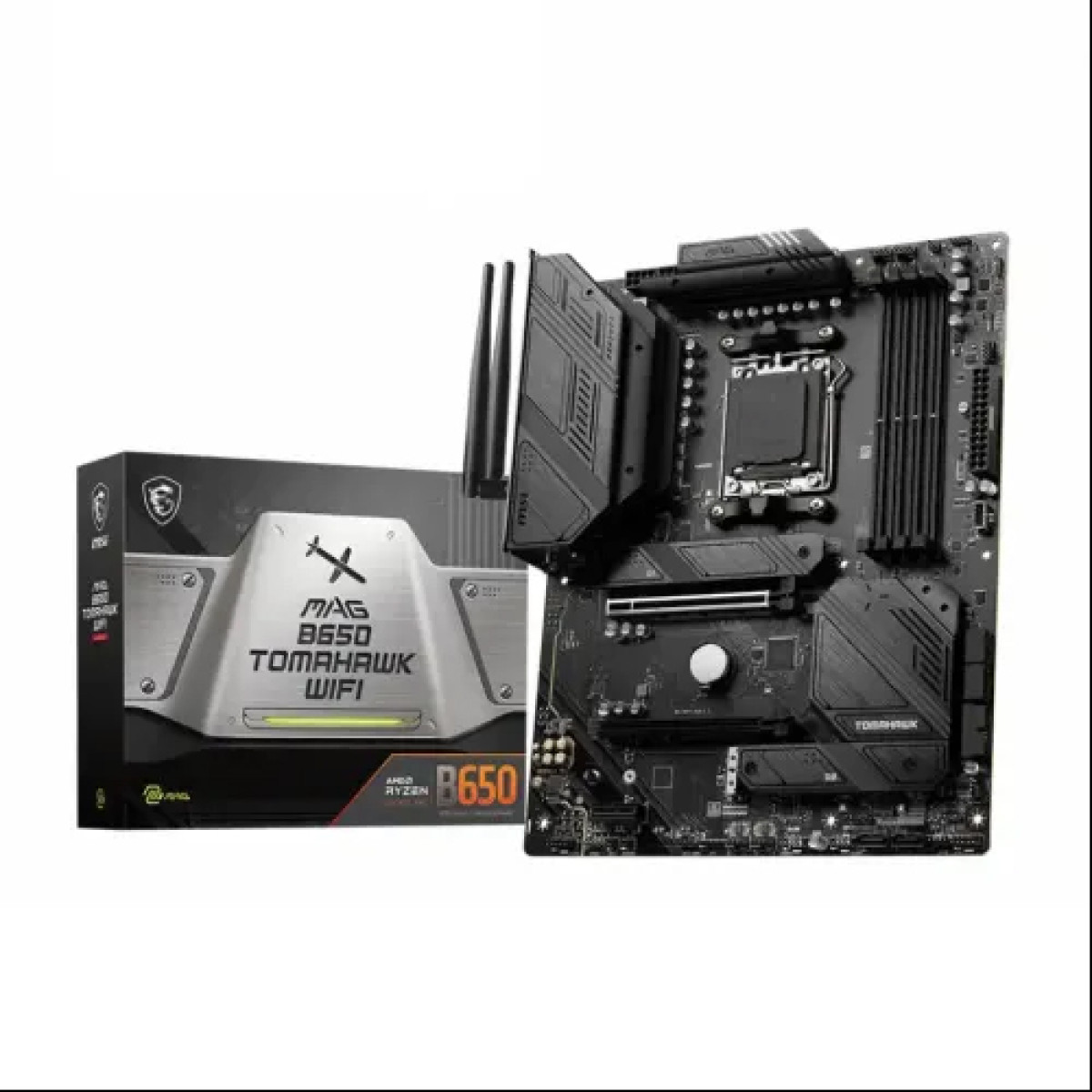

MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard
Key highlights
- Form Factor: ATX 243.84mmx304.8mm
- Supported CPU: Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5
- Chipset: AMD B650
- Audio: Realtek ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
- PCI: 2x PCI-E x16 slot Support x16/ x4 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)
Description
High-Performance AMD AM5 ATX Motherboard Available Now
Unleash Your Gaming Potential with MSI MAG B650 TOMAHAWK WIFI
The MSI MAG B650 TOMAHAWK WIFI motherboard is engineered for gamers and enthusiasts who seek top-tier performance in their builds. With the latest AMD AM5 socket, it supports the new generation of AMD Ryzen processors, ensuring remarkable speeds and efficiency. The DDR5 RAM support allows for faster data transfer rates, making it ideal for high-performance gaming and multitasking.
Featuring WiFi 6E technology, this motherboard offers lightning-fast wireless connectivity, perfect for online gaming and streaming. The robust ATX form factor provides ample space for expansion, giving you the flexibility to customize your rig with multiple graphics cards and storage devices. With its advanced thermal design, including heatsinks and fan headers, you can ensure that your system runs cool even during intense gaming sessions.
Additionally, the MSI MAG B650 TOMAHAWK comes equipped with a comprehensive set of I/O ports, including USB 3.2 Gen 2 and HDMI outputs, making it easy to connect all your peripherals. This motherboard not only enhances your gaming experience but also offers durability and reliability, backed by MSI's reputation for quality.
Upgrade Your Setup with MSI B650 TOMAHAWK WIFI
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX 243.84mmx304.8mm |
| Supported CPU | Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5 |
| Chipset | AMD B650 |
| Audio | Realtek ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Expansion Slots | |
| PCI | 2x PCI-E x16 slot Support x16/ x4 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 PCIe 3.0 supports up to x1 (From Chipset) |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Slots | 4 DIMMs |
| Supported Memory | Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1x HDMI |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0) |
| LAN Port (s) | Realtek RTL8125B 2.5Gbps LAN |
| Supported Storage | 3x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Wireless Communication module | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
