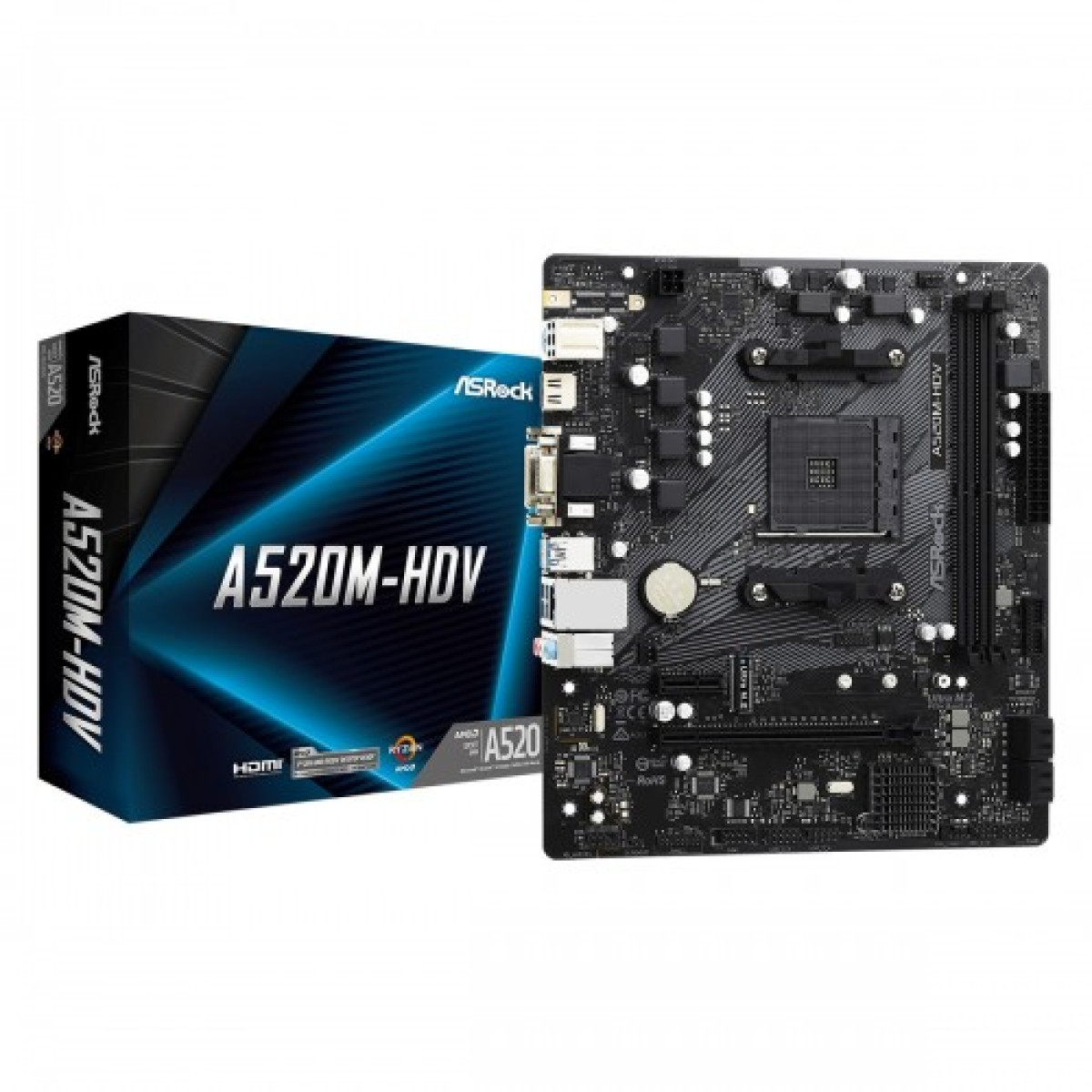

ASRock A520M-HDV Micro ATX AM4 Motherboard
Key highlights
- Form Factor: Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm Solid Capacitor design
- Chipset: AMD A520
- Memory: 64GB
- Slots: 2 x DIMM slots
- Audio: 7.1 CH HD Audio (Realtek ALC887 Audio Codec) Supports Surge Protection
Description
Affordable Micro ATX Motherboard for Gaming and Work
Unlock Your PC's Potential with the ASRock A520M-HDV
The ASRock A520M-HDV Micro ATX AM4 Motherboard is the perfect choice for users looking to build a powerful and efficient PC. Designed to support AMD Ryzen processors, this motherboard offers an exceptional balance of performance and affordability, making it ideal for both gamers and professionals alike.
With its Micro ATX form factor, the A520M-HDV fits seamlessly into a variety of PC cases, ensuring that you can create a compact yet powerful workstation. The board features dual-channel DDR4 memory support, enabling faster data transfer speeds and improved multitasking capabilities.
Additionally, the motherboard is equipped with multiple connectivity options, including USB 3.2 Gen1 and HDMI outputs, providing versatility for all your peripherals. The high-quality capacitors and solid capacitors enhance durability, ensuring long-lasting performance.
Whether you're a casual user or a gaming enthusiast, the ASRock A520M-HDV guarantees reliability and performance, making it a smart investment for your next build.
Upgrade Your PC with ASRock A520M-HDV Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm Solid Capacitor design |
| Chipset | AMD A520 |
| Memory | 64GB |
| Slots | 2 x DIMM slots |
| Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec) Supports Surge Protection |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support Supports "Plug and Play" ACPI 5.1 compliance wake up events Supports jumperfree SMBIOS 2.3 support CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment |
| Expansion Slots | |
| PCI | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) 1 x PCI Express 3.0 x1 Slot |
| Graphics Specifications | |
| Max Shared Memory | 16GB |
| Graphics | Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU DirectX 12, Pixel Shader 5.0 Shared memory default 2GB. Max Shared memory supports up to 16GB. Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) Supports HDR (High Dynamic Range) with HDMI 2.1 Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port Supports Microsoft PlayReady |
| Memory Specifications | |
| Supported Memory | AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory |
| Type | Dual Channel Memory Architecture |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub |
| DVI-D (s) | 1 x DVI-D |
| HDMI | 1 x HDMI |
| LAN Port (s) | PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE |
| Supported Storage | 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
| USB (s) | 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
| Special | |
| Special Feature | ASRock Super Alloy Premium 50A Power Choke Sapphire Black PCB High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
