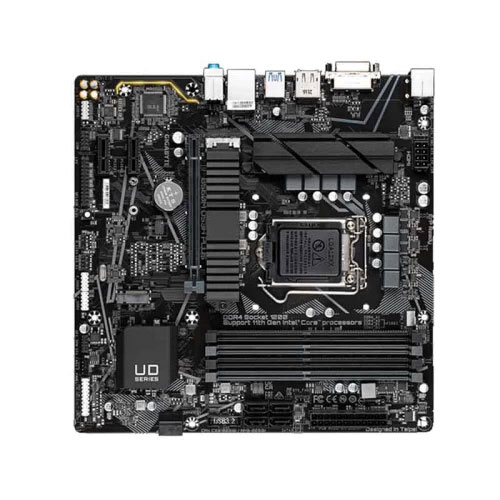

GIGABYTE B560M DS3H PLUS 10th and 11th Gen Micro ATX Motherboard
Key highlights
- Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
- Supported CPU: 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors* * Limited to processors with 4 MB Intel® Smart Cache, Intel Celeron G5xx5 family. L3 cache varies with CPU
- Chipset: Intel B560 Express Chipset
- Audio: 3 x audio jacks
- BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Genuine products with manufacturer warranty where applicable. Keep your invoice for warranty claims.
Contact us within the return window for defective or wrong items. Open-box returns may vary by category.
Description
Upgrade Your PC with GIGABYTE B560M DS3H PLUS
GIGABYTE B560M DS3H PLUS: Your Ultimate Motherboard Solution
The GIGABYTE B560M DS3H PLUS is a robust Micro ATX motherboard designed to support both 10th and 11th generation Intel processors, making it an ideal choice for users looking to build a reliable and efficient computer system. Whether you're a gamer, content creator, or just need a powerful workstation for everyday tasks, this motherboard offers a plethora of features that cater to various needs.
One of the standout features of this motherboard is its advanced thermal design, which includes large heatsinks that provide superior cooling to the CPU and chipset. This is particularly beneficial in Bangladesh's warm climate, as it ensures that your system runs smoothly without overheating. Additionally, the motherboard's Smart Fan 5 technology enables users to customize fan settings to maintain optimal airflow and cooling performance.
Compatibility is another strong suit of the GIGABYTE B560M DS3H PLUS. It supports both DDR4 RAM and PCIe 4.0, allowing for faster data transfer speeds and improved overall performance. With a maximum RAM capacity of up to 64GB, users can run multiple applications seamlessly, making it perfect for multitasking.
This motherboard also comes equipped with various connectivity options, including USB 3.2 Gen 1, HDMI, and multiple SATA ports, ensuring that users can connect their desired peripherals with ease. The addition of Realtek ALC887 audio codec guarantees high-quality sound output, making it an excellent choice for gamers and multimedia enthusiasts who demand the best audio experience.
In terms of installation, the GIGABYTE B560M DS3H PLUS is designed with user-friendliness in mind. The clear layout of the motherboard simplifies the process of assembling your system, making it accessible even for novice builders. Furthermore, GIGABYTE offers a comprehensive warranty to give users peace of mind regarding their purchase.
In conclusion, the GIGABYTE B560M DS3H PLUS is a versatile and high-performing motherboard that provides everything you need for a powerful computing experience. Whether you're upgrading your current setup or building a new one from scratch, this motherboard ensures that you have all the essential features to meet your demands, making it a worthwhile investment for any user.
Best Micro ATX Motherboard for 10th and 11th Gen CPUs
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Supported CPU | 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors* * Limited to processors with 4 MB Intel® Smart Cache, Intel Celeron G5xx5 family. L3 cache varies with CPU |
| Chipset | Intel B560 Express Chipset |
| Audio | 3 x audio jacks |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* * Supported by 11th Generation processors only. 2 x PCI Express x1 slots (The PCIEX1 slot conforms to PCI Express 3.0 standard.) |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. |
| Memory Specifications | |
| Maximum Memory | Up to 128 GB (32 GB single DIMM capacity) of system memory |
| Slots | 4 x DDR4 DIMM |
| Supported Memory | 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| DVI-D (s) | 1 x DVI-D port |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)* * Supported by 11th Generation processors only. Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel Optane Memory Ready |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 2.0 Hub: 2 x USB 2.0/1.1 ports on the back panel |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) Realtek Gaming LAN Bandwidth Control Utility |
| Special Feature | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
