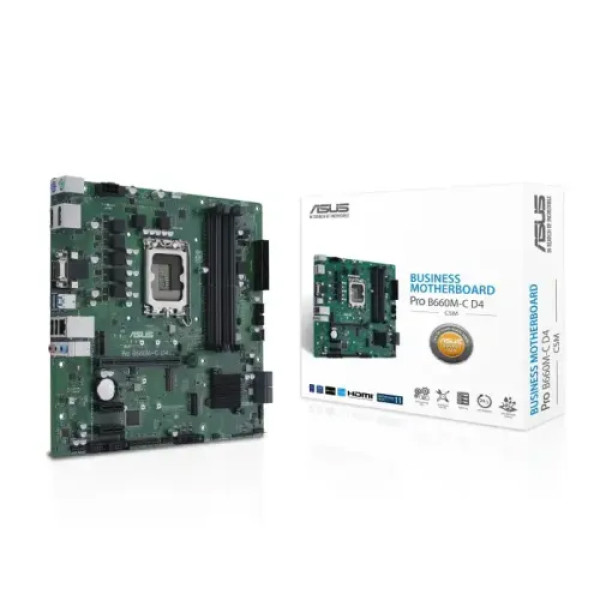

ASUS Pro B660M-C D4-CSM: Ultimate 12th Gen mATX Motherboard
Key highlights
- Graphics: 2 x DisplayPort** 1 x D-Sub port 1 x HDMI port ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.
- Chipset: Intel B660 Chipset
- BIOS: 128Mb Flash ROM
- Type: DDR4
- PCI: Intel 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B660 Chipset 2 x PCIe 3.0 x1 slots
Description
Enhance Your Build with ASUS Pro B660M-C D4-CSM
Unleash Your Potential with the ASUS Pro B660M-C D4-CSM Motherboard
The ASUS Pro B660M-C D4-CSM is a powerful mATX motherboard designed for 12th Gen Intel processors, offering exceptional performance and reliability for both gaming and professional use. With its advanced technology and robust features, this motherboard is perfect for users in Jashore, Bangladesh, looking to build a high-performance PC.
Equipped with multiple connectivity options, including USB 3.2 Gen 2 Type-A and Type-C ports, users can enjoy fast data transfer speeds. The motherboard also supports dual-channel DDR4 memory up to 64GB, ensuring seamless multitasking and improved performance in demanding applications.
One of the standout features of the ASUS Pro B660M-C D4-CSM is its comprehensive cooling solutions, which keep your system stable during intense gaming sessions or heavy workloads. Additionally, with AI noise-cancellation technology, your audio experience will be crystal clear, making it ideal for content creators.
Whether you're a gamer, a content creator, or a professional, the ASUS Pro B660M-C D4-CSM motherboard provides the performance and reliability you need to take your computing experience to the next level.
Reliable Performance for Your Next PC Upgrade
Specification
| BASIC INFORMATION | |
|---|---|
| Graphics | 2 x DisplayPort** 1 x D-Sub port 1 x HDMI port ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Chipset | Intel B660 Chipset |
| BIOS | 128Mb Flash ROM |
| Type | DDR4 |
| Expansion Slots | |
| PCI | Intel 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B660 Chipset 2 x PCIe 3.0 x1 slots |
| Memory Specifications | |
| Slots | 4 x DIMM slots |
| Supported Memory | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimem |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI |
| Supported Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. |
| USB (s) | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Special | |
| Bundled Software | ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE) |
