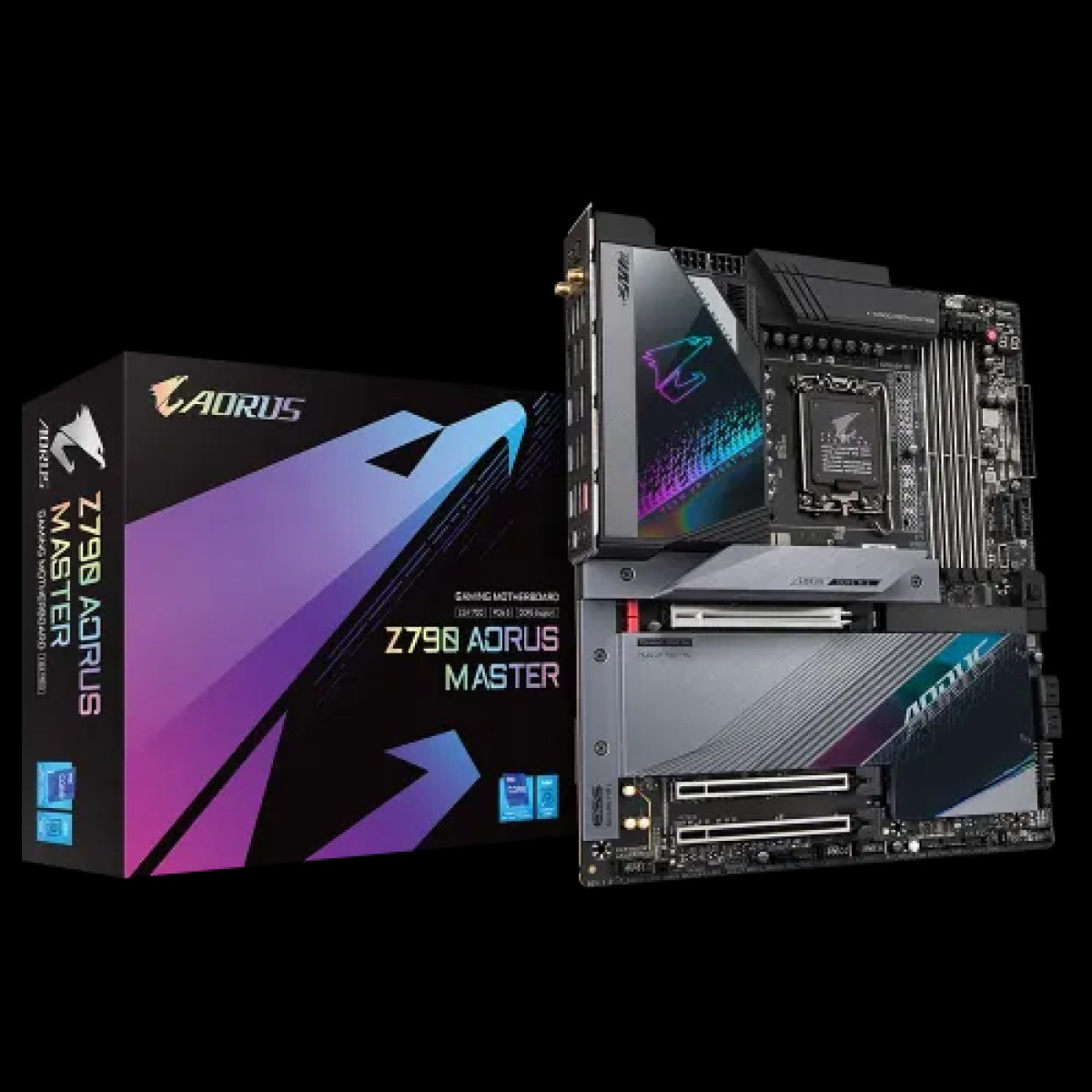

GIGABYTE Z790 AORUS MASTER Motherboard for 13th & 12th Gen CPUs
Key highlights
- Graphics: Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
- SpecialFeatures: Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
- Chipset: Intel Z790 Express Chipset
- Type: DDR5
- PCI: CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) Support for AMD CrossFire technology (PCIEX16 and PCIEX4)
Description
High-Performance E-ATX Motherboard for Gaming and Workstations
Experience Unmatched Performance with the GIGABYTE Z790 AORUS MASTER
The GIGABYTE Z790 AORUS MASTER motherboard is a powerhouse designed for both 13th and 12th Gen Intel processors, making it a top-tier choice for gamers and content creators alike. With its E-ATX form factor, it provides ample space for high-performance components while ensuring optimal airflow and cooling.
Equipped with advanced thermal solutions, including a massive heatsink and thermal pads, this motherboard keeps your system cool under extreme loads. The direct 16-phase digital VRM ensures stable power delivery, enhancing overclocking potential and system stability. With support for DDR5 memory, you can achieve lightning-fast speeds and improved data transfer rates, making it ideal for multitasking and memory-intensive applications.
Connectivity is a breeze with multiple PCIe 5.0 slots for the latest GPUs, along with USB 3.2 Gen 2 ports for rapid data transfer. The integrated Wi-Fi 6E technology guarantees a fast and reliable internet connection, perfect for online gaming and streaming. Design-wise, the motherboard features customizable RGB lighting, allowing you to personalize your setup.
In summary, the GIGABYTE Z790 AORUS MASTER is not just a motherboard; it's a comprehensive solution for users looking to push their systems to the limit while enjoying unparalleled performance and stability.
Upgrade Your System with GIGABYTE Z790 AORUS MASTER Features
Specification
| BASIC INFORMATION | |
|---|---|
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
| SpecialFeatures | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Chipset | Intel Z790 Express Chipset |
| Type | DDR5 |
| Expansion Slots | |
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) Support for AMD CrossFire technology (PCIEX16 and PCIEX4) |
| Memory Specifications | |
| Maximum Memory | 128GB (32 GB single DIMM capacity) |
| Slots | 4 x DIMM sockets |
| Supported Memory | Support for DDR5 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| LAN Port (s) | Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors |
| USB (s) | Chipset: 3 x USB Type-C ports, with USB 3.2 Gen 2x2 support (2 ports on the back panel, 1 port available through the internal USB header) Chipset+2 USB 3.2 Gen 2 Hubs: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 7 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+2 USB 3.2 Gen 1 Hubs: 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Wireless Communication module | Wireless Communication module Intel Killer Wi-Fi 6E AX1690 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
