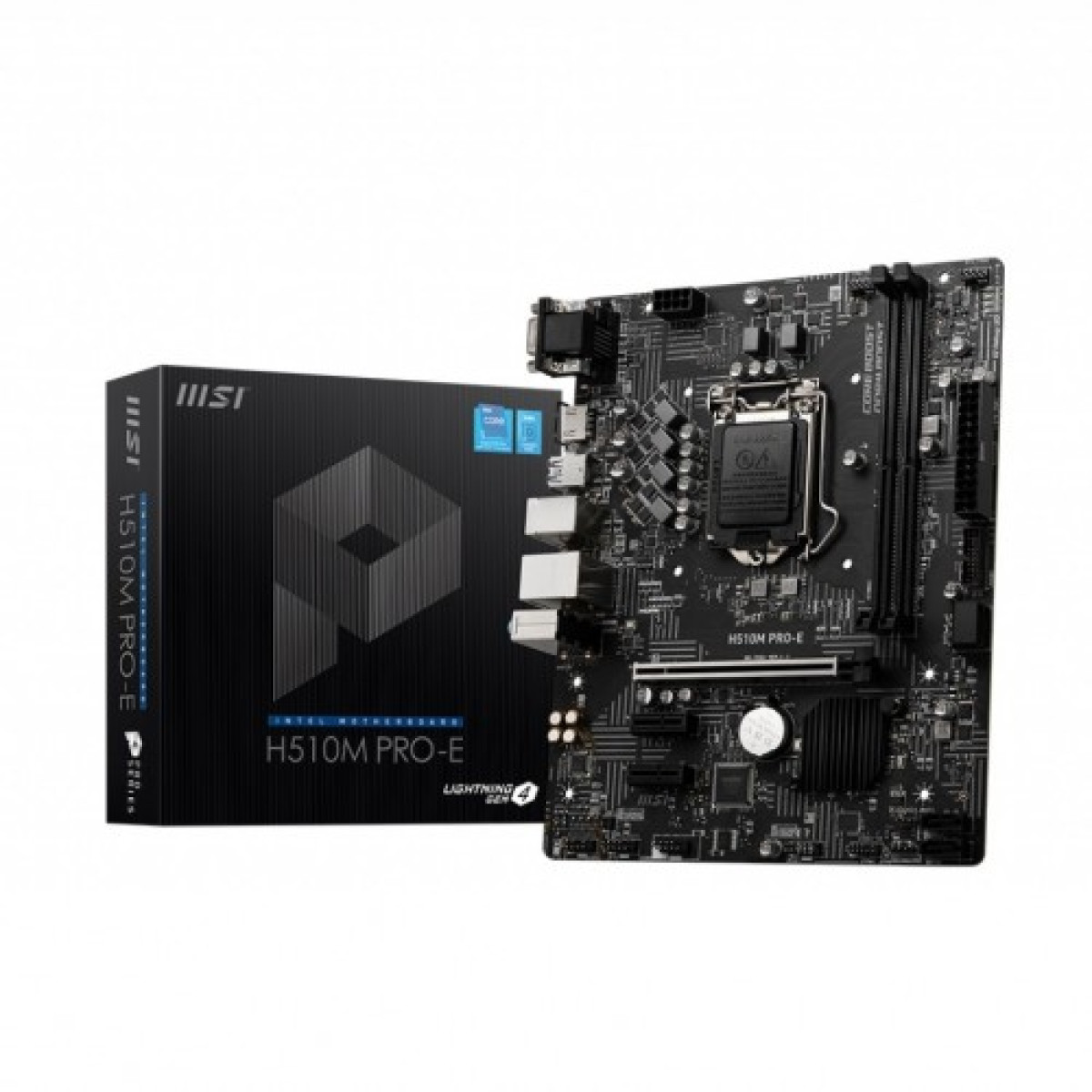

MSI H510M PRO-E Intel 10th Gen and 11th Gen Micro-ATX Motherboard
Key highlights
- Form Factor: mATX Form Factor 9.3 x 7.5 in. (23.6 cm x 19.0 cm)
- Supported CPU: Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors1
- Audio: Realtek ALC897 Codec 7.1-Channel High Definition Audio
- Type: DDR4
- Maximum Memory: up to 64GB
Description
Best Micro-ATX Motherboard for 10th and 11th Gen Intel
MSI H510M PRO-E: The Ideal Micro-ATX Motherboard for Your Build
The MSI H510M PRO-E is a premium motherboard designed to support both Intel 10th and 11th generation processors, making it a versatile choice for any PC build. With its Micro-ATX form factor, it fits perfectly in compact cases without compromising on performance. This motherboard features dual-channel DDR4 memory support up to 3200 MHz, enabling smoother multitasking and improved system responsiveness.
Equipped with multiple USB ports, including USB 3.2 Gen 1, users can enjoy fast data transfer speeds for external devices. The onboard HDMI and DisplayPort outputs ensure seamless connectivity for high-definition displays, making it a great choice for both gamers and professionals.
Additionally, the MSI H510M PRO-E is built with high-quality components that enhance durability and stability, while the easy-to-use BIOS allows for straightforward customization of system settings. Whether you’re building a gaming rig or a workstation, this motherboard is designed to meet the needs of modern computing.
Shop MSI H510M PRO-E at Unix Network, Jashore
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | mATX Form Factor 9.3 x 7.5 in. (23.6 cm x 19.0 cm) |
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors1 |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Type | DDR4 |
| Memory Specifications | |
| Maximum Memory | up to 64GB |
| Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1x HDMI 1.4 port |
| Supported Storage | 4x SATA 6Gb/s ports (From H510 Chipset) |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| USB (s) | Intel H510 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector) |
