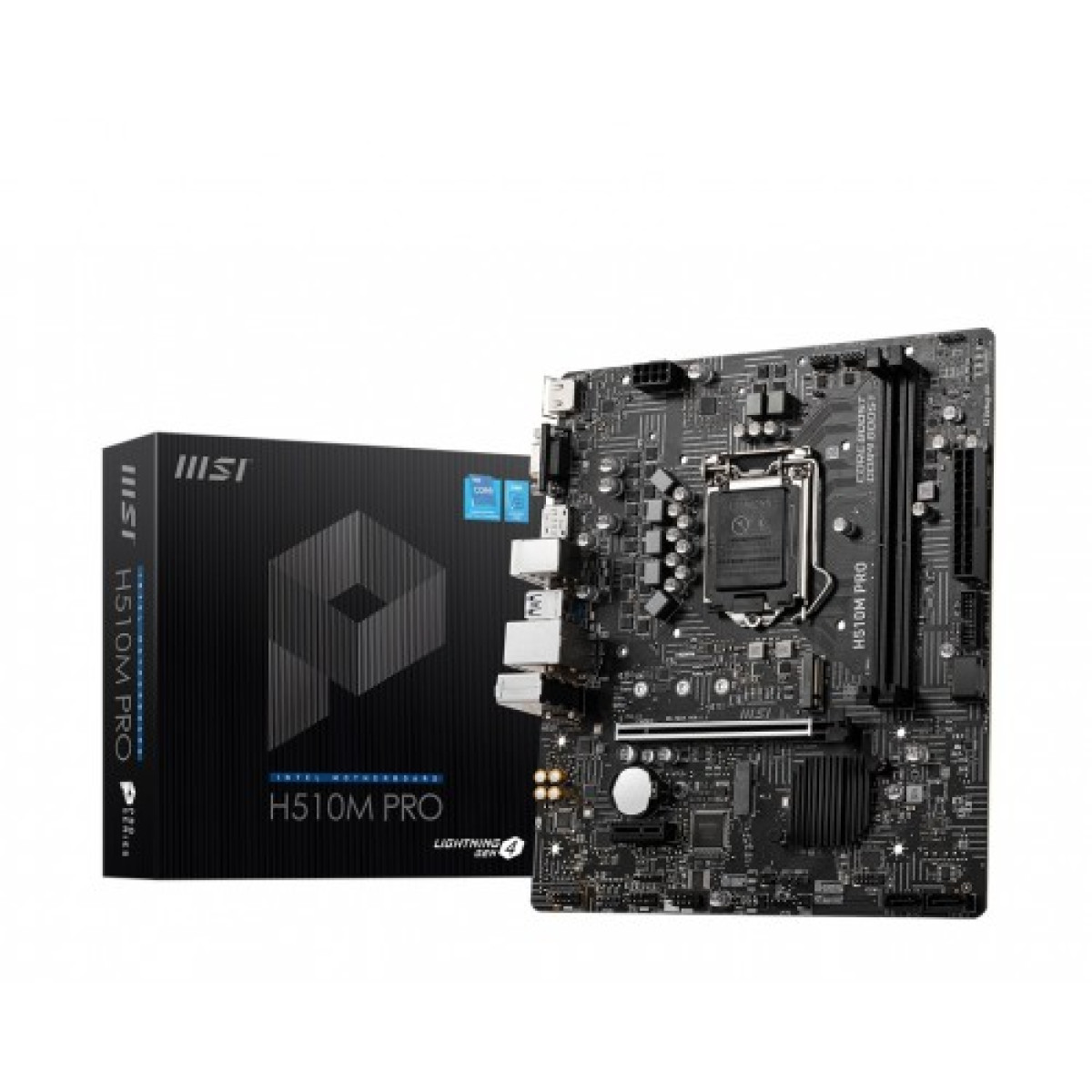

MSI H510M PRO Intel 10th Gen and 11th Gen Mirco-ATX Motherboard
Key highlights
- Form Factor: mATX Form Factor
- Chipset: Intel H510 Chipset
- Memory: support up to 64GB
- Slots: 2x DDR4 memory slots
- Audio: 1x Front panel audio connector
Description
High-Performance Micro-ATX Motherboard for Your PC
Unleash Your Potential with MSI H510M PRO Motherboard
The MSI H510M PRO Micro-ATX Motherboard is your gateway to a powerful computing experience. Designed to support both Intel 10th and 11th Gen processors, this motherboard offers unparalleled performance and reliability for gamers, content creators, and everyday users alike.
Featuring advanced features such as PCIe 4.0 support, dual-channel DDR4 memory, and multiple M.2 slots, the H510M PRO is optimized for high-speed data transfer and enhanced graphics performance. Whether you’re building a new PC or upgrading your existing setup, this motherboard provides the perfect foundation to get the best out of your components.
MSI’s commitment to quality is evident in the design and build of the H510M PRO, which includes robust heat dissipation and a user-friendly interface for easy installation. Plus, with a comprehensive warranty and support from MSI, you can purchase with confidence knowing you’re backed by a trusted brand.
Enhance your computing experience with the MSI H510M PRO – where quality meets performance.
Upgrade Your System with MSI H510M PRO Features
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | mATX Form Factor |
| Chipset | Intel H510 Chipset |
| Memory | support up to 64GB |
| Slots | 2x DDR4 memory slots |
| Audio | 1x Front panel audio connector |
| Expansion Slots | |
| M.2 Socket | 1x M.2 slot with E key for WiFi module only(M2_2) |
| Graphics Specifications | |
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| Memory Specifications | |
| Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| LAN Port (s) | 1x Intel I219V 1Gbps LAN controller |
| Supported Storage | 4x SATA 6Gb/s ports (From H510 Chipset) 1x M.2 slot (Key M) - M2_1 slot (From H510 Chipset) - Supports up to PCIe 3.0 x4 - Supports SATA 6Gb/s1 - Supports 2242/ 2260/ 2280 storage devices |
| USB (s) | - 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) - 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
