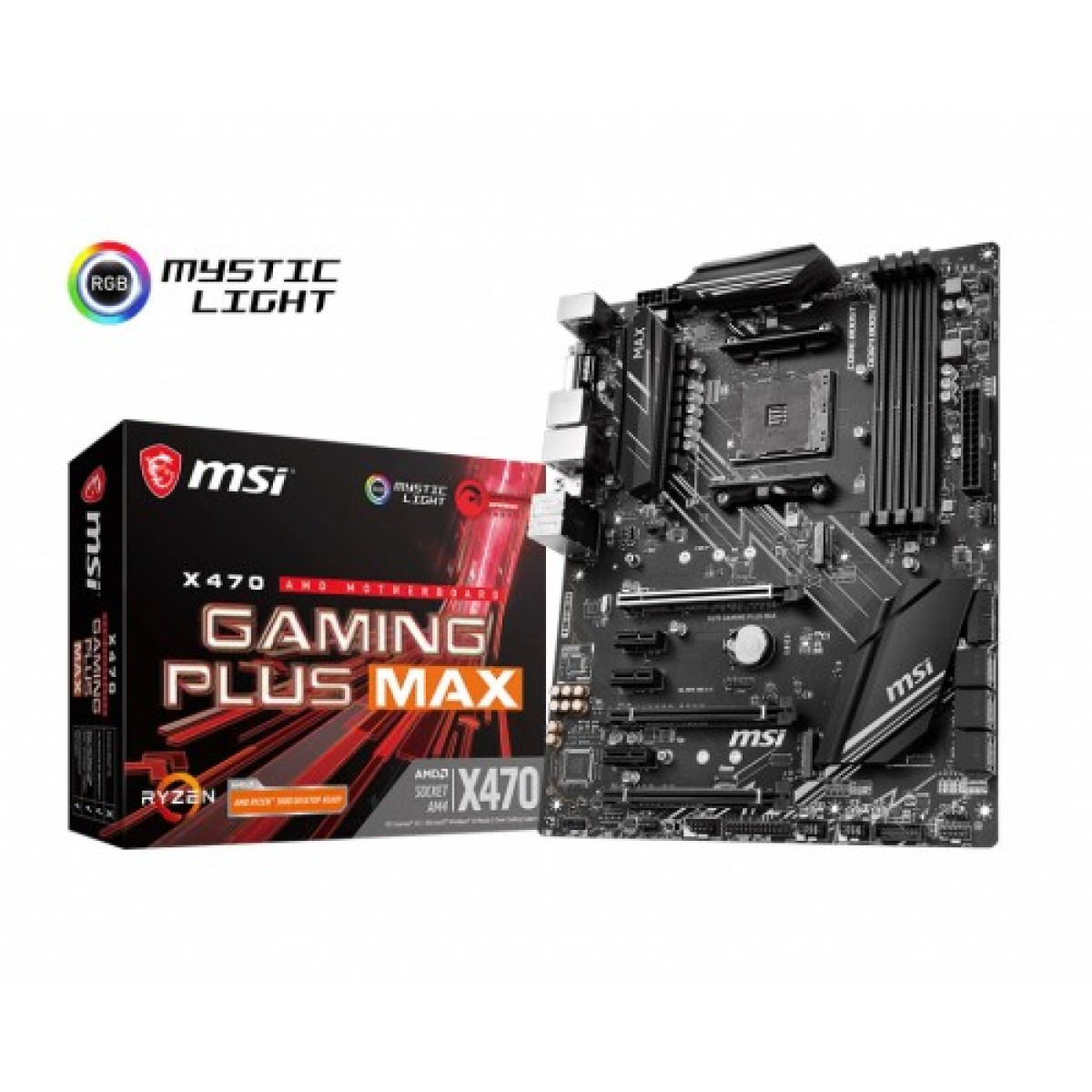

MSI X470 Gaming Plus Max RGB AMD Motherboard
Key highlights
- Form Factor: ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- Supported CPU: Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
- Chipset: AMD X470 Chipset
- M.2 Socket: 2 x M.2 slot (Key M) M2_1 slot (from AMD processor) supports PCIe 3.0x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors) or PCIe 3.0x2 (Athlon with Radeon Vega Graphics Processors) 2242/ 2260 /2280/ 22110 storage devices M2_2 slot (from AMD X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
- PCI: 2 x PCIe 3.0 x16 slots (PCIE_1, PCIE_4) 1st, 2nd and 3rd Gen AMD Ryzen™ Processors support x16/x0, x8/x8 mode Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors support x8/ x0 mode Athlon™ with Radeon™ Vega Graphics Processors support x4/x0 mode 1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode) 3 x PCIe 2.0 x1 slots
Description
Enhance Your Gaming Setup with MSI X470 Motherboard
Unleash Your Gaming Potential with MSI X470 Gaming Plus Max RGB
The MSI X470 Gaming Plus Max RGB motherboard is engineered for gamers and PC enthusiasts who seek exceptional performance and stunning visuals. Built on the AMD X470 chipset, this motherboard supports the latest AMD Ryzen processors, offering advanced overclocking capabilities that allow you to push your system to its limits. With its RGB Mystic Light, customize the lighting effects to match your gaming setup, creating an immersive atmosphere as you play your favorite titles.
Featuring Enhanced Cooling Solutions, including multiple fan headers and dedicated heatsinks, the X470 Gaming Plus Max ensures optimal thermal performance, keeping your components cool during intense gaming sessions. The motherboard also supports DDR4 memory with speeds of up to 3466MHz and beyond, providing lightning-fast data access and improved multitasking capabilities.
Connectivity is another strong point, with USB 3.2 Gen 2 ports, ensuring fast data transfer rates for your peripherals. Additionally, the inclusion of M.2 slots allows for high-speed NVMe SSDs, helping reduce load times in games and applications. With its robust build quality and gamer-friendly features, the MSI X470 Gaming Plus Max RGB is the ideal choice for building a high-performance gaming rig.
Top Features of MSI X470 Gaming Plus Max RGB Board
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Supported CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 |
| Chipset | AMD X470 Chipset |
| Expansion Slots | |
| M.2 Socket | 2 x M.2 slot (Key M) M2_1 slot (from AMD processor) supports PCIe 3.0x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors) or PCIe 3.0x2 (Athlon with Radeon Vega Graphics Processors) 2242/ 2260 /2280/ 22110 storage devices M2_2 slot (from AMD X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices |
| PCI | 2 x PCIe 3.0 x16 slots (PCIE_1, PCIE_4) 1st, 2nd and 3rd Gen AMD Ryzen™ Processors support x16/x0, x8/x8 mode Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors support x8/ x0 mode Athlon™ with Radeon™ Vega Graphics Processors support x4/x0 mode 1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode) 3 x PCIe 2.0 x1 slots |
| Graphics Specifications | |
| Max Shared Memory | Maximum shared memory of 2048 MB |
| Graphics | 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1 1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz1 Only support when using Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Processors 1st, 2nd and 3rd Gen AMD Ryzen Processors Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Processors |
| Memory Specifications | |
| Maximum Size | supports up to 64GB |
| Slots | 4 x DDR4 memory slots |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667 Mhz by JEDEC For AMD Ryzen Gen3 (R5/R7/R9) Supports2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 Mhz by A-XMP OC MODE For AMD Other CPU Supports2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 Mhz by A-XMP OC MODE |
| Type | Dual channel memory architecture Supports non-ECC UDIMM memoryy Supports ECC UDIMM memory |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | Realtek ALC892 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| DVI-D (s) | 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz |
| HDMI | 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz |
| LAN Port (s) | 1 x Realtek 8111H Gigabit LAN controller |
| Supported Storage | AMD X470 Chipset 6 x SATA 6Gb/s ports 2 x M.2 slot (Key M)1 M2_1 slot (from AMD processor) supports PCIe 3.0x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors) or PCIe 3.0x2 (Athlon with Radeon Vega Graphics Processors) 2242/ 2260 /2280/ 22110 storage devices M2_2 slot (from AMD X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices |
| USB (s) | ASMedia ASM1143 Chipset 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel AMD X470 Chipset 4 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB connectors 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) AMD CPU 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| Internal I/O Connectors | PS/2 Combo Port USB 3.2 Gen1 LAN Port HD Audio Connectors USB 2.0 Ports DVI-D Port HDMI Port USB 3.2 Gen1 USB 3.2 Gen2 Optical S/PDIF OUT |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
