Key highlights
- Form Factor: Micro ATX Form Factor; 24.4cm x 18.5cm
- Supported CPU: Support for 9th and 8th Generation Intel® Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
- Chipset: Intel® B365 Express Chipset
- Memory: 32 GB
- Slots: 2 x DDR4 DIMM
Description
Gigabyte B365M HD3 Features and Specifications Overview

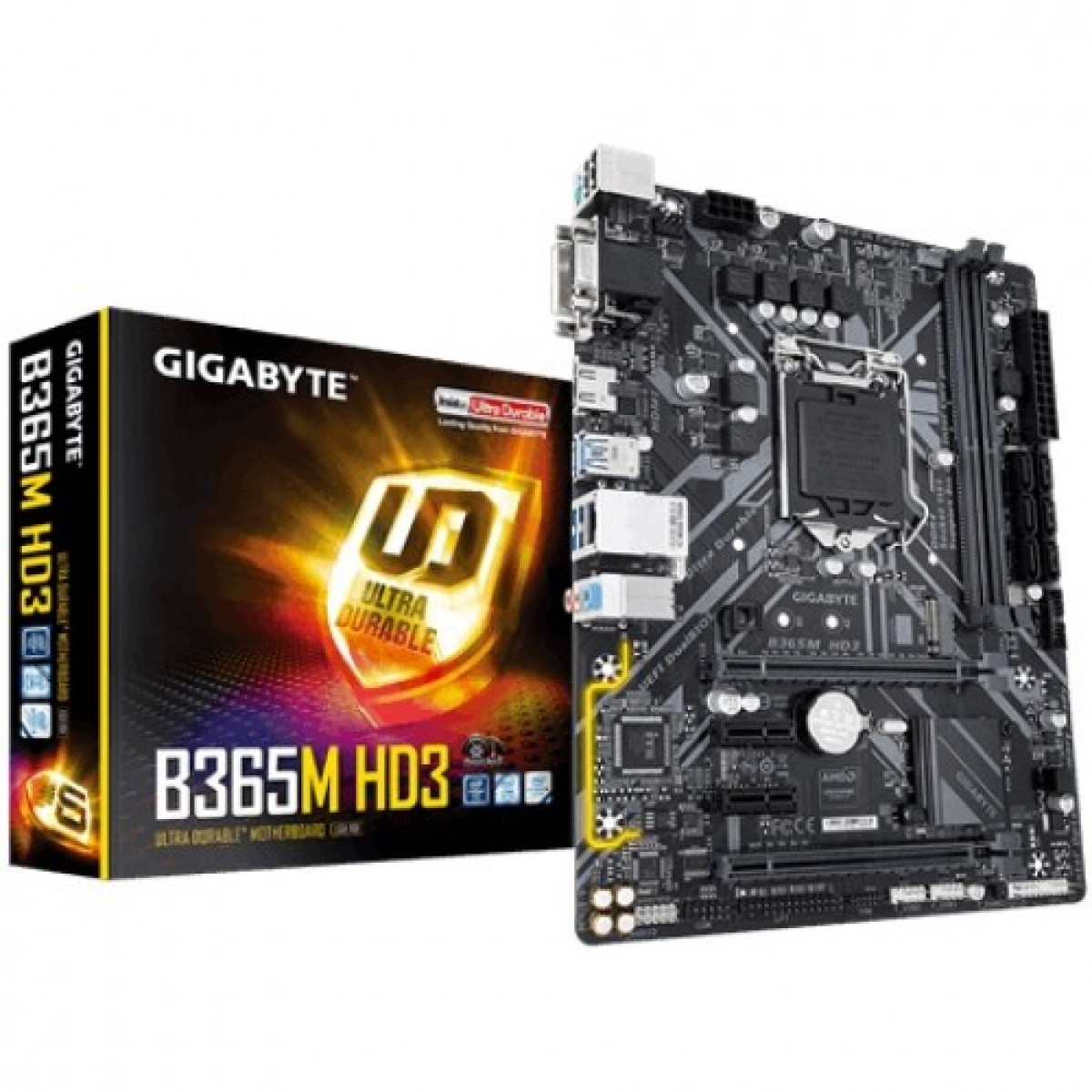

Experience Exceptional Performance with the Gigabyte B365M HD3 9th Gen Motherboard
The Gigabyte B365M HD3 motherboard is designed to meet the demands of modern computing while offering a robust platform for your 9th Generation Intel processors. This motherboard is perfect for gamers, content creators, and everyday users who seek reliability and performance.
With support for dual channel DDR4 memory up to 2400 MHz, you can enjoy smooth multitasking and enhanced performance. The Smart Fan 5 technology ensures optimal cooling, keeping your system running efficiently even during heavy workloads. Additionally, the motherboard features multiple display outputs including HDMI and DVI-D, allowing for versatile connectivity options.
The B365M HD3 is equipped with Integrated Intel UHD Graphics, which delivers stunning visuals for gaming and media consumption. Plus, with the Ultra Durable technology, you can trust in the build quality and longevity of your motherboard.
Upgrade your system with confidence, knowing that the Gigabyte B365M HD3 is backed by a 3-year warranty. This product is not just a motherboard; it's a gateway to a superior computing experience.
Enhance Your PC with Gigabyte B365M HD3 Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor; 24.4cm x 18.5cm |
| Supported CPU | Support for 9th and 8th Generation Intel® Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package |
| Chipset | Intel® B365 Express Chipset |
| Memory | 32 GB |
| Slots | 2 x DDR4 DIMM |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
| BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) |
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Graphics Specifications | |
| Max Shared Memory | Maximum shared memory of 1 GB |
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. |
| Memory Specifications | |
| Supported Memory | Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor. |
| Type | Dual channel memory architecture |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
| LAN Port (s) | 1 x RJ-45 port Realtek GbE LAN chip (10/100/1000 Mbit) |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready |
| USB (s) | 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x parallel port header 1 x serial port header 1 x Clear CMOS jumper |
| Special | |
| Bundled Software | Realtek 8118 Gaming LAN bandwidth Control Utility |
| Special Feature | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install |
