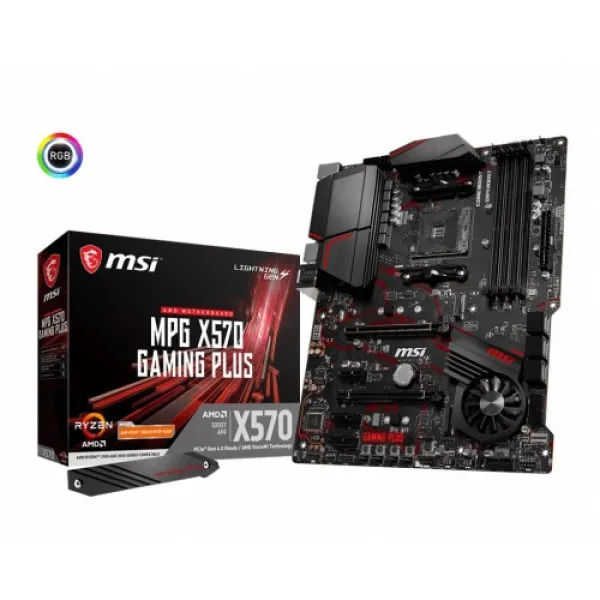

MSI MPG X570 Gaming Plus AM4 AMD ATX Motherboard
Key highlights
- Form Factor: ATX Form Factor
- Supported CPU: Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4
- Chipset: AMD X570 Chipset
- Audio: - 7.1-Channel High Definition Audio
- M.2 Socket: - Lightning Gen4 x4 M.2 with M.2 Shield Frozr accessory - 2x M.2 slots (Key M)
Description
Buy MSI MPG X570 Gaming Plus AM4 AMD ATX Motherboard in Jashore
Experience Gaming Like Never Before with MSI MPG X570 Gaming Plus
The MSI MPG X570 Gaming Plus AM4 AMD ATX Motherboard is designed for the ultimate gaming experience, tailored for gamers who demand performance and reliability. This motherboard supports the latest AMD Ryzen processors, ensuring high-speed performance and multitasking capabilities. With its advanced thermal solution, including a heat sink design that keeps your system cool during intense gaming sessions, you can game harder for longer.
Featuring an easy-to-use BIOS interface, the MPG X570 allows for quick adjustments and settings optimization. Its dual-channel DDR4 memory support guarantees higher bandwidth, enabling faster data transfer rates and improved system responsiveness. Additionally, the motherboard is equipped with multiple M.2 slots for lightning-fast SSDs, providing ample storage options for all your games and applications.
Whether you’re a casual gamer or a competitive player, the MSI MPG X570 Gaming Plus stands out with its RGB Mystic Light technology, allowing you to customize lighting effects to match your build. With enhanced audio capacitors, you’ll experience immersive sound quality that brings your games to life. Upgrade your gaming setup today!
High-Performance AMD Motherboard for Gamers in Bangladesh
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor |
| Supported CPU | Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4 |
| Chipset | AMD X570 Chipset |
| Audio | - 7.1-Channel High Definition Audio |
| Expansion Slots | |
| M.2 Socket | - Lightning Gen4 x4 M.2 with M.2 Shield Frozr accessory - 2x M.2 slots (Key M) |
| PCI | - 1x PCIe 4.0/3.0 x16 slot (PCI_E1) - 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode - 2nd Gen AMD Ryzen support PCIe 3.0x16 mode -Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode - 1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode) - 3x PCIe 3.0 x1 slots1 PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot. |
| Graphics Specifications | |
| Max Shared Memory | - Maximum shared memory of 2048 MB |
| Graphics | - 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz - Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors. - Supports 2-Way AMD CrossFire Technology |
| Memory Specifications | |
| Maximum Size | Maximum shared memory of 2048 MB |
| Slots | MEMORY CHANNEL: Dual DIMM SLOTS: 4 |
| Supported Memory | 1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400 + Mhz by JEDEC and A-XMP OC MODE |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | Realtek ALC1220 Codec: - 7.1-Channel High Definition Audio - Supports Optical S/PDIF output |
| HDMI | - 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz |
| LAN Port (s) | - 1x Realtek 8111H Gigabit LAN Controller |
| Supported Storage | AMD X570 Chipset: - 4x SATA 6Gb/s ports(SATA3-SATA6) - 2x M.2 slots (Key M) - M2_1 slot(from AMD Processor) - Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) - Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) - Supports 2242/ 2260/ 2280/ 22110 storage devices - M2_2 slot (from AMD® X570 Chipset) - Supports PCIe 3.0 x4 and SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices ASMedia ASM1061: -2x SATA 6Gb/s ports (SATA1, SATA2) |
| USB (s) | AMD X570 Chipset : - 6x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen 1 connectors) - 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD Processor : - 2x USB 3.2 Gen 2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzenwith Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel - 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| Internal I/O Connectors | Expansion Slots: 1 x PCIe 4.0 x16 (x16 mode) 1 x PCIe 4.0 x16 (x4 mode) 3 x PCIe 3.0 x1 USB: 2 x USB 2.0 Header (Supports 4 USB Type-A Ports) 2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Ports) Multi-GPU Support: 2-Way AMD CrossFireX Air Cooling: 1 x 4-Pin CPU 4 x 4-Pin System Liquid Cooling: 1 x 4-Pin Pump Power Connectors: 1 x 24-Pin Mainboard 1 x 8-Pin CPU 1 x 4-Pin CPU Security: Chassis Intrusion, TPM Module LED Header: 4 x RGB Audio: None Diagnostics: Clear CMOS Legacy: 1 x Serial |
| Special | |
| Bundled Software | Support for Windows 10 64-bit |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
