Key highlights
- Form Factor: ATX Form Factor
- Supported CPU: Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4
- Chipset: AMD X570 Chipset
- Audio: 7.1-Channel High Definition Audio
- M.2 Socket: - Lightning Gen4 x4 M.2 with M.2 Shield Frozr, - 2 Slot 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) - Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) - Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) - Supports 2242/ 2260/ 2280/ 22110 storage devices
Description

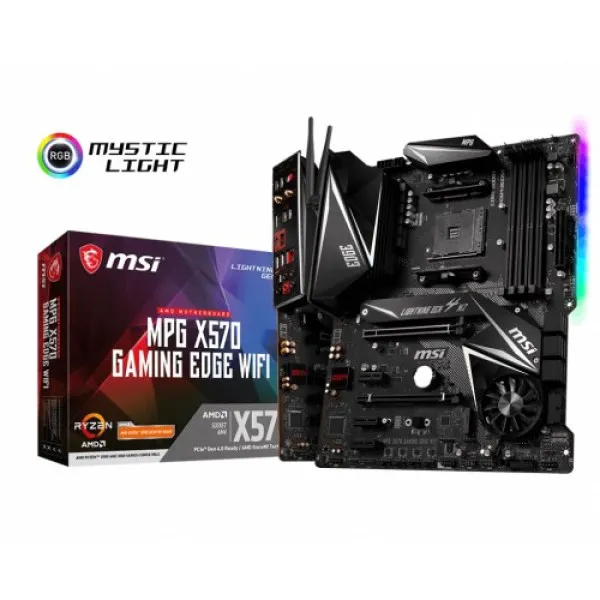

MSI MPG X570 Gaming Edge Wi-Fi AM4 Motherboard for Gamers
Unleash Your Gaming Potential with MSI MPG X570 Gaming Edge Wi-Fi
The MSI MPG X570 Gaming Edge Wi-Fi motherboard is designed for gamers and enthusiasts who demand the best. Built on the robust AM4 platform, it supports the latest AMD Ryzen processors, offering unparalleled performance and speed. With advanced features like Wi-Fi 5 connectivity, you can enjoy lag-free online gaming and seamless streaming. Lightning-fast data transfer is ensured with PCIe 4.0 support, which doubles the bandwidth, allowing for faster loading times and smoother gameplay.
This motherboard also showcases an impressive thermal design, including extended heatsinks and a dedicated M.2 Shield Frozr to keep your system cool during intense gaming sessions. The Mystic Light feature allows you to customize RGB lighting effects, giving your build a unique style. Whether you're building a new system or upgrading an existing one, the MSI MPG X570 Gaming Edge Wi-Fi motherboard is a top choice for serious gamers.
High-Performance ATX Motherboard for AMD Processors
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor |
| Supported CPU | Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4 |
| Chipset | AMD X570 Chipset |
| Audio | 7.1-Channel High Definition Audio |
| Expansion Slots | |
| M.2 Socket | - Lightning Gen4 x4 M.2 with M.2 Shield Frozr, - 2 Slot 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) - Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) - Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) - Supports 2242/ 2260/ 2280/ 22110 storage devices |
| PCI | - 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) - 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode - 2nd Gen AMD Ryzen support PCIe 3.0 x16 mode - Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode - 1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode) - 3x PCIe 3.0 x1 slots1 - PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot. |
| Graphics Specifications | |
| Max Shared Memory | Maximum shared memory of 2048 MB |
| Graphics | - 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz1 - Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors |
| Memory Specifications | |
| Maximum Size | Maximum shared memory of 2048 MB |
| Slots | - MEMORY CHANNEL: Dual - DIMM SLOTS: 4 - 4x DDR4 memory slots, support up to 128GB |
| Supported Memory | 1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400 + Mhz by JEDEC and A-XMP OC MODE |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | 7.1-Channel High Definition Audio |
| HDMI | 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz |
| LAN Port (s) | 1x Realtek 8111H Gigabit LAN Controller |
| Supported Storage | AMD X570 Chipset: - 4x SATA 6Gb/s ports(SATA3-SATA6) - 2x M.2 slots (Key M) M2_1 slot (from AMD Processor): - Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) - Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) - Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD X570 Chipset): - Supports PCIe 3.0 x4 and SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices ASMedia ASM1061: - 2x SATA 6Gb/s ports (SATA1, SATA2) |
| USB (s) | AMD X570 Chipset: - 2x USB 3.2 Gen 2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel - 4x USB 3.2 Gen 1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector - 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD Processor: - 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel - 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x TPM module connector 1x Serial port connector 1x Clear CMOS jumper 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 4x EZ Debug LEDs |
| Special | |
| Special Feature | Support for Windows 10 64-bit |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
