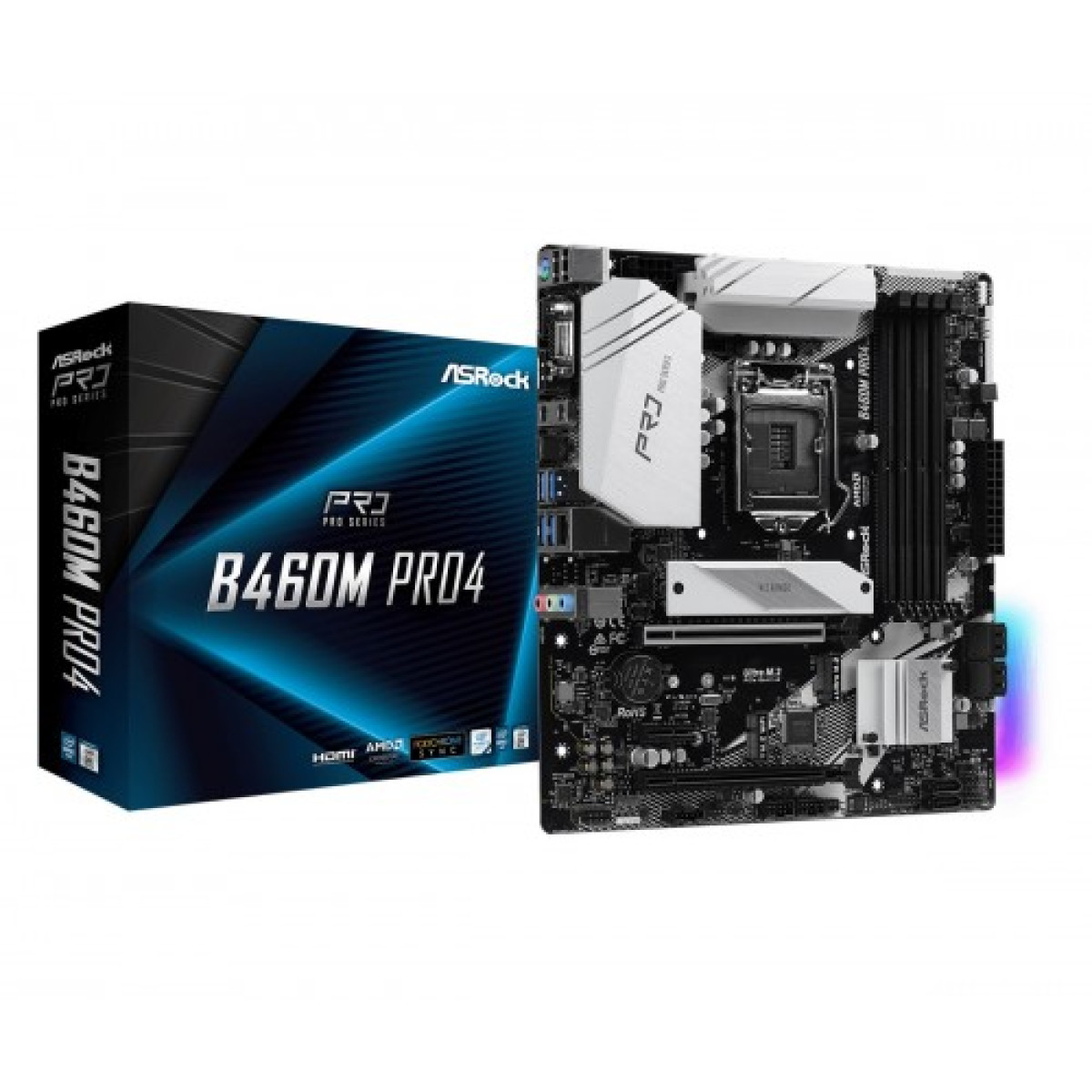

ASRock B460M Pro4 10th Gen DDR4 Motherboard
Key highlights
- Form Factor: Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm Solid Capacitor design
- Supported CPU: Supports 10th Gen Intel Core Processors (Socket 1200) Digi Power design 9 Power Phase design Supports Intel Turbo Boost Max 3.0 Technology
- Chipset: Intel B460
- Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) Premium Blu-ray Audio support Supports Surge Protection ELNA Audio Caps PCB Isolate Shielding Individual PCB Layers for R/L Audio Channel Nahimic Audio
- BIOS: 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment
Description
Reliable Performance with ASRock B460M Pro4 Motherboard
Unleash Your PC's Potential with the ASRock B460M Pro4 Motherboard
The ASRock B460M Pro4 is the ideal choice for anyone looking to build a powerful and efficient computer system. Designed for the 10th generation Intel processors, this micro ATX motherboard combines cutting-edge technology with user-friendly features. With support for DDR4 memory up to 2933MHz, it ensures smooth multitasking and high performance during gaming or intensive applications.
Featuring four DIMM slots, the ASRock B460M Pro4 supports a maximum of 64GB RAM, allowing users to expand their system's capabilities as needed. The motherboard's PCIe 3.0 slots provide ample options for upgrading your graphics card and other expansion cards, ensuring your system remains relevant in a rapidly evolving tech landscape.
Another standout feature is the Ultra M.2 slot, which supports NVMe SSDs, offering lightning-fast data access speeds. Additionally, the motherboard includes multiple USB 3.2 Gen1 ports for quick data transfer and connectivity options, making it perfect for modern peripherals.
Designed with durability in mind, the ASRock B460M Pro4 incorporates high-quality capacitors and a robust power design to ensure stable performance and longevity. Whether you are a gamer, content creator, or casual user, this motherboard will meet your demands and provide an exceptional experience.
Upgrade Your PC with ASRock B460M Pro4 Features
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm Solid Capacitor design |
| Supported CPU | Supports 10th Gen Intel Core Processors (Socket 1200) Digi Power design 9 Power Phase design Supports Intel Turbo Boost Max 3.0 Technology |
| Chipset | Intel B460 |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) Premium Blu-ray Audio support Supports Surge Protection ELNA Audio Caps PCB Isolate Shielding Individual PCB Layers for R/L Audio Channel Nahimic Audio |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module |
| PCI | 1 x PCI Express 3.0 x 16 Slot 1 x PCI Express 3.0 x 1 Slot |
| Graphics Specifications | |
| Max Shared Memory | 128GB |
| Graphics | -Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1 -Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz -Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. -VP9 10bit and VC-1 are for decode only. VP8 and VP9 encode are not supported by Windows OS |
| Memory Specifications | |
| Maximum Size | Max. capacity of system memory: 128GB |
| Slots | 1 x PCI Express 3.0 x16 Slot 2 x PCI Express 3.0 x1 Slots 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module |
| Supported Memory | - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub Port |
| Display Port (s) | 1 x DisplayPort 1.4 |
| HDMI | 1 x HDMI 1.4 |
| LAN Port (s) | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| Supported Storage | 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug |
| USB (s) | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Internal I/O Connectors | 1 x Antenna Bracket 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 1 x DisplayPort 1.4 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
| Special | |
| Bundled Software | ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Steel Slots ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| Special Feature | Premium 50A Power Choke Sapphire Black PCB High Density Glass Fabric PCB |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
