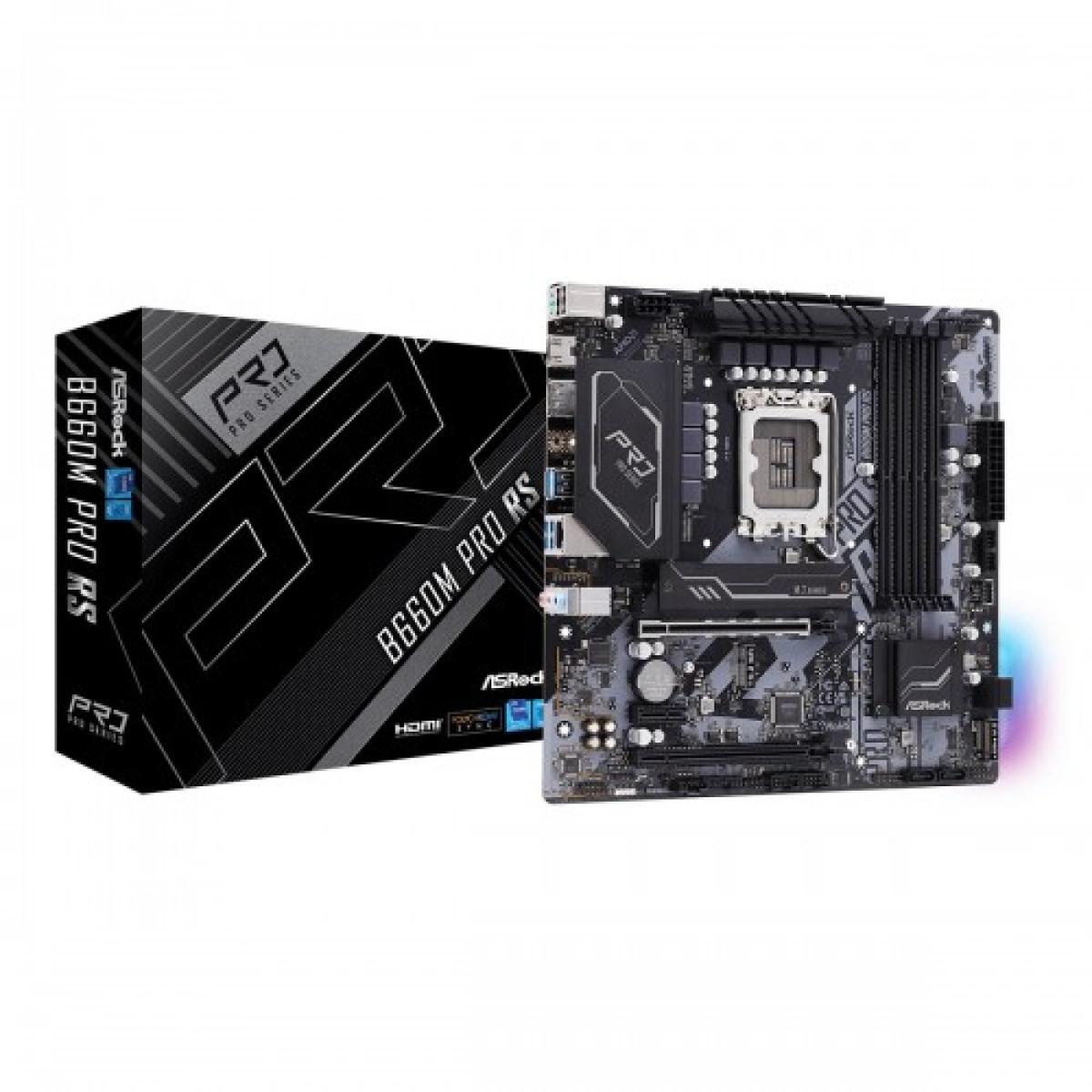

ASRock B660M Pro RS 13th Gen & 12th Gen Micro ATX Motherboard
Key highlights
- Form Factor: - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - Solid Capacitor design
- Graphics: - Intel Xe Graphics Architecture (Gen 12) - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
- Supported CPU: - Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Digi Power design - 8 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology
- Audio: - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection - Nahimic Audio
- BIOS: - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Description
Best Micro ATX Motherboard for Gaming in Bangladesh
ASRock B660M Pro RS: The Ultimate Micro ATX Motherboard for 13th and 12th Gen Intel Processors
The ASRock B660M Pro RS Micro ATX motherboard stands as a robust choice for tech enthusiasts and gamers alike, offering unparalleled performance and versatility for 13th and 12th Gen Intel processors. Designed to meet the demands of modern computing, this motherboard integrates cutting-edge technology with user-friendly features, making it an ideal foundation for your next build.
Product Overview: With a form factor of Micro ATX, the ASRock B660M Pro RS is compact yet powerful, allowing it to fit seamlessly into smaller cases without sacrificing functionality. Featuring the Intel B660 chipset, this motherboard supports the latest DDR4 memory, ensuring high-speed performance and efficient multitasking capabilities. The board is equipped with multiple PCIe slots for graphics cards and expansion cards, ensuring that users can enhance their systems with the latest technology.
Benefits: One of the standout features of the B660M Pro RS is its exceptional thermal management system. The motherboard is designed with premium components and advanced heat sinks to maintain optimal operating temperatures even during intense gaming sessions or heavy workloads. Additionally, the board offers extensive connectivity options, including USB 3.2 Gen 2 ports, HDMI and DisplayPort outputs, and multiple SATA and M.2 slots for storage expansion.
Use Cases: Whether you are building a gaming rig, a workstation for content creation, or a home office setup, the ASRock B660M Pro RS is engineered to handle a variety of applications. Its support for high-speed networking and audio technologies makes it an excellent choice for gamers who require low latency and immersive sound experiences.
Why Customers Should Buy This Product: Investing in the ASRock B660M Pro RS means choosing reliability and performance. It is backed by ASRock's commitment to quality and customer support, ensuring that you have access to assistance when needed. With its competitive pricing in the Bangladesh market, you are guaranteed to receive outstanding value without compromising on quality.
Affordable ASRock B660M Pro RS for PC Builders
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - Solid Capacitor design |
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
| Supported CPU | - Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Digi Power design - 8 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection - Nahimic Audio |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
| Type | Dual Channel DDR4 Memory Technology |
| Expansion Slots | |
| PCI | - 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3)) - 1 x PCIe Gen3x1 Slot - Supports AMD CrossFire - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT) |
| Interface | |
| HDMI | 1 x HDMI Port |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | - Supports DDR4 non-ECC, un-buffered memory up to 4800+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 |
| PORTS, CONNECTORS & SLOTS | |
| Internal I/O Ports | - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header * Supports in total up to 12V/3A, 36W LED Strip - 3 x Addressable LED Headers * Support in total up to 5V/3A, 15W LED Strip - 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) * The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CPU_FAN2/WP, CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) |
| LAN Port (s) | - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE |
| Supported Storage | - 4 x SATA3 6.0 Gb/s Connectors If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3 x4 (32 Gb/s) mode |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header |
| USB (s) | - 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
