Key highlights
- Form Factor: Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm Solid Capacitor design
- Supported CPU: Supports 10th Gen Intel Core Processors (Socket 1200) Digi Power design 7 Power Phase design Supports Intel Turbo Boost Max 3.0 Technology
- Chipset: Intel H470
- Slots: 2 x DIMM Slots
- Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection
Description
Affordable Micro ATX Motherboard for Gamers in Bangladesh

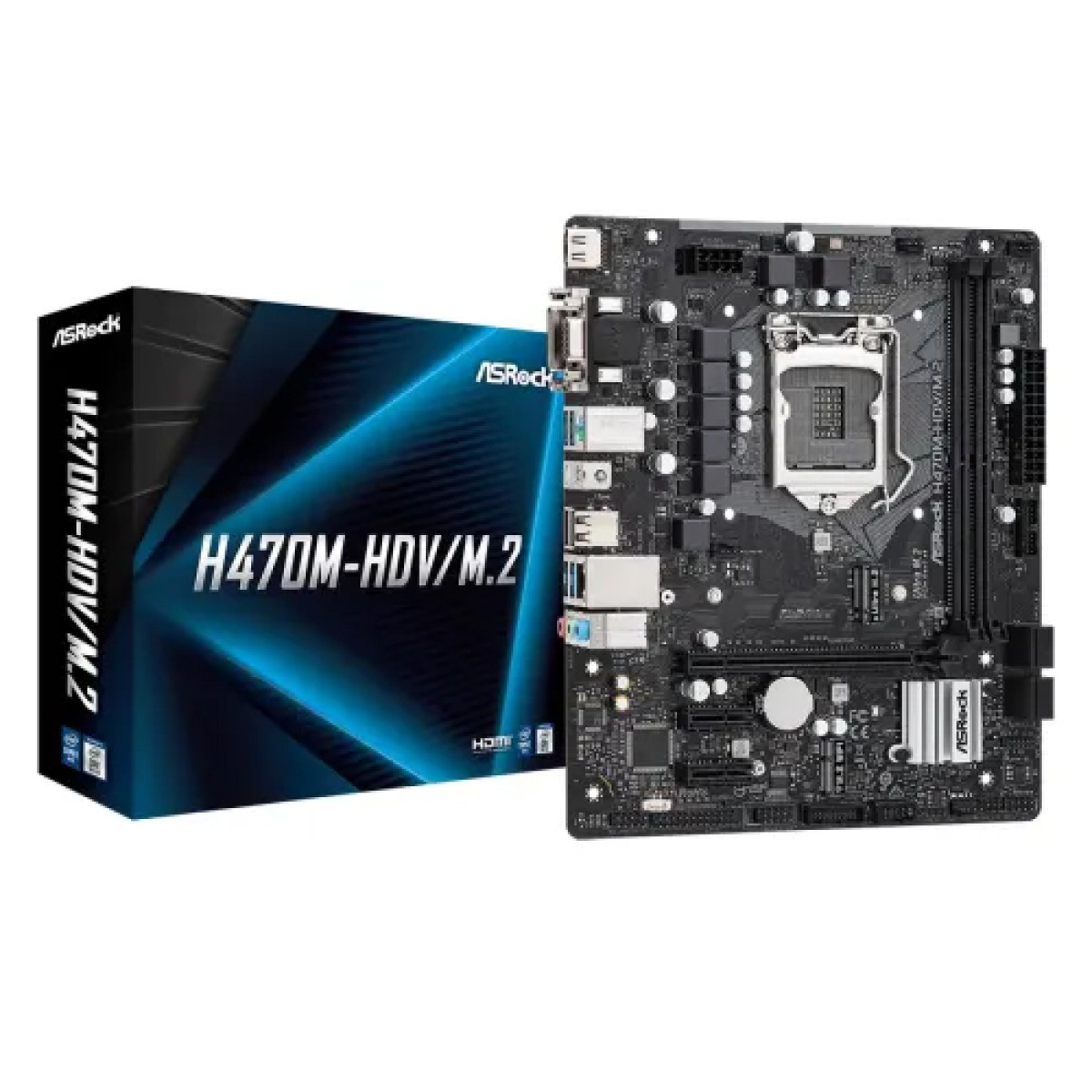

ASRock H470M-HDV/M.2 10th Gen Micro ATX Motherboard Overview
The ASRock H470M-HDV/M.2 10th Gen Micro ATX Motherboard is engineered to bring your computing experience to new heights, combining advanced technology with user-friendly features. With support for Intel’s 10th generation processors, this motherboard is perfect for those looking to build a powerful yet compact system. Its Micro ATX form factor makes it an ideal choice for users with limited space while still delivering exceptional performance.
Key Benefits: This motherboard is designed for optimal performance, ensuring your system runs smoothly, whether for gaming, content creation, or general productivity tasks. The H470M-HDV/M.2 supports dual-channel DDR4 memory, providing faster data access and improved multitasking capabilities. Its M.2 slot allows for high-speed NVMe SSDs, ensuring rapid boot and load times.
Use Cases: Ideal for gamers, casual users, and professionals alike, the ASRock H470M-HDV/M.2 is versatile enough for various applications. Gamers will appreciate its support for high-performance components, while content creators will benefit from the efficient data handling capabilities.
Why Choose ASRock?: Customers should consider the ASRock H470M-HDV/M.2 for its solid build quality, extensive feature set, and competitive pricing. With a focus on reliability and performance, this motherboard stands out in the crowded market of tech components. Additionally, ASRock's commitment to customer satisfaction is evident through their robust warranty and support services.
Discover the Best ASRock H470M-HDV/M.2 Features Today
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm Solid Capacitor design |
| Supported CPU | Supports 10th Gen Intel Core Processors (Socket 1200) Digi Power design 7 Power Phase design Supports Intel Turbo Boost Max 3.0 Technology |
| Chipset | Intel H470 |
| Slots | 2 x DIMM Slots |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCST, VCCSA Voltage Multi-adjustment |
| Type | DDR4 |
| Expansion Slots | |
| PCI | 1 x PCI Express 3.0 x16 Slot* 2 x PCI Express 3.0 x1 Slots 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Memory Specifications | |
| Maximum Memory | 64GB |
| Supported Memory | Dual Channel DDR4 Memory Technology Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel Extreme Memory Profile (XMP) 2.0 15μ Gold Contact in DIMM Slots |
| PORTS, CONNECTORS & SLOTS | |
| DVI-D (s) | 1 x DVI-D port |
| Internal I/O Ports | 1 x Print Port Header 1 x COM Port Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Supported Storage | 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header |
