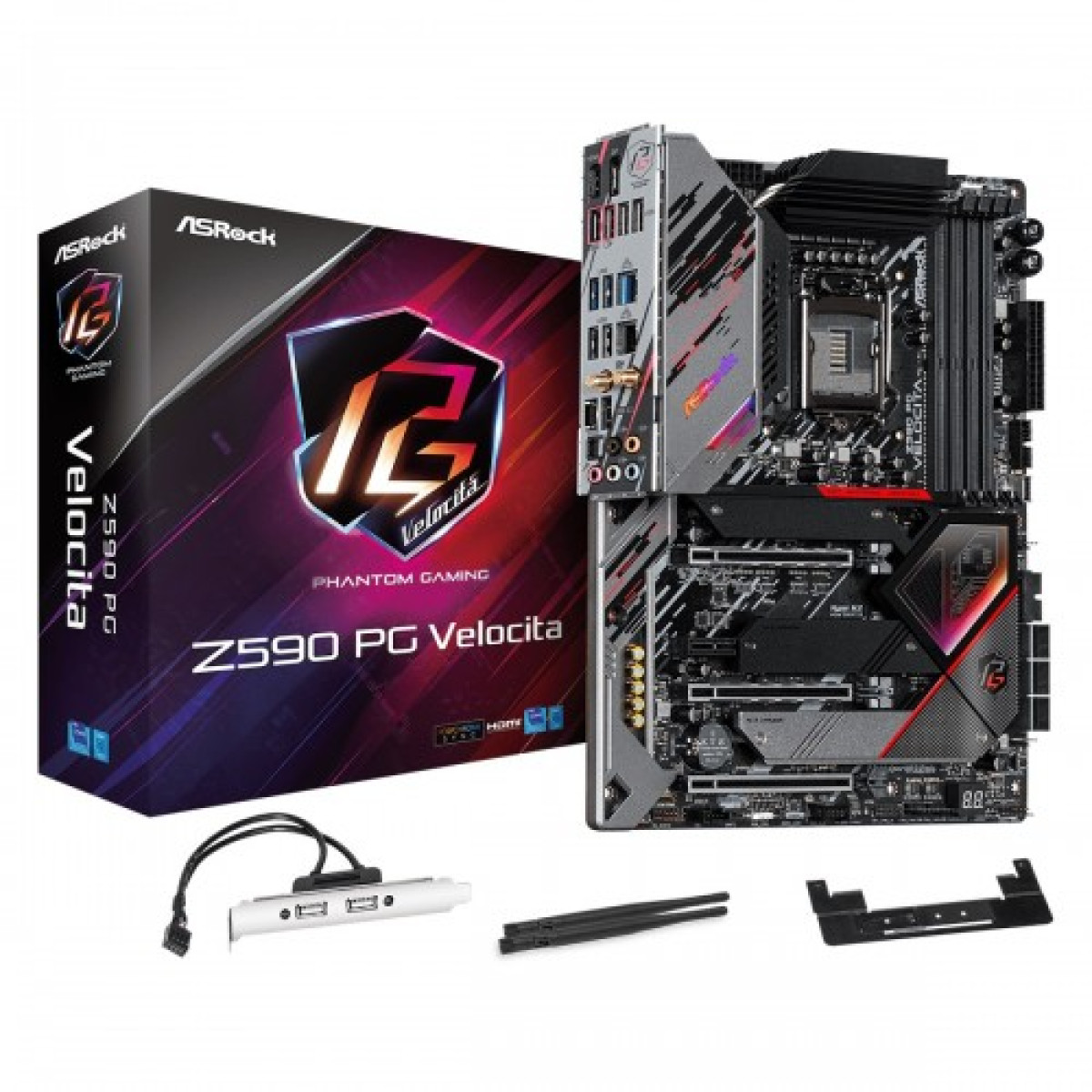

ASRock Z590 PG Velocita 10th and 11th Gen ATX Motherboard
৳33,700
Key highlights
- Form Factor: - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB
- Supported CPU: - Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200) - Digi Power design - 14 Power Phase design - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel K-Series unlocked CPUs
- Chipset: Intel Z590
- Memory: Max. capacity of system memory: 128GB
- Slots: 4 x DDR4 DIMM Slots
Description
High-Performance ATX Motherboard for Gaming and More
Unleash the Power of Gaming with ASRock Z590 PG Velocita
The ASRock Z590 PG Velocita motherboard is designed for serious gamers and PC enthusiasts looking to harness the full potential of Intel's 10th and 11th Gen processors. With its ATX form factor, this motherboard seamlessly integrates into a wide range of builds while providing advanced features for superior performance.
Built with premium components, the Z590 PG Velocita offers exceptional power delivery thanks to its robust VRM design, ensuring stability during intense gaming sessions. The motherboard supports DDR4 memory up to 4800MHz, allowing for lightning-fast data transfer speeds that can enhance overall system responsiveness.
Moreover, it includes PCIe 4.0 slots, enabling users to take advantage of the latest graphics cards for an immersive gaming experience. The board also features integrated Wi-Fi 6 and Bluetooth 5.1 technology, ensuring seamless connectivity without the need for additional adapters.
With a sleek design and customizable RGB lighting, the Z590 PG Velocita not only performs exceptionally but also looks great in any build. Additionally, the user-friendly BIOS interface allows for easy overclocking and system tuning, making it an ideal choice for both novice builders and seasoned pros.
Unleash Your PC's Potential with ASRock Z590 PG Velocita
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB |
| Supported CPU | - Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200) - Digi Power design - 14 Power Phase design - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel K-Series unlocked CPUs |
| Chipset | Intel Z590 |
| Memory | Max. capacity of system memory: 128GB |
| Slots | 4 x DDR4 DIMM Slots |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - 15μ Gold Audio Connector - Nahimic Audio |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIO 1 2, VPPM, VCCIN AUX, VCCST, VCC PLL, CPU PLL, VTTDDR Voltage Multi-adjustment |
| Expansion Slots | |
| M.2 Socket | - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel Core processors only) - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) - 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
| PCI | CPU Direct Source LAN Off (Default Setting): 11th Gen Intel Core Processors - 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE4: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE3); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE3) / Gen3x4 (PCIE4)) 10th Gen Intel Core Processors - 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE4: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE3); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE3) / Gen3x4 (PCIE4)) CPU Direct Source LAN On: 11th Gen Intel Core Processors - 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE4: single at Gen4x8 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x4 (PCIE3); triple at Gen4x8 (PCIE1) / Gen4x4 (PCIE3) / Gen3x4 (PCIE4)) 10th Gen Intel Core Processors - 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE4: single at Gen3x8 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x4 (PCIE3); triple at Gen3x8 (PCIE1) / Gen3x4 (PCIE3) / Gen3x4 (PCIE4)) - 1 x PCI Express 3.0 x1 Slot - Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O) - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Graphics Specifications | |
| Graphics | - 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics - Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) - Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports |
| Memory Specifications | |
| Supported Memory | - 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC) - 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots |
| Type | Dual Channel DDR4 Memory Technology |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort 1.4 |
| HDMI | 1 x HDMI Port |
| LAN Port (s) | 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G) - Supports Killer LAN Software - Supports Killer DoubleShotTM Pro - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V) - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Supported Storage | - 6 x SATA3 6.0 Gb/s Connectors - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel Core processors only) - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) - 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
| USB (s) | - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Type-A Ports (ASMedia ASM1042A) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Type-A Ports (Intel Z590) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) |
| Internal I/O Connectors | - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x VRM Fan Connector (4-pin)****** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) - 1 x Clear CMOS Button - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED |
| Special | |
| Special Feature | - Killer AX1675x 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ax - Supports Dual-Band 2x2 160MHz with extended 6GHz band support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 + High speed class II - Supports MU-MIMO - Supports Killer LAN Software - Supports Killer DoubleShot Pro |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
