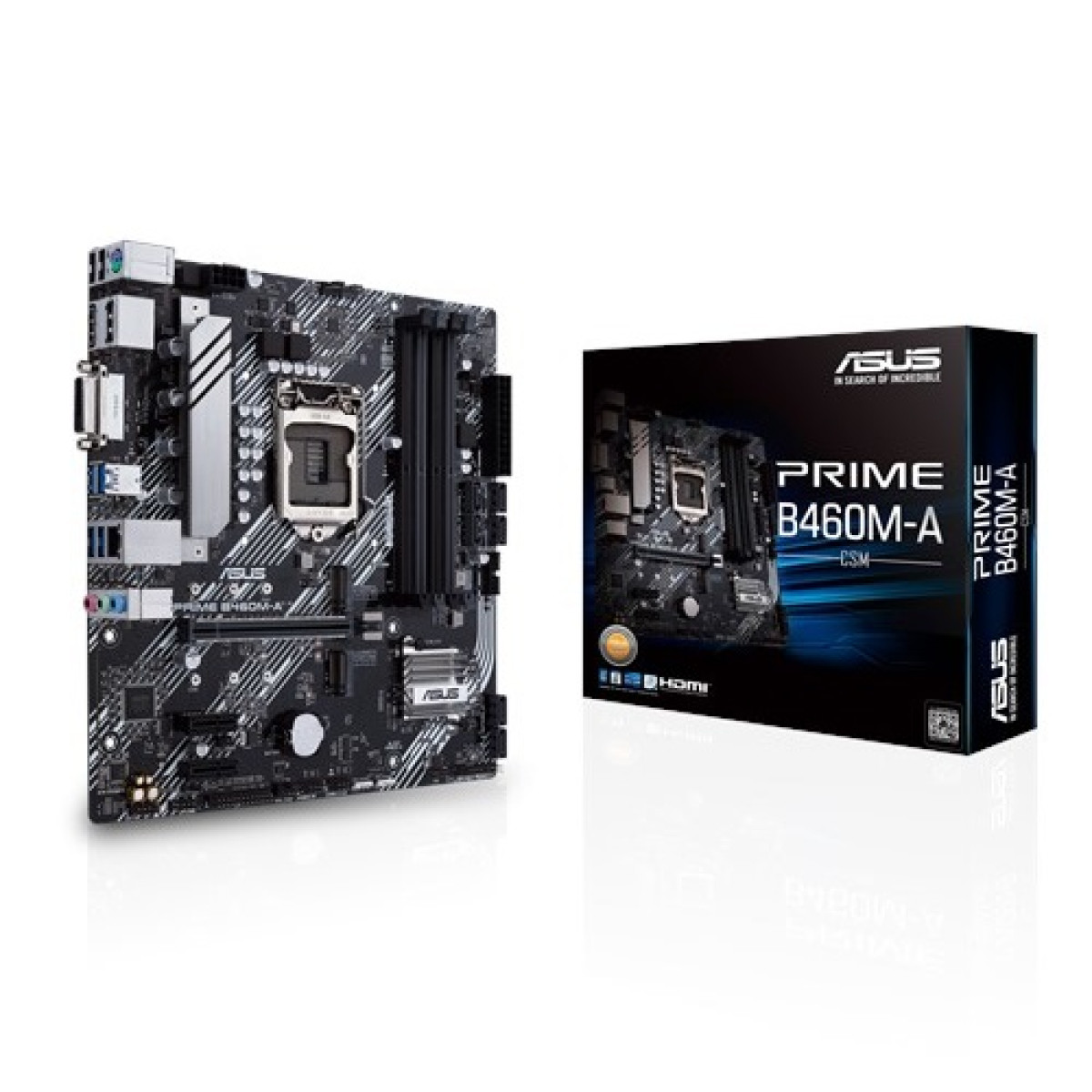

Asus Prime B460M-A Intel 10th Gen Micro-ATX Motherboard

0 reviews

Brand: Asus
Product Code: Asus Prime B460M-A
Availability: In Stock
Usually ships in 1–2 business days

In 30+ people's carts

৳10,600

Easy returns Official warranty Secure checkout Expert support

Key highlights

Form Factor: mATX Form Factor 9.6 inch x 9.2 inch ( 24.4 cm x 23.4 cm )
Supported CPU: Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset: Intel B460
Memory: 128GB
Slots: 4 x DIMM

Description

Upgrade Your PC with Asus Prime B460M-A Motherboard

Asus Prime B460M-A: Your Gateway to Powerful Performance

The Asus Prime B460M-A Intel 10th Gen Micro-ATX Motherboard is designed to elevate your computing experience with its advanced features and robust build quality. With support for Intel's 10th generation processors, this motherboard ensures exceptional performance for gaming, content creation, and everyday tasks. Equipped with multiple connectivity options, including USB 3.2 Gen 1 and HDMI, it allows for seamless integration with a variety of peripherals. The AI Overclocking technology assists users in optimizing their system performance effortlessly.

Moreover, the motherboard boasts an efficient thermal design with multiple fan headers and a comprehensive cooling solution, ensuring your system runs smoothly even under heavy loads. With support for up to 128GB of DDR4 RAM, you can multitask with ease and efficiency. The Asus Prime B460M-A also features enhanced audio capabilities, delivering high-quality sound for an immersive experience.

Micro-ATX Design for Compact and Powerful Builds

Specification

BASIC INFORMATION
Form Factor	mATX Form Factor 9.6 inch x 9.2 inch ( 24.4 cm x 23.4 cm )
Supported CPU	Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B460
Memory	128GB
Slots	4 x DIMM
Audio	Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports: Jack-detection, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Expansion Slots
M.2 Socket	1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
PCI	Intel 10th Gen Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) Intel B460 Chipset 2 x PCIe 3.0/2.0 x1
Graphics Specifications
Graphics	Integrated Graphics Processor- Intel® UHD Graphics support 1 x DisplayPort 1.4 1 x HDMI 1.4b 1 x DVI-D
Memory Specifications
Supported Memory	4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem
PORTS, CONNECTORS & SLOTS
Display Port (s)	1 x DisplayPort 1.4
DVI-D (s)	1 x DVI-D
HDMI	1 x HDMI 1.4b
LAN Port (s)	Realtek RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard
Supported Storage	Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel B460 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready
USB (s)	Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s) 4 x USB 2.0 port(s)
Internal I/O Connectors	1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AAFP connector 2 x Aura RGB Strip Header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 1 x LPT header 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x COM port header
Special
Special Feature	Software Features: ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update AI Charger ASUS CPU-Z DAEMON Tools Norton Anti-virus software(Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Special Features: ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS Safeslot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM ASUS Sync - Standard RGB header(s)
WARRANTY
Manufacturing Warranty	3 Years
