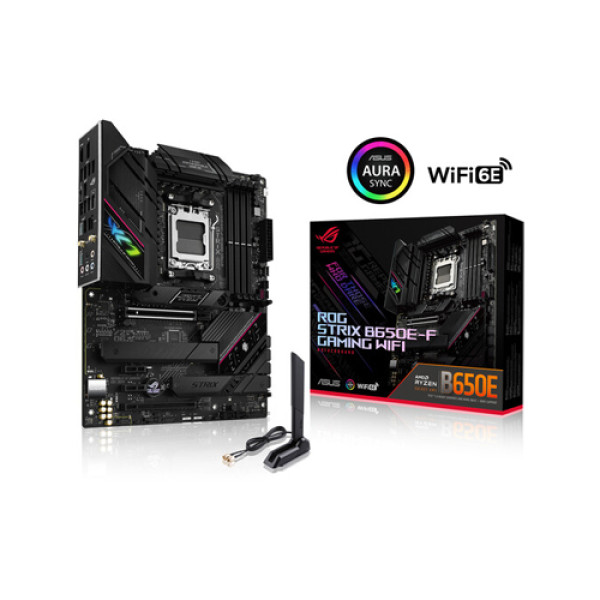

Asus ROG STRIX B650E-F GAMING WIFI DDR5 AM5 ATX Motherboard
Key highlights
- Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Graphics: 1 x DisplayPort 1 x HDMI port Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports max. 4K@60Hz as specified in HDMI 2.1.
- Raid controller: AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
- Supported CPU: AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
- Chipset: AMD B650
Description
Unlock Next-Level Gaming with Asus ROG STRIX B650E-F
Asus ROG STRIX B650E-F GAMING WIFI DDR5 AM5 ATX Motherboard: Elevate Your Gaming Experience
The Asus ROG STRIX B650E-F GAMING WIFI DDR5 AM5 ATX Motherboard is designed for gamers and enthusiasts who demand the best performance and reliability from their systems. This motherboard is equipped with the latest technologies, ensuring that it meets the needs of modern gaming and high-performance computing. With support for DDR5 memory, PCIe 5.0, and advanced cooling solutions, this motherboard is a powerhouse that will elevate your gaming experience to new heights.
Product Overview: The ROG STRIX B650E-F is built on the AM5 socket, which is tailored for the latest generation of AMD Ryzen processors. This compatibility allows users to harness the full potential of AMD’s cutting-edge technology, ensuring optimal performance for gaming, streaming, and content creation. The DDR5 memory support offers higher bandwidth and improved efficiency, making it perfect for multitasking and running demanding applications smoothly.
Benefits: One of the standout features of this motherboard is its robust power delivery system, which includes a 12+2 phase VRM design. This ensures stable power supply even during overclocking, which is crucial for competitive gaming. Additionally, the integrated Wi-Fi 6E capability provides ultra-fast wireless connectivity, enabling gamers to experience lag-free online gaming. The motherboard also features comprehensive cooling solutions with multiple fan headers and customizable RGB lighting, allowing users to create a visually stunning setup while maintaining optimal temperatures.
Use Cases: Whether you are a casual gamer, a competitive esports player, or a content creator, the Asus ROG STRIX B650E-F caters to a wide range of needs. Its high-speed connectivity options and support for the latest storage technologies like NVMe SSDs make it ideal for high-performance gaming rigs. Furthermore, the motherboard's compatibility with a variety of peripherals and expansion cards ensures that you can build a system that meets your specific requirements.
Why Customers Should Buy This Product: Investing in the Asus ROG STRIX B650E-F is a smart choice for anyone looking to build a future-proof gaming PC. With its advanced features, high-quality build, and exceptional performance metrics, this motherboard not only enhances gaming experiences but also provides longevity and reliability. Available at Unix Network in Jashore, Bangladesh, you can trust that you’re getting a product that is backed by excellent customer service and local support.
Explore Features of Asus ROG STRIX B650E-F Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Graphics | 1 x DisplayPort 1 x HDMI port Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports max. 4K@60Hz as specified in HDMI 2.1. |
| Raid controller | AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10 |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Slots | 4 x DIMM |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort |
| HDMI | 1x HDMI |
| Internal I/O Ports | Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers supports additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header 1 x COM_DEBUGheader Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel I225-V 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
| Supported Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD X670 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| USB (s) | Rear USB (Total 12 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 port (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers supports additional 4 USB 2.0 ports |
| Special | |
| Bundled Software | ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey |
