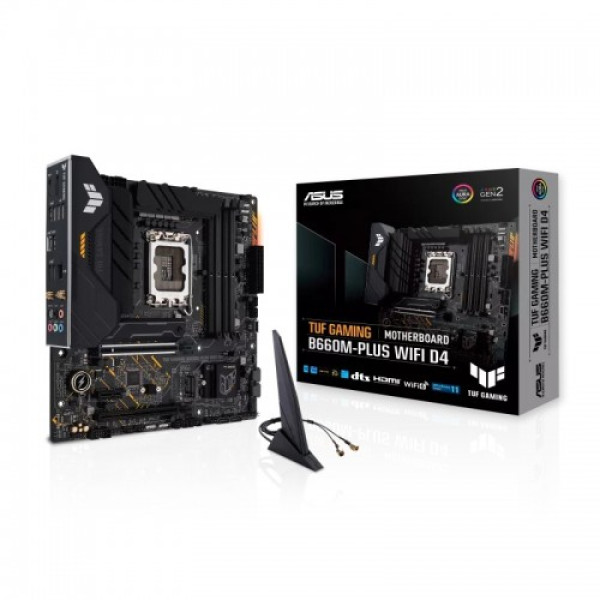

ASUS TUF GAMING B660M-PLUS WIFI D4 12th Gen mATX Motherboard
৳24,200
Key highlights
- Graphics: 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
- SpecialFeatures: ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers
- Type: DDR4
- PCI: Intel 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B660 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot
- HDMI: 1 x HDMI port
Description
Upgrade Your Gaming Setup with ASUS B660M-PLUS WIFI D4
Unleash Gaming Power with ASUS TUF GAMING B660M-PLUS WIFI D4
The ASUS TUF GAMING B660M-PLUS WIFI D4 is designed for gamers and PC enthusiasts who demand stability and performance. This mATX motherboard supports the latest 12th Gen Intel processors, offering exceptional speed and multitasking capabilities. With Wi-Fi 6 technology, you can experience lag-free online gaming and fast data transfer. The robust cooling solutions ensure that your system remains cool even during intense gaming sessions.
Featuring dual M.2 slots for lightning-fast SSDs and USB 3.2 Gen 2 ports for speedy peripheral connections, the ASUS TUF GAMING B660M-PLUS WIFI D4 is built for performance. Its military-grade components offer durability and longevity, making it a reliable choice for years to come. The customizable RGB lighting adds a personal touch to your build, allowing you to express your unique style.
Whether you are building a new gaming rig or upgrading your current setup, this motherboard provides the perfect foundation for high-performance gaming. With its comprehensive support for the latest gaming technologies, the ASUS TUF GAMING B660M-PLUS WIFI D4 is a powerhouse that will elevate your gaming experience.
High-Performance mATX Motherboard for Gamers
Specification
| BASIC INFORMATION | |
|---|---|
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
| SpecialFeatures | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers |
| Type | DDR4 |
| Expansion Slots | |
| PCI | Intel 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B660 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot |
| Interface | |
| HDMI | 1 x HDMI port |
| Memory Specifications | |
| Maximum Memory | Max. 128GB |
| Slots | 4 x DIMM |
| Supported Memory | 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| PORTS, CONNECTORS & SLOTS | |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| USB (s) | Rear USB:Total 8 ports Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 7 ports Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Wireless Communication module | Intel Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| Special | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
