Key highlights
- Graphics: 1 x DisplayPort 1 x HDMI port Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports max. 4K@60Hz as specified in HDMI 2.1.
- Raid controller: AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
- Supported CPU: AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
- Chipset: AMD X670
- Slots: 4 x DIMM
Description
High-Performance Gaming with Asus X670E-PLUS Motherboard

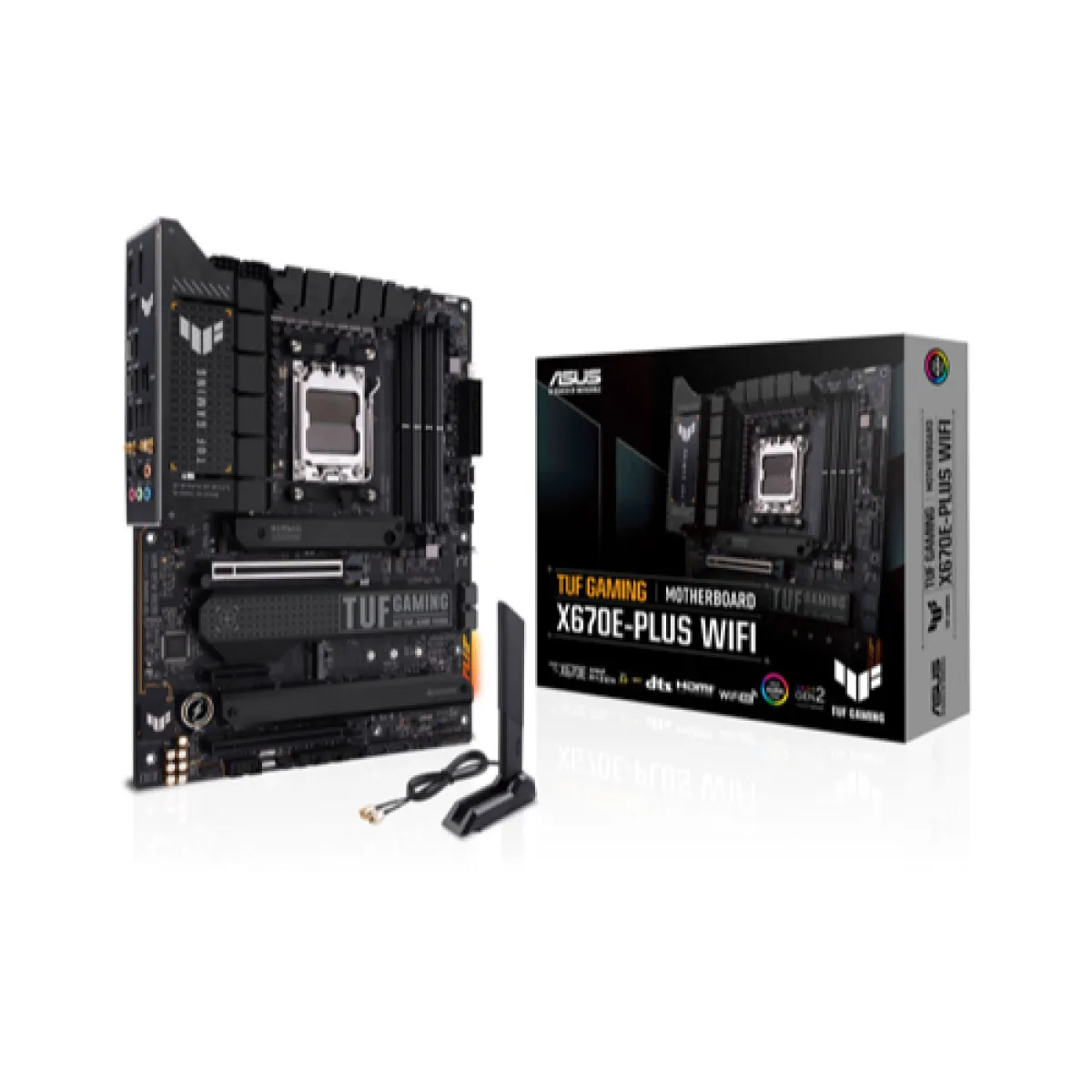

Asus TUF GAMING X670E-PLUS WIFI DDR5 AM5 ATX Motherboard Overview
The Asus TUF GAMING X670E-PLUS WIFI DDR5 AM5 ATX Motherboard is designed for gamers and PC enthusiasts looking for a robust and reliable foundation for their high-performance systems. Built on the latest AM5 platform, this motherboard supports the newest AMD Ryzen processors, enabling superior performance and efficiency for gaming, content creation, and multitasking. Equipped with cutting-edge technologies, this motherboard stands at the forefront of gaming innovation.
Key Benefits of the Asus TUF GAMING X670E-PLUS
One of the standout features of this motherboard is its support for DDR5 memory, which significantly enhances memory bandwidth and overall system performance. With a maximum capacity of up to 128GB, gamers and creators can experience seamless multitasking without any bottlenecks. Additionally, the TUF GAMING X670E-PLUS includes PCIe 5.0 slots, providing lightning-fast data transfer speeds for high-end GPUs and SSDs, ensuring that your system is future-proofed against the demands of next-generation gaming.
This motherboard also emphasizes durability and stability, characterized by its military-grade components and TUF protection technologies that ensure longevity and reliability even under heavy workloads. The incorporation of comprehensive cooling solutions, including multiple fan headers, M.2 heatsinks, and an improved VRM design, helps maintain optimal temperatures during intense gaming sessions.
Use Cases and Target Audience
Whether you are a competitive gamer looking for that extra edge, a content creator requiring a stable platform for rendering and video editing, or an enthusiast building a powerhouse gaming rig, the Asus TUF GAMING X670E-PLUS is the perfect choice. Its versatility and extensive connectivity options make it suitable for a wide range of applications, from high-performance gaming to everyday productivity.
Why You Should Buy This Product
Investing in the Asus TUF GAMING X670E-PLUS WIFI DDR5 AM5 ATX Motherboard means investing in a product that delivers unmatched performance, exceptional durability, and future-proof capabilities. With its robust feature set and competitive pricing, this motherboard offers excellent value for money in the Bangladeshi market, allowing you to build a reliable and powerful system without breaking the bank.
Upgrade Your Build with Asus TUF GAMING X670E-PLUS
Specification
| BASIC INFORMATION | |
|---|---|
| Graphics | 1 x DisplayPort 1 x HDMI port Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports max. 4K@60Hz as specified in HDMI 2.1. |
| Raid controller | AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10 |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD X670 |
| Slots | 4 x DIMM |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphones and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High-quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Type | DDR5 |
| Expansion Slots | |
| PCI | AMD Ryzen 7000 Series Desktop Processors -1 x PCIe 5.0 x16 slot AMD X670 Chipset -1 x PCIe 4.0 x16 slot (supports x4 mode) -1 x PCIe 4.0 x4 slots |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort |
| HDMI | 1x HDMI |
| Internal I/O Ports | Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C) 5 x USB 3.2 Gen 1 ports (5 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
| Supported Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD X670 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| USB (s) | Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C) 5 x USB 3.2 Gen 1 ports (5 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports |
| Wireless Communication module | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2 |
| Special | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - AURA Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - Easy Optimization - DIGI+ VRM - Turbo app - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
