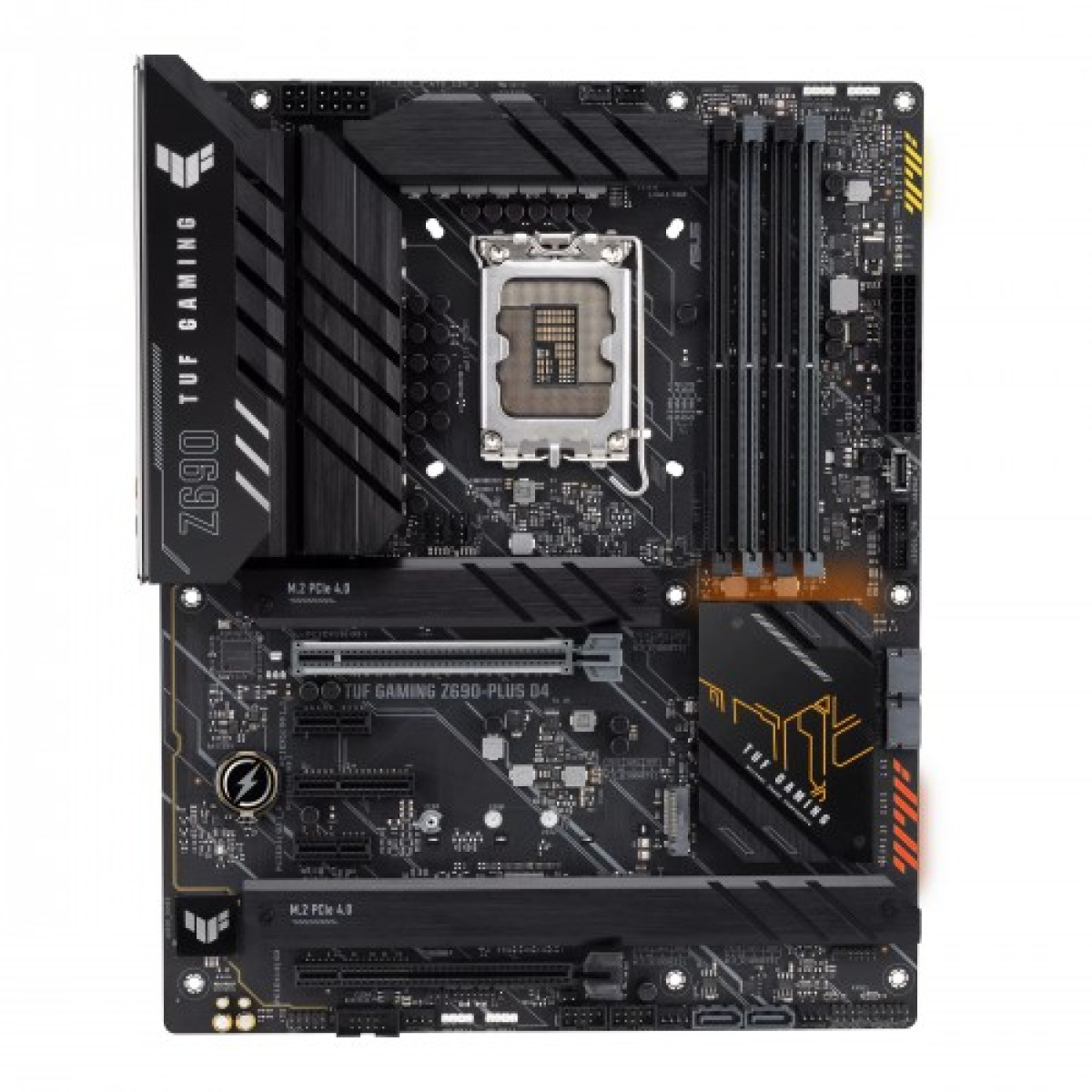

Asus TUF Gaming Z690-Plus D4 12th Gen ATX Motherboard
Key highlights
- Graphics: 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
- Chipset: Z690
- Slots: 4 x DIMM
- BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
- Type: DDR4
Description
Unlock Gaming Performance with Asus TUF Z690-Plus D4 Motherboard
Asus TUF Gaming Z690-Plus D4: Elevate Your Gaming Experience
The Asus TUF Gaming Z690-Plus D4 is a top-tier ATX motherboard that caters to the needs of serious gamers and PC enthusiasts alike. Designed for Intel's 12th generation processors, this motherboard offers an array of features that enhance performance, durability, and overall user experience. Built with military-grade components, the TUF Gaming Z690-Plus D4 ensures long-lasting reliability even under heavy gaming loads.
With support for dual-channel DDR4 memory up to 5333 MHz (OC), gamers can expect lightning-fast speeds and seamless multitasking capabilities. The motherboard also comes equipped with PCIe 5.0 slots, allowing for next-gen graphics cards and storage solutions. This feature opens up a world of possibilities for gamers looking to push their systems to the limit.
One of the standout benefits of the TUF Gaming Z690-Plus D4 is its advanced thermal management system. With multiple fan headers and dedicated heatsinks, this motherboard ensures that your components remain cool, even during intense gaming sessions. Additionally, the robust power delivery system guarantees stable performance, making it an excellent choice for overclocking enthusiasts.
Installation is a breeze with the user-friendly design and comprehensive manual provided. This motherboard also supports a variety of connectivity options, including USB 3.2 Gen 2 Type-C, making it ideal for connecting a wide range of peripherals. For gamers in Bangladesh, the local availability of high-quality components and accessories makes it easy to upgrade and customize your build.
Choosing the Asus TUF Gaming Z690-Plus D4 means investing in a motherboard that not only meets your immediate gaming needs but also provides a solid foundation for future upgrades. With its combination of performance, durability, and extensive features, this motherboard is a worthy addition to any gaming rig. Don't miss out on the opportunity to enhance your gaming experience with the TUF Gaming Z690-Plus D4!
Build Your Dream Gaming PC with Asus TUF Z690-Plus D4
Specification
| BASIC INFORMATION | |
|---|---|
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
| Chipset | Z690 |
| Slots | 4 x DIMM |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Type | DDR4 |
| Expansion Slots | |
| M.2 Socket | Supports 4 x M.2 slots |
| Memory Specifications | |
| Supported Memory | 5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x DisplayPort |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet TUF LANGuard |
| USB (s) | Rear USB:Total 8 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C) Front USB:Total 7 ports 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Special | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
