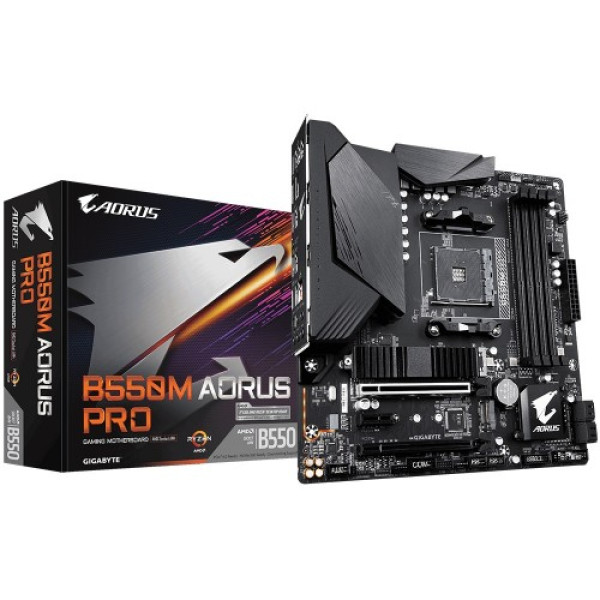

Gigabyte Aorus B550M Pro AMD 3rd Gen Micro ATX Motherboard
৳16,900
Key highlights
- Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
- Supported CPU: AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ New Generation AMD Ryzen with Radeon Graphics processors
- Chipset: AMD B550
- BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- M.2 Socket: 1 x M.2 connector (M2A_CPU), integrated into the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated into the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs
Description
Top Features of the Aorus B550M Pro for Gamers
Elevate Your Gaming Experience with the Gigabyte Aorus B550M Pro
The Gigabyte Aorus B550M Pro is a micro ATX motherboard designed for AMD's 3rd Gen Ryzen processors, making it the perfect choice for gamers and PC enthusiasts in Bangladesh. With its advanced thermal design and robust power delivery, this motherboard ensures high performance and stability during intense gaming sessions. The B550M Pro features PCIe 4.0 support, allowing for faster data transfer speeds and better graphics performance.
Its dual-channel DDR4 memory slots support up to 64GB of RAM, providing ample memory capacity for multitasking and resource-heavy applications. Additionally, with built-in RGB Fusion technology, you can customize the aesthetics of your build to match your unique style.
Equipped with multiple USB 3.2 Gen 2 ports and NVMe M.2 slots, the Aorus B550M Pro offers extensive connectivity options. This motherboard is not just about performance; it also boasts a user-friendly BIOS interface, making it easy for both beginners and experienced builders to navigate. Experience the ultimate blend of performance, style, and reliability with the Gigabyte Aorus B550M Pro motherboard.
Why Choose AMD 3rd Gen Micro ATX Motherboards?
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Supported CPU | AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ New Generation AMD Ryzen with Radeon Graphics processors |
| Chipset | AMD B550 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated into the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated into the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated into the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX4), integrated into the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated into the Chipset: Supporting PCIe 3.0 x1 mode |
| Graphics Specifications | |
| Max Shared Memory | 16 GB |
| Graphics | Integrated into the New Generation AMD Ryzen with Radeon Graphics processors: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz |
| Memory Specifications | |
| Maximum Size | support up to 128GB |
| Slots | 4 x DDR4 memory slots |
| Supported Memory | 3rd Gen AMD Ryzen Processors: Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules New Generation AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | Dual-Channel Architecture |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | Realtek ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Display Port (s) | 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit) |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated into the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated into the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated into the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
| USB (s) | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+1 USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 1 x Thunderbolt header |
| Special | |
| Bundled Software | Support for Windows 10 64-bit |
| Special Feature | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
