Key highlights
- Supported CPU: AMD Socket AM4, support for: AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
- Audio: Realtek ALC1200 codec High Definition Audio 2/ 4/ 5.1/ 7.1-channel Support for S/PDIF Out
- BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Type: DDR4
- Max Shared Memory: 16 GB
Description
High-Performance Gaming with GIGABYTE B550M Motherboard

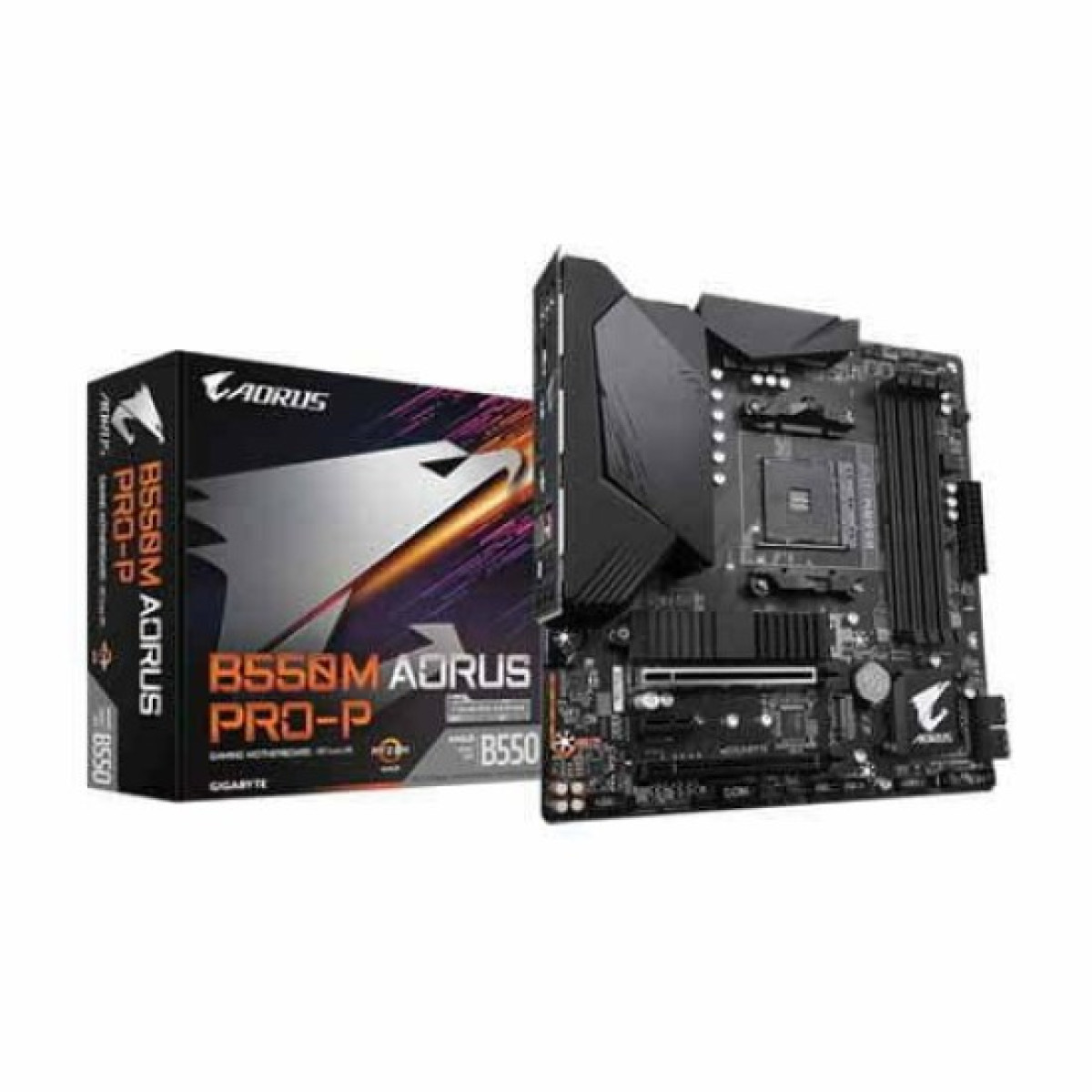

Introducing the GIGABYTE B550M AORUS PRO-P Micro-ATX AM4 Motherboard
The GIGABYTE B550M AORUS PRO-P is a cutting-edge motherboard designed to meet the needs of modern gamers and PC builders. Featuring the AM4 socket, it is compatible with AMD Ryzen processors, allowing for exceptional performance and efficiency. The Micro-ATX form factor makes it perfect for compact builds without compromising on features or performance.
Key Benefits:
This motherboard is engineered with advanced thermal design, including a robust heatsink and multi-phase power delivery, ensuring stable operation even during intense gaming sessions. The B550M AORUS PRO-P supports PCIe 4.0 technology, providing faster data transfer speeds for graphics cards and NVMe SSDs, which enhances gaming and overall system performance. The integrated Wi-Fi 6 support offers lightning-fast wireless connectivity, allowing for seamless online gaming and streaming.
Use Cases:
Whether you are a hardcore gamer, a professional content creator, or simply someone who demands high performance from their PC, this motherboard is built to cater to your needs. Its extensive connectivity options, including multiple USB 3.2 Gen 2 ports and HDMI output, ensure that it can handle a variety of peripherals and displays. In the context of Bangladesh, where gaming and content creation are on the rise, the GIGABYTE B550M AORUS PRO-P stands out as a premier choice for users looking to build a powerful, future-proof system.
Why Choose GIGABYTE B550M AORUS PRO-P?
Investing in the GIGABYTE B550M AORUS PRO-P means choosing quality and reliability. GIGABYTE is renowned for its high-performance components and innovative designs. This motherboard not only offers excellent value for money but also comes with a 3-year warranty, giving you peace of mind in your investment. With its combination of cutting-edge technology and robust build quality, it is an excellent choice for anyone looking to enhance their computing experience.
Upgrade Your Build with AORUS PRO-P Features
Specification
| BASIC INFORMATION | |
|---|---|
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors |
| Audio | Realtek ALC1200 codec High Definition Audio 2/ 4/ 5.1/ 7.1-channel Support for S/PDIF Out |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Type | DDR4 |
| Graphics Specifications | |
| Max Shared Memory | 16 GB |
| Memory Specifications | |
| Maximum Memory | Up to 128 GB (32 GB single DIMM capacity) |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Thunderbolt add-in card connector 1 x Clear CMOS jumper |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| USB (s) | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+1 USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
