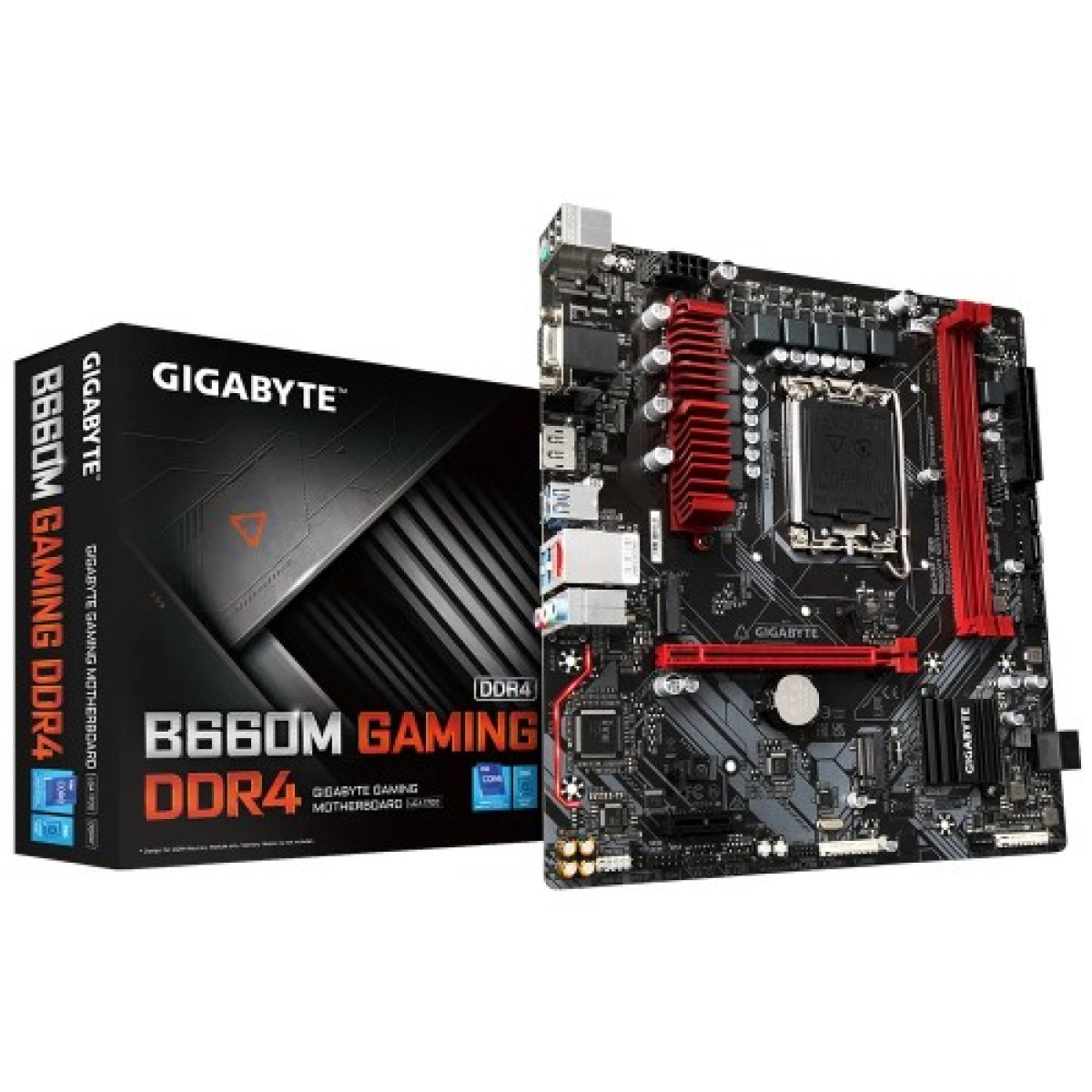

GIGABYTE B660M Gaming DDR4 Motherboard for Ultimate Performance
Key highlights
- Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
- Audio: Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out
- BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- M.2 Socket: CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready
- Slots: 2 x DIMM
Description
Upgrade Your Gaming Setup with GIGABYTE B660M Motherboard
Elevate Your Gaming Experience with the GIGABYTE B660M Gaming DDR4 Motherboard
Step into the future of gaming with the GIGABYTE B660M Gaming DDR4 Micro ATX Motherboard, designed for the 12th Gen Intel processors. This powerful motherboard offers remarkable performance and exceptional features that cater to serious gamers and tech enthusiasts alike. With support for DDR4 memory, it provides faster data processing and superior gaming experiences. Equipped with PCIe 4.0 slots, you can enhance your system with the latest graphics cards and SSDs, ensuring you stay ahead in the competitive gaming landscape.
Built for durability, the B660M Gaming motherboard features high-quality capacitors and a robust PCB design, ensuring long-lasting performance even under heavy loads. The advanced thermal design keeps your system cool during intense gaming sessions, while customizable RGB lighting adds a personal touch to your rig. With multiple connectivity options, including USB 3.2 and HDMI, you're fully equipped for all your peripherals and multimedia needs.
Choose the GIGABYTE B660M Gaming DDR4 motherboard for a reliable, high-performance foundation for your next build, and enjoy a seamless gaming experience that will elevate your skills to the next level.
12th Gen Micro ATX Motherboard for Gamers in Jashore
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready |
| Memory Specifications | |
| Slots | 2 x DIMM |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub port |
| Display Port (s) | 1 x DisplayPort |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready System acceleration with Intel® Optane Memory can only be enabled on the M.2 connectors supported by the Chipset. |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
