Key highlights
- Form Factor: Micro ATX Form Factor: 22.6cm x 18.5cm
- Supported CPU: Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
- Chipset: Intel H410 Express Chipset
- Memory: 64GB (32 GB single DIMM capacity)
- Slots: 2 x DIMM
Description
Affordable Micro ATX Motherboard for Gaming and More

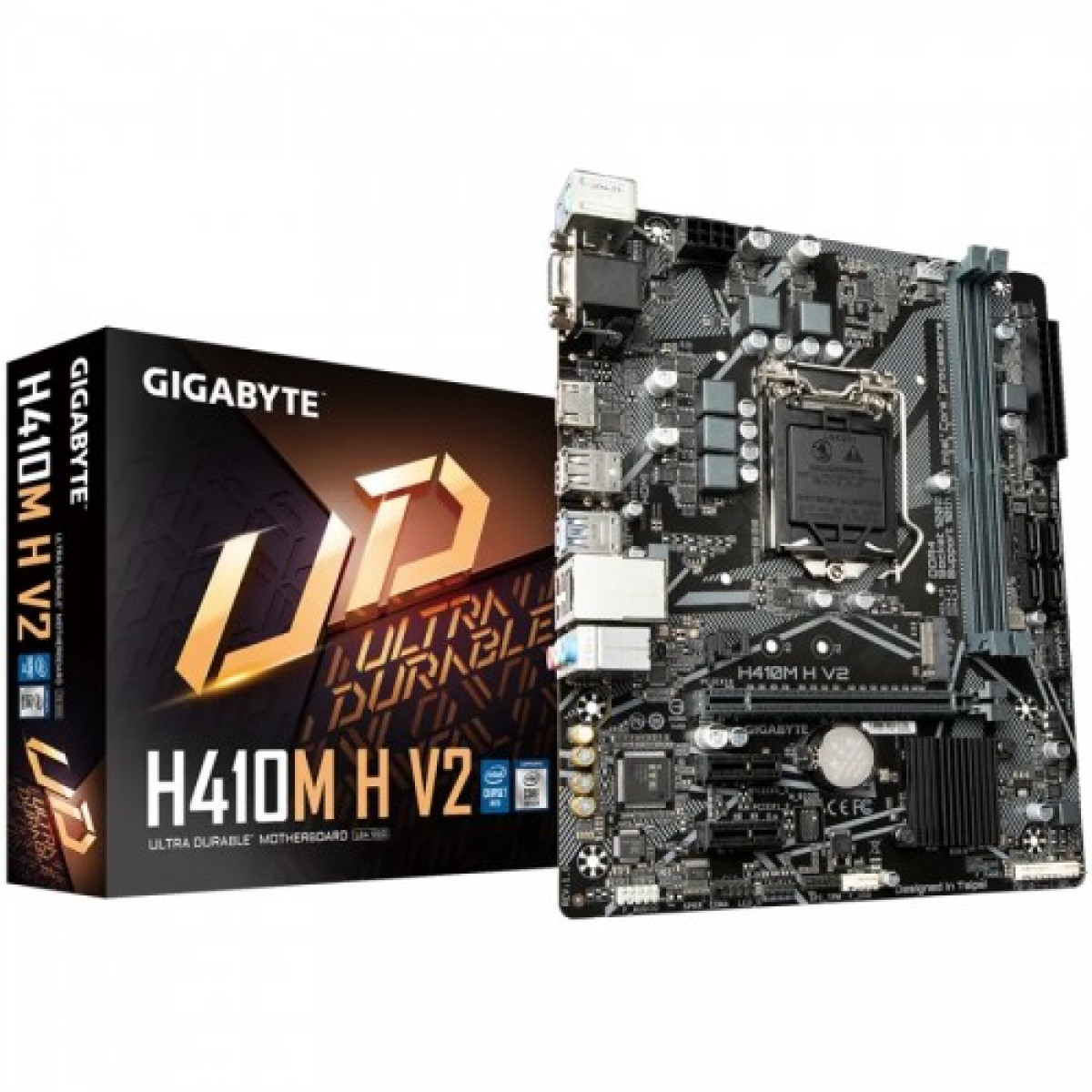

Gigabyte H410M H V2 Motherboard Overview
The Gigabyte H410M H V2 is a robust Micro ATX motherboard designed to support both 10th and 11th Gen Intel processors. This motherboard is ideal for users looking to build a reliable and efficient system, perfect for both gaming and productivity tasks. With its advanced Smart Fan 5 technology, users can ensure optimal cooling, while the durable build quality guarantees longevity.
Equipped with dual-channel DDR4 memory support, the H410M H V2 allows for faster data processing and enhanced multitasking capabilities. The motherboard also features multiple connectivity options, including USB 3.2 Gen 1 ports and HDMI output, ensuring seamless integration with modern devices.
Whether you're a gamer, a content creator, or just need a reliable home office setup, the Gigabyte H410M H V2 is the perfect choice. Its affordability combined with high performance makes it an excellent value for Bangladeshi customers looking to upgrade their systems.
Upgrade Your PC with Gigabyte H410M H V2 Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor: 22.6cm x 18.5cm |
| Supported CPU | Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package |
| Chipset | Intel H410 Express Chipset |
| Memory | 64GB (32 GB single DIMM capacity) |
| Slots | 2 x DIMM |
| Audio | Realtek Audio CODEC High Definition Audio 2/ 4/ 5.1/ 7.1-channel |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/ x2 SSD support) |
| PCI | 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots |
| Graphics Specifications | |
| Max Shared Memory | 512MB |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz 1 x HDMI ports, supporting a maximum resolution of 4096 x 2160 @30 Hz |
| Memory Specifications | |
| Supported Memory | Intel Core i5/ i3/ Pentium/ Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz |
| HDMI | 1 x HDMI ports, supporting a maximum resolution of 4096 x 2160 @30 Hz |
| LAN Port (s) | Intel GbE LAN chip (1 Gbit/100 Mbit) |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe x4/ x2 SSD support) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready |
| USB (s) | 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/ 1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper |
| Special | |
| Special Feature | Support for APP Center @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| WARRANTY | |
| Manufacturing Warranty | 03 Years |
