Key highlights
- Audio Features: 3 x audio jacks
- Supported CPU: LGA1700 socket: Support for 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
- Chipset: Intel H610 Express Chipset
- Slots: 2 x DDR DIMM sockets
- Audio: Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Description
Affordable and Reliable Micro ATX Motherboard for Gamers

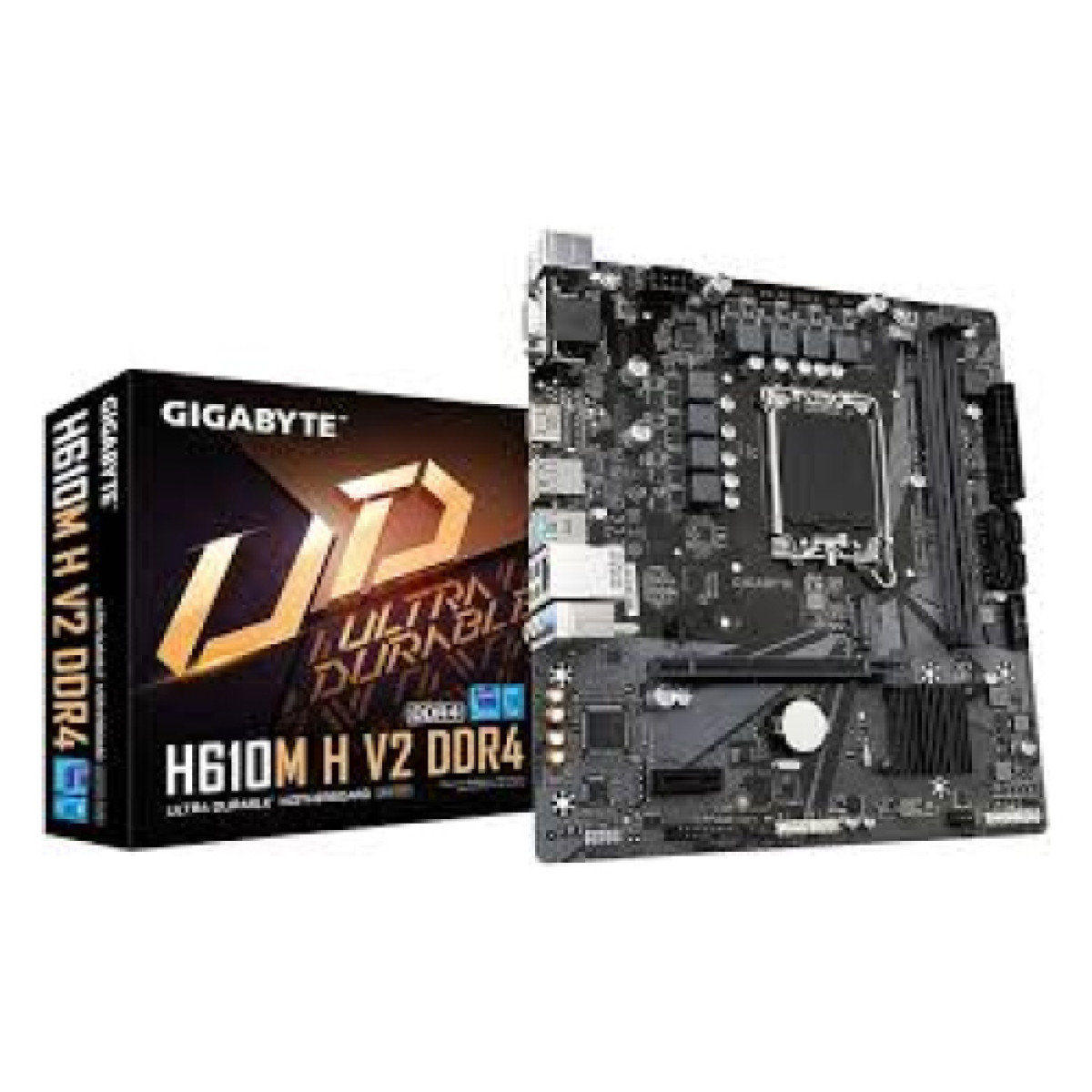

Introducing the GIGABYTE H610M H V2 DDR4 Micro ATX Motherboard
The GIGABYTE H610M H V2 DDR4 Micro ATX Motherboard is engineered to deliver exceptional performance, reliability, and versatility for a wide range of computing needs. Perfectly suited for both casual users and gamers alike, this motherboard offers an array of features that cater to the demands of modern computing. With its compact Micro ATX form factor, it fits seamlessly into smaller cases while providing ample expansion options.
Benefits of the GIGABYTE H610M H V2
One of the standout features of this motherboard is its support for the latest 12th Gen Intel processors, ensuring that users benefit from enhanced speed and efficiency. The DDR4 memory support allows for higher bandwidth and faster data transfer rates, which is crucial for gaming and professional applications. Additionally, with multiple PCIe slots, users can easily upgrade their systems by adding graphics cards, SSDs, and other peripherals.
Use Cases and Versatility
Whether you are a gamer looking to build a high-performance rig, a creative professional in need of a reliable workstation, or a casual user wanting a dependable system for everyday tasks, the GIGABYTE H610M H V2 is designed to meet your needs. From multimedia editing to gaming and general productivity, this motherboard is built to handle it all.
Why Choose GIGABYTE H610M H V2?
In a market flooded with options, the GIGABYTE H610M H V2 stands out due to its build quality and feature set. Its robust power delivery system ensures stable performance even under heavy loads. Moreover, the motherboard is equipped with advanced thermal solutions that keep your system cool during intense gaming sessions or demanding applications. With GIGABYTE’s solid reputation for durability, you can trust this motherboard to provide reliable performance for years to come.
Enhance Your Build with GIGABYTE H610M H V2 Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Audio Features | 3 x audio jacks |
| Supported CPU | LGA1700 socket: Support for 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
| Chipset | Intel H610 Express Chipset |
| Slots | 2 x DDR DIMM sockets |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports |
| Memory Specifications | |
| Maximum Memory | Up to 64 GB (32 GB single DIMM capacity) of system memory |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub port |
| HDMI | 1 x HDMI 2.0 port |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper |
| LAN Port (s) | Intel GbE LAN chip (1 Gbps/100 Mbps) |
| Supported Storage | Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Special Feature | Support for APP Center * * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
