Key highlights
- Form Factor: ATX Form Factor; 30.5cm x 24.4cm
- Graphics: Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR.
- SpecialFeatures: Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
- Supported CPU: AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series/ AMD Ryzen 3000 Series/ AMD Ryzen 3000 G-Series/ AMD Ryzen 2000 Series/ AMD Ryzen 2000 G-Series Processors (Please refer "CPU Support List" for more information.)
- Chipset: AMD X570
Description
Top Features of GIGABYTE X570S AORUS ELITE AX Motherboard

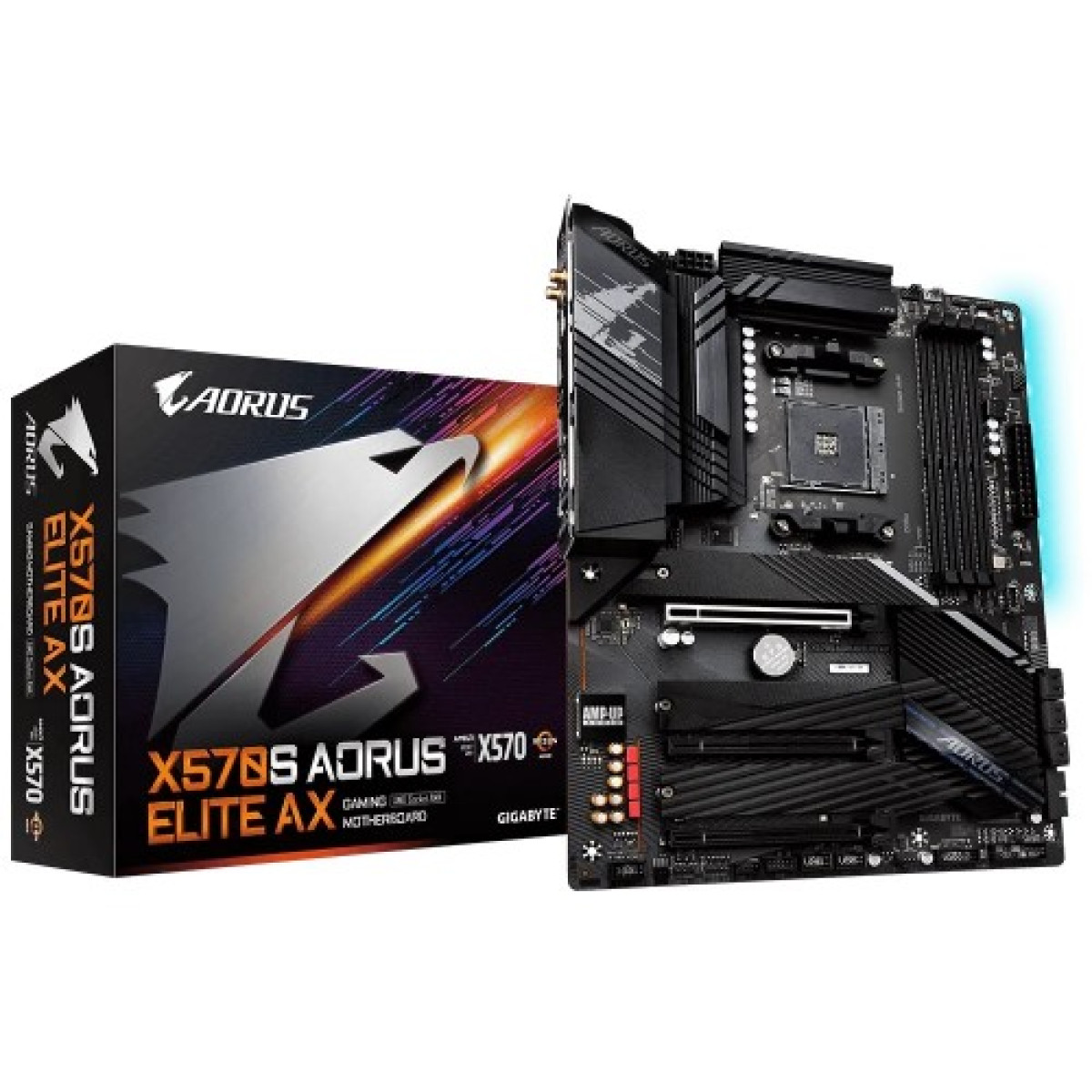

GIGABYTE X570S AORUS ELITE AX AMD Motherboard - A Gateway to Unmatched Performance
The GIGABYTE X570S AORUS ELITE AX AMD Motherboard is engineered to provide exceptional performance for gamers, content creators, and tech enthusiasts alike. With its advanced features and cutting-edge technology, this motherboard stands as a testament to GIGABYTE's commitment to quality and innovation. Built on the AMD X570 chipset, it supports the latest Ryzen processors, enabling users to leverage the full power of their CPUs for both gaming and productivity tasks.
This motherboard offers a comprehensive thermal design with a robust heatsink solution, ensuring optimal performance even under heavy loads. The innovative thermal solution includes multiple heat pipes and a large aluminum heatsink that dissipates heat efficiently, keeping your system cool during intense gaming sessions. The inclusion of advanced fan control allows users to customize their cooling solutions, maintaining a balance between performance and temperature management.
One of the standout features of the GIGABYTE X570S AORUS ELITE AX is its support for PCIe 4.0, which offers double the bandwidth of PCIe 3.0. This ensures that users can enjoy lightning-fast data transfer speeds, enhancing overall system performance and responsiveness. Whether you're loading large game files or transferring heavy multimedia content, the PCIe 4.0 support guarantees a smooth experience.
Additionally, the motherboard includes Wi-Fi 6 (802.11ax) for ultra-fast wireless connectivity, making it perfect for users who prefer a cable-free setup. The built-in Bluetooth 5.0 also enhances connectivity options, allowing users to connect to a variety of peripherals without the clutter of wires.
This motherboard is not just about performance; it also offers a stunning AORUS design with customizable RGB lighting. Users can personalize their build and create a unique aesthetic that reflects their style. The RGB Fusion software allows for synchronized lighting effects across compatible devices, enhancing the gaming atmosphere.
In terms of connectivity, the GIGABYTE X570S AORUS ELITE AX provides multiple USB ports, including USB 3.2 Gen 2 Type-C, ensuring compatibility with a wide range of devices. The motherboard’s SATA and M.2 slots offer ample storage options, supporting high-speed SSDs for rapid data access.
Investing in the GIGABYTE X570S AORUS ELITE AX AMD Motherboard means choosing a reliable and future-proof foundation for your PC build. With its premium features and robust performance, it is an ideal choice for anyone looking to elevate their computing experience.
Why Choose the GIGABYTE X570S AORUS ELITE AX for Gaming
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Graphics | Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
| SpecialFeatures | Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series/ AMD Ryzen 3000 Series/ AMD Ryzen 3000 G-Series/ AMD Ryzen 2000 Series/ AMD Ryzen 2000 G-Series Processors (Please refer "CPU Support List" for more information.) |
| Chipset | AMD X570 |
| Slots | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| Audio | Realtek ALC1220-VB codec (The back panel line out jack supports DSD audio.) High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280/22110 SSDs: AMD Ryzen 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 2 x M.2 connectors (M2B_SB/M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2260/2280/22110 SSDs: Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs 6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. (Note) For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only. |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| PORTS, CONNECTORS & SLOTS | |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Thunderbolt add-in card connector 1 x Clear CMOS jumper I/O Controller: iTE I/O Controller Chip |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280/22110 SSDs: AMD Ryzen 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 2 x M.2 connectors (M2B_SB/M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2260/2280/22110 SSDs: Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs 6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. (Note) For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only. |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| USB (s) | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+ASMedia USB 3.2 Gen 2x2 Controller: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Wireless Communication module | AMD Wi-Fi 6E RZ608 (MT7921K) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate (Actual data rate may vary depending on environment and equipment.) |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) Realtek 8125 Gaming LAN Bandwidth Control Utility |
| WARRANTY | |
| Manufacturing Warranty | 03 years |
