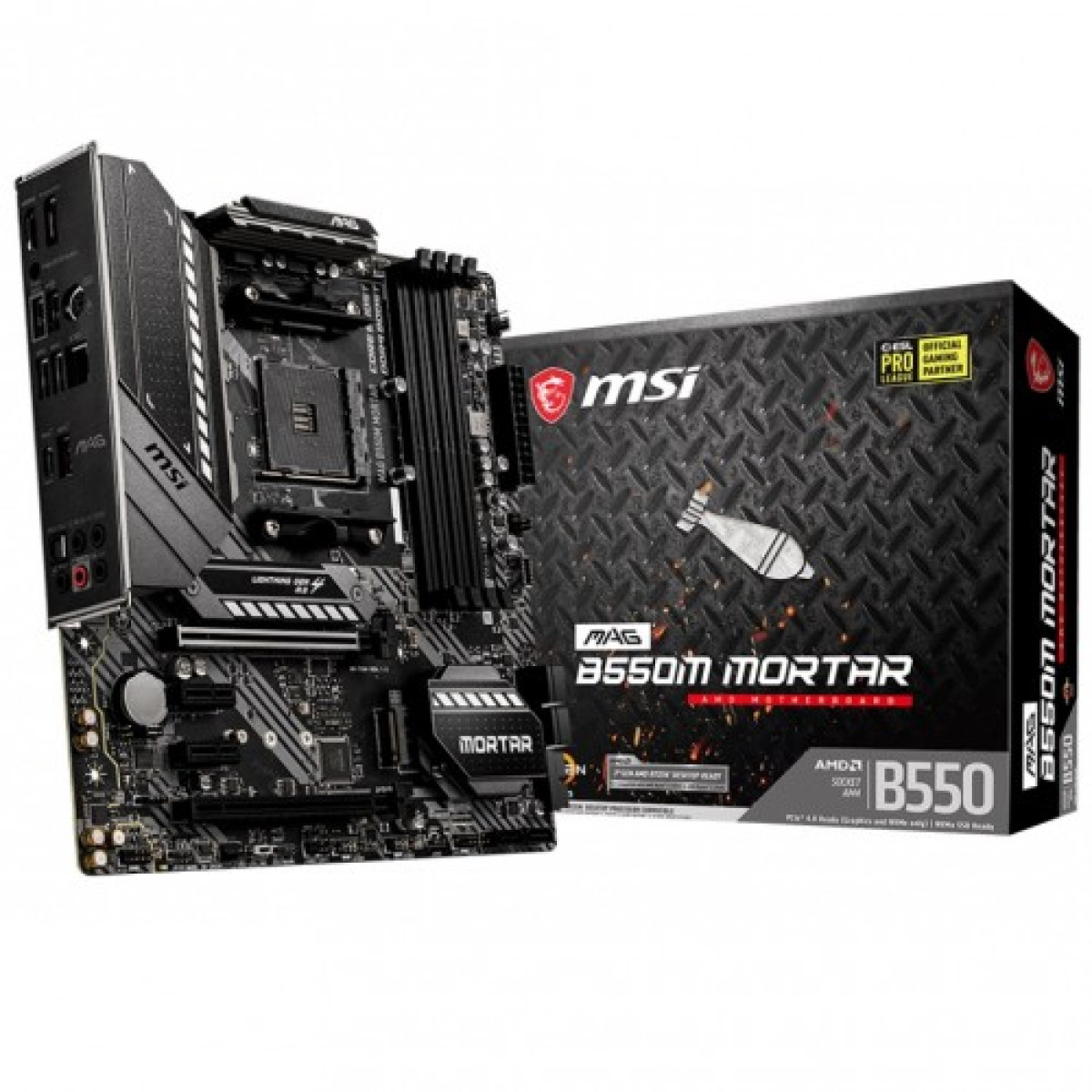

MSI MAG B550M Mortar AMD Micro ATX Gaming Motherboard (Global)
Key highlights
- Form Factor: Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
- Graphics: 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz Supports 2-Way AMD CrossFire Technology
- Supported CPU: AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
- Slots: 4 x DDR4 memory slots
- Audio: Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Description
Top Features of MSI MAG B550M Mortar Motherboard
MSI MAG B550M Mortar: Ultimate Gaming Experience
The MSI MAG B550M Mortar is an exceptional AMD Micro ATX gaming motherboard designed for gamers and PC builders who demand high performance and reliability. With its robust features and advanced technology, this motherboard is engineered to support the latest AMD Ryzen processors, offering a platform that can harness the full potential of your gaming rig. This motherboard stands out with its premium build quality and innovative features, making it a top choice for serious gamers and content creators alike.
One of the key benefits of the MSI MAG B550M Mortar is its dual PCIe 4.0 slots. This allows users to take advantage of the next generation of graphics cards and NVMe SSDs, significantly boosting data transfer speeds and overall system performance. The motherboard’s support for DDR4 memory with speeds up to 4400 MHz (OC) ensures that your memory-intensive applications and games run smoothly, providing an edge in competitive gaming.
The Steel Armor PCIe slots provide enhanced protection for your graphics card against bending and electrical interference, ensuring longevity and stability. Moreover, the motherboard comes equipped with Audio Boost technology, delivering high-quality audio output that enhances your gaming experience, whether you're listening to in-game sounds or communicating with teammates.
Installation is straightforward, with MSI’s user-friendly BIOS and clear labeling on the motherboard. The MSI MAG B550M Mortar is also optimized for cooling, featuring multiple fan headers and a dedicated M.2 Shield Frozr to keep your components running at optimal temperatures during intense gaming sessions.
For gamers in Bangladesh, this motherboard offers incredible value with its competitive pricing and availability through local retailers like Unix Network. Users can easily find support and replacement parts, ensuring a hassle-free experience. This motherboard is not just a component; it’s an investment in performance, durability, and a premium gaming experience.
Why Choose MSI MAG B550M Mortar?
With its combination of advanced features, robust build quality, and compatibility with AMD’s latest technology, the MSI MAG B550M Mortar is an ideal choice for anyone looking to build a powerful gaming PC. Whether you are a casual gamer or a hardcore enthusiast, this motherboard will meet your needs and exceed your expectations.
Experience Ultimate Gaming with MSI B550M Mortar
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Graphics | 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz Supports 2-Way AMD CrossFire Technology |
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors |
| Slots | 4 x DDR4 memory slots |
| Audio | Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Type | Dual channel memory architecture |
| Expansion Slots | |
| PCI | 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode 2x PCIe 3.0 x1 slots |
| Memory Specifications | |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort maximum resolution of 4096x2160 @60Hz |
| HDMI | 1x HDMI maximum resolution of 4096x2160 @24Hz |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper |
| Supported Storage | AMD B550 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
| TPM (Trusted Platform Module ) | 1xTPM module connector |
| USB (s) | AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
