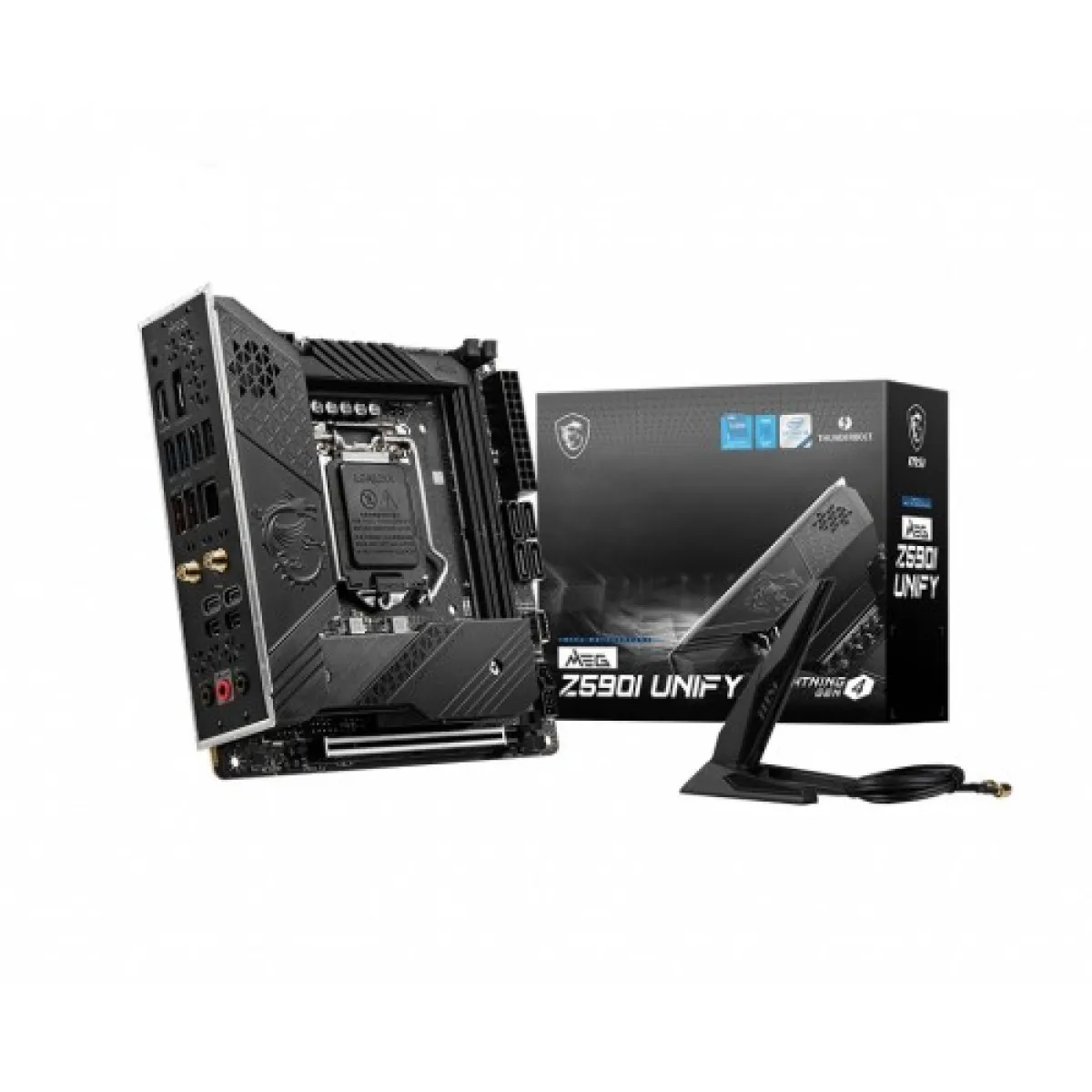

MSI MEG Z590I Unify Gaming 10th Gen and 11th Gen Mini-ITX Motherboard
Key highlights
- Form Factor: Mini-ITX Form Factor
- Others: 1xTPM module connector
- Supported CPU: Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron processors Processor socket LGA1200
- Chipset: Intel Z590 Chipset
- Audio: 7.1-Channel High Definition Audio
Description
MSI MEG Z590I Unify Mini-ITX Motherboard for Gaming
Elevate Your Gaming Experience with MSI MEG Z590I Unify
The MSI MEG Z590I Unify Gaming Motherboard is a powerhouse designed for the latest 10th and 11th Gen Intel processors. With its Mini-ITX form factor, it fits perfectly in compact builds without sacrificing performance. Featuring advanced thermal design, heat dissipation technologies ensure your system stays cool during intense gaming sessions.
Equipped with support for DDR4 memory up to 64GB, this motherboard enhances your multitasking capabilities, allowing seamless gaming and streaming. The Lightning Gen 4 M.2 slots deliver lightning-fast data transfer speeds, while the Intel Wi-Fi 6 connectivity ensures a lag-free online experience.
With an impressive audio boost powered by Audio Boost technology, you will enjoy immersive sound quality, making your gaming sessions more enjoyable. Plus, the customizable Mystic Light feature allows you to personalize your rig's aesthetics.
Upgrade Your Gaming with MSI Z590I Unify Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Mini-ITX Form Factor |
| Others | 1xTPM module connector |
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron processors Processor socket LGA1200 |
| Chipset | Intel Z590 Chipset |
| Audio | 7.1-Channel High Definition Audio |
| Supported Technologies | 4x SATA 6Gb/s ports (from Z590 chipset) 2x M.2 slots (Key M) M2_1 slot Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From Z590 chipset) Supports 2280 storage devices M2_2 slot (from Z590 chipset) Supports PCIe 3.0 x4 only Supports 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors |
| Expansion Slots | |
| M.2 Socket | 2x M.2 slots (Key M) |
| PCI | 1x PCIe x16 slot Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 11th Gen Intel CPU |
| Graphics Specifications | |
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| Memory Specifications | |
| Maximum Memory | support up to 64GB |
| Slots | 2x DDR4 memory slots |
| Supported Memory | Supports 1R 2133/2666/2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile [XMP] |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | 1x Front panel audio connector |
| LAN Port (s) | 1x Inte I225-V 2.5Gbps LAN controller |
| USB (s) | 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector) 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors) 4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors) |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots [M-Key] 1x USB 3.2 Gen2 10Gbps Type-C port 1x USB 3.2 Gen1 5Gbps connector [supports additional 2 USB 3.2 Gen1 5Gbps ports] 1x USB 2.0 connector [supports additional 2 USB 2.0 ports] 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
