R&M R195718 CAT6A U/UTP 4P 500MHz 23AWG LSZH Gray 305m Installation Cable
Key highlights
- Application: Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3an: 10Base-T; 100Base-TX; 1000Base-T; 10GBase-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM IEEE 802.3af-2002: POE; IEEE 802.3at: POE+
- Cable Lay-Up: 4 paires to the core with cross separator
- Conductor: Bare solid copper wire AWG23
- Fire Rating: LSZH IEC 60332-1; IEC 60754-2; IEC 61034
- Insulation: Polyethylene ≤ Ø 1.22 mm
Description

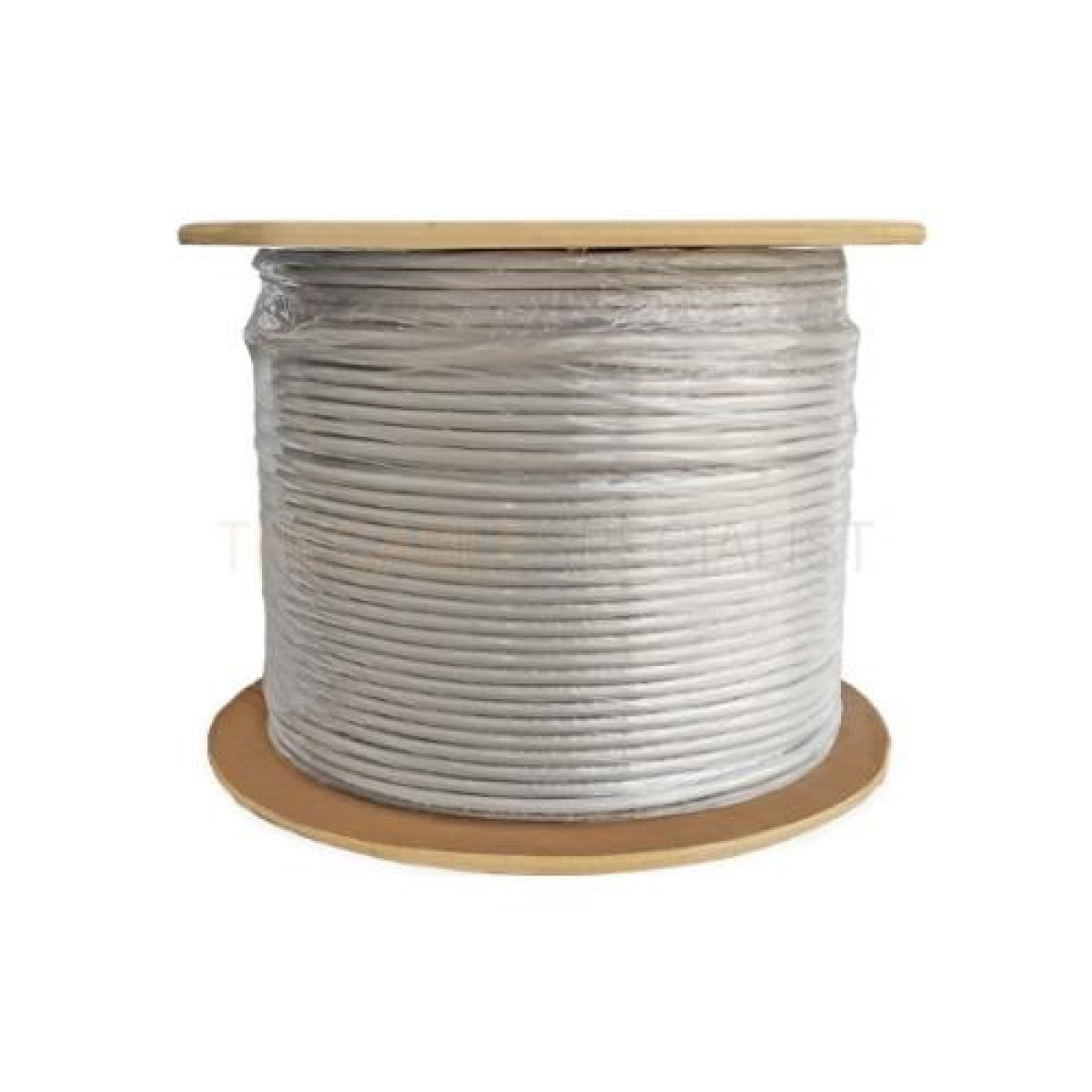

R&M R195718 CAT6A U/UTP 4P 500MHz 23AWG LSZH Gray 305m Installation Cable
The R&M R195718 CAT6A U/UTP 4P 500MHz 23AWG LSZH Gray 305m Cable comes with Bare solid copper wire AWG23. It has a Polyethylene ≤ Ø 1.22 mm Insulation. It offers twisting of 2 wires to the pair. The R&M R195718 CAT6A U/UTP 4P 500MHz 23AWG LSZH Gray 305m Cable comes with 4 pairs to the core with a cross separator. It does not have a pair screen and overall screen. The sheath of the LSZ cable is gray. The R&M R195718 CAT6A U/UTP 4P 500MHz LSZH Gray Cable comes with no warranty.Are you tired of slow and unreliable internet connections? Look no further than the R&M R195718 CAT6A U/UTP 4P 500MHz 23AWG LSZH Gray 305m Installation Cable. Designed for the modern computer user and student, this high-quality cable offers unrivaled performance and lightning-fast speeds to take your online experience to the next level.
With its CAT6A U/UTP construction, this cable is built to handle data transfer rates of up to 500MHz, making it ideal for demanding tasks such as streaming HD videos, online gaming, and large file downloads. The 23AWG wire gauge ensures optimal conductivity and signal integrity, while the LSZH (Low Smoke Zero Halogen) jacket provides added protection and safety in case of fire.
Whether you're connecting your computer to a router, modem, or switch, the R&M R195718 CAT6A cable delivers a reliable and stable connection every time. Say goodbye to buffering and lag with this high-performance cable that is designed to meet the needs of even the most demanding users.
Not only does this cable offer superior speed and performance, but it also boasts excellent build quality and durability. The 305m length ensures that you have more than enough cable to reach even the most hard-to-reach devices, while the gray color blends seamlessly with any environment.
Upgrade your home or office network with the R&M R195718 CAT6A U/UTP 4P 500MHz 23AWG LSZH Gray 305m Installation Cable and experience the difference that quality and performance can make. Don't settle for subpar connections any longer – invest in the best with this top-of-the-line installation cable from Unix Network in Jashore, Bangladesh.
R&M R195718 CAT6A U/UTP 4P 500MHz 23AWG LSZH Gray 305m Installation Cable
Specification
| BASIC INFORMATION | |
|---|---|
| Application | Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3an: 10Base-T; 100Base-TX; 1000Base-T; 10GBase-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM IEEE 802.3af-2002: POE; IEEE 802.3at: POE+ |
| Cable Lay-Up | 4 paires to the core with cross separator |
| Conductor | Bare solid copper wire AWG23 |
| Fire Rating | LSZH IEC 60332-1; IEC 60754-2; IEC 61034 |
| Insulation | Polyethylene ≤ Ø 1.22 mm |
| Overall Screen | Non |
| Pair Screen | Non |
| Sheath | LSZH, gray |
| Standards | ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; EN 50288-6-1 |
| Twisting | 2 wires to the pair |
| PHYSICAL SPECIFICATION | |
| Weight | 58 kg / km |
| Technical Specification | |
| Bending Radius | ≥ 35 mm during operation (without load) ≥ 55 mm during installation (with load) |
| Cable Designation | Cat6A U/UTP |
| Outer Diameter | Nominal 7.0 +/- 0.8 mm |
| Packaging | Box 305 m |
| Pulling Pressure | 1090 MJ / km |
| Segregation Class | B |
| Temperature ange | During operation: -20°C…+ 60°C During installation: 0°C…+ 50°C |
| Tensile Strength | 100 N |
