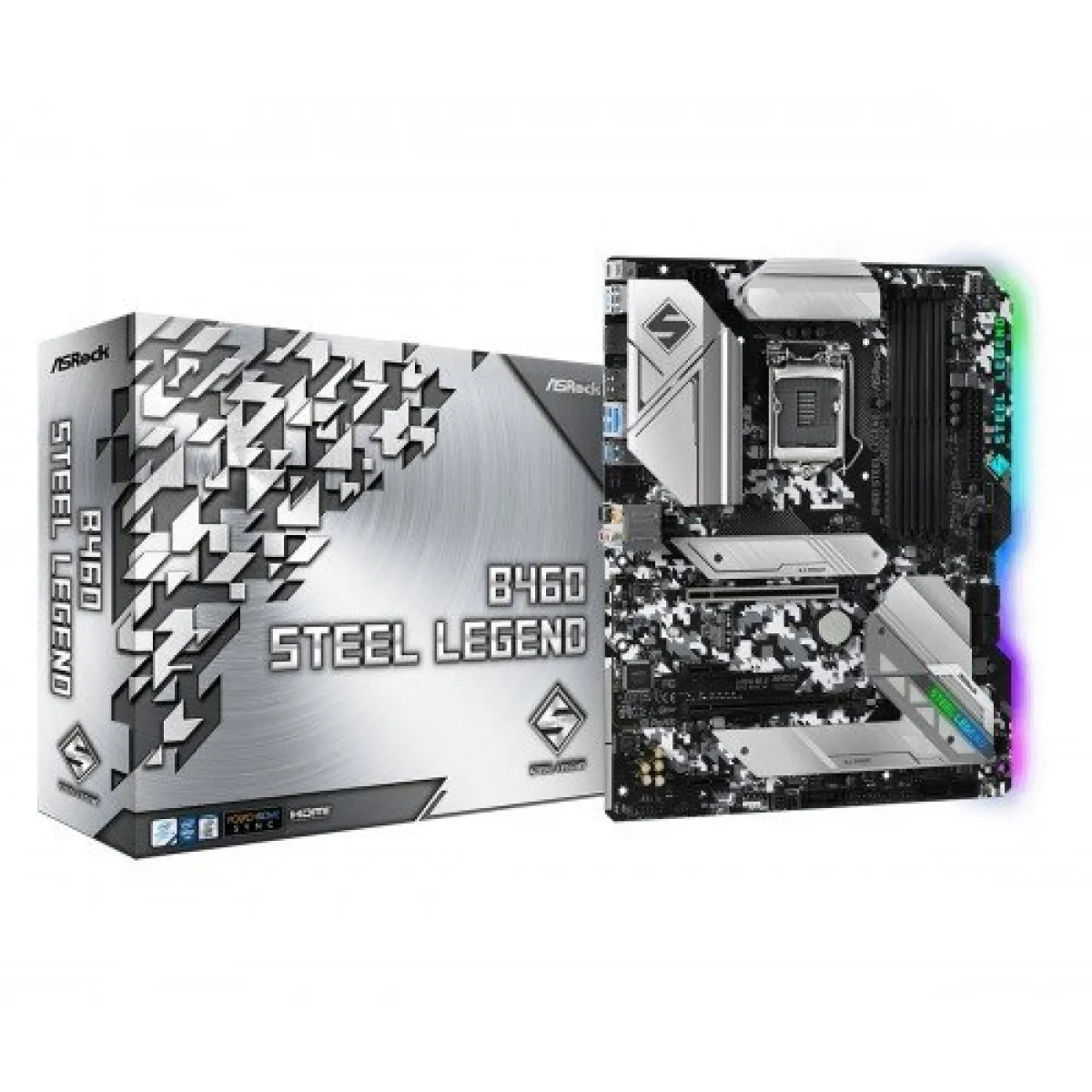

Asrock B460 Steel Legend 10th Gen ATX Motherboard
৳13,800
Key highlights
- Form Factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- Processor: - Supports 10th Gen Intel Core Processors (Socket 1200) - Digi Power design - 9 Power Phase design - Supports Intel Turbo Boost Max 3.0 Technology
- Chipset: Intel B460
- Memory: - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots Max. capacity of system memory: 128GB
- Storage: 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Description
Upgrade Your PC with Asrock B460 Steel Legend Motherboard
Unleash Your Build with the Asrock B460 Steel Legend
The Asrock B460 Steel Legend motherboard is the perfect choice for gamers and PC enthusiasts seeking performance and reliability. Designed for 10th Gen Intel processors, this ATX motherboard offers a robust set of features tailored for high-performance setups. With its striking metallic design and durable build quality, it stands out in any gaming rig.
Equipped with 4 DIMM slots supporting up to 128GB DDR4 RAM, the B460 Steel Legend ensures smooth multitasking and optimal gaming performance. The motherboard supports PCIe 3.0 x16 slots for high-speed graphics cards, making it ideal for gaming and intensive graphic design tasks. Its M.2 slots provide lightning-fast storage options, allowing for quicker load times and improved system responsiveness.
Additionally, the B460 Steel Legend features RGB lighting, customizable through the Polychrome SYNC software, enabling users to create stunning visual effects that match their gaming setup. With a dependable power phase design and premium capacitors, this motherboard also ensures system stability during overclocking and heavy usage.
Unleash Performance with Asrock's B460 Steel Legend
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| Processor | - Supports 10th Gen Intel Core Processors (Socket 1200) - Digi Power design - 9 Power Phase design - Supports Intel Turbo Boost Max 3.0 Technology |
| Chipset | Intel B460 |
| Memory | - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots Max. capacity of system memory: 128GB |
| Storage | 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
| Slots | - 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3) - 2 x PCI Express 3.0 x1 Slots |
| Audio | 1 x Front Panel Audio Connector (15μ Gold Audio Connector) HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, GT, DRAM, PCH, VCCST, VCCSA Voltage Multi-adjustment |
| Graphics Specifications | |
| Graphics | Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
| Memory Specifications | |
| Type | DDR4 2933MHz |
| NETWORK & WIRELESS CONNECTIVITY | |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| PORTS, CONNECTORS & SLOTS | |
| DVI-D (s) | 1 x DVI-D Port |
| HDMI | 1 x HDMI Port |
| M.2 | 1 x M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x4 (20 Gb/s) |
| USB (s) | 2 x USB 2.0 Ports (Supports ESD Protection) 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) |
| Internal I/O Connectors | - 1 x Antenna Bracket - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) - 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
| Special | |
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC |
| Special Feature | - XXL Aluminum Alloy Heatsink - Premium 60A Power Choke - 50A Dr.MOS - Combo Caps (Nichicon 12K Black Caps) - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - Shaped PCB Design - Matte Black PCB - High Density Glass Fabric PCB 2.5G LAN ASRock Steel Slots ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
