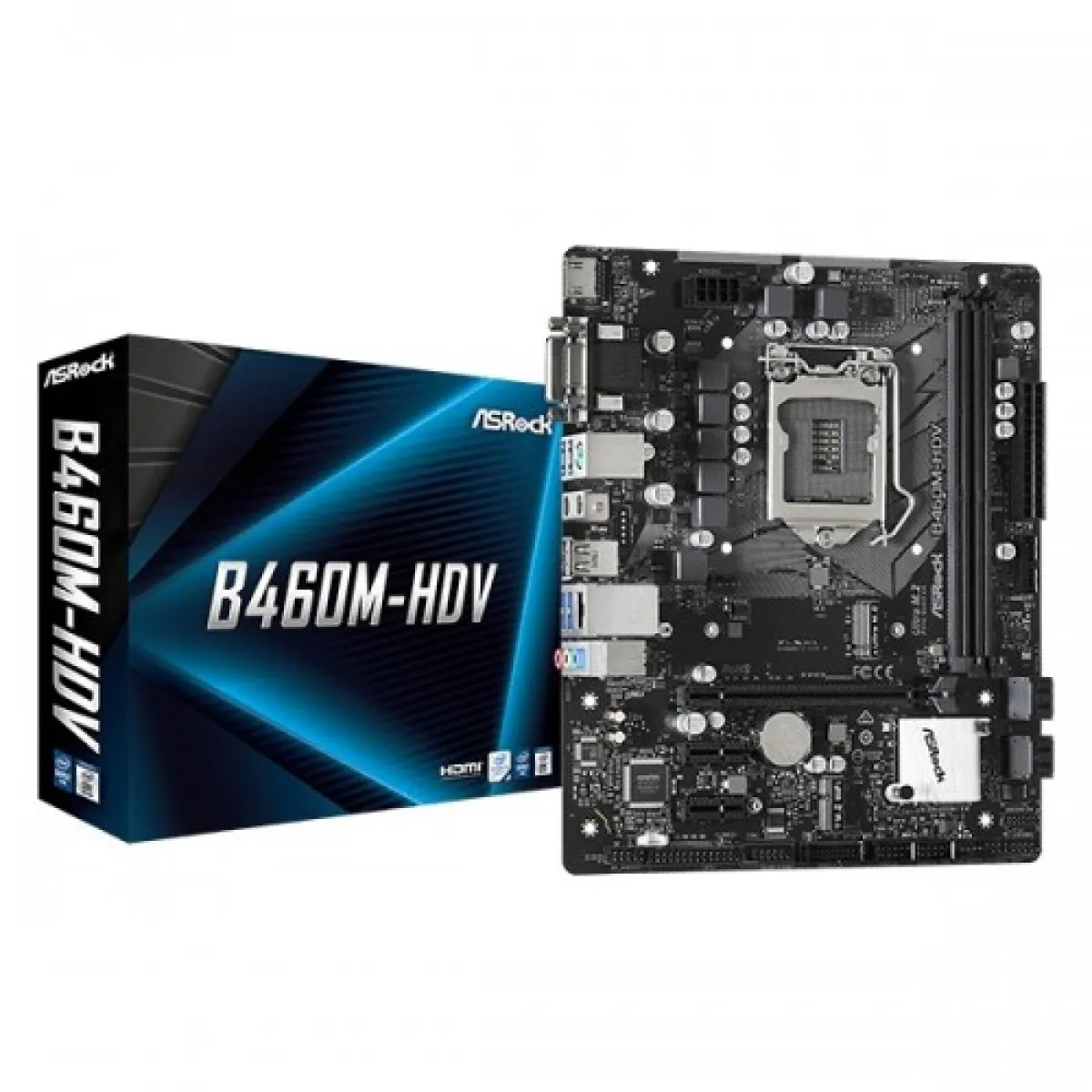

ASRock B460M-HDV 10th Gen DDR4 Motherboard
৳8,800
Key highlights
- Form Factor: Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm Solid Capacitor design
- Supported CPU: Supports 10th Gen Intel Core™Processors (Socket 1200) Digi Power design 7 Power Phase design Supports Intel Turbo Boost Max 3.0 Technology
- Chipset: Intel B460
- Audio: 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection
- BIOS: 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment
Description
Reliable Performance with ASRock B460M-HDV Motherboard
ASRock B460M-HDV 10th Gen DDR4 Motherboard
The ASRock B460M-HDV motherboard is designed to support Intel's 10th generation processors, offering an ideal foundation for your next build. With its Micro ATX form factor, it fits perfectly in compact cases while still delivering robust performance. This motherboard is equipped with DDR4 memory support up to 2933 MHz, ensuring that your system runs smoothly during multitasking and demanding applications.
One of the standout features of the B460M-HDV is its multiple connectivity options. It includes USB 3.2 Gen1 for faster data transfer and HDMI and DVI-D outputs for versatile display options. Gamers and content creators will appreciate the motherboard’s support for high-resolution displays. The board also comes with ASRock's Super Alloy technology, which enhances durability and performance, making it a reliable choice for long-term use.
With easy BIOS updates and a user-friendly interface, setting up your system is a breeze. Whether you're building a home office PC or a gaming rig, the ASRock B460M-HDV provides the features and performance you need to succeed.
Upgrade Your PC with ASRock B460M-HDV Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm Solid Capacitor design |
| Supported CPU | Supports 10th Gen Intel Core™Processors (Socket 1200) Digi Power design 7 Power Phase design Supports Intel Turbo Boost Max 3.0 Technology |
| Chipset | Intel B460 |
| Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment |
| Expansion Slots | |
| PCI | 1 x PCI Express 3.0 x 16 Slot 1 x PCI Express 3.0 x 1 Slot |
| Graphics Specifications | |
| Max Shared Memory | 64GB |
| Graphics | -Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1 -Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz -Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. -VP9 10bit and VC-1 are for decode only. VP8 and VP9 encode are not supported by Windows OS |
| Memory Specifications | |
| Maximum Size | Max. capacity of system memory: 64GB |
| Slots | 1 x PCI Express 3.0 x16 Slot* 2 x PCI Express 3.0 x1 Slots 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module |
| Supported Memory | - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub Port |
| DVI-D (s) | 1 x DVI-D Port |
| HDMI | 1 x HDMI 1.4 |
| LAN Port (s) | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| Supported Storage | 4 x SATA3 6.0 Gb/s Connectors, support RAID |
| USB (s) | 2 x USB 2.0 2 x USB 3.2 Gen1 |
| Internal I/O Connectors | 1 x Antenna Bracket 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x DVI-D Port 1 x HDMI Port 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
| Special | |
| Bundled Software | ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| Special Feature | Premium 50A Power Choke Sapphire Black PCB High Density Glass Fabric PCB |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
