Key highlights
- Form Factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- Raid controller: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supported CPU: Supports 14th 13th Gen & 12th Gen and next gen Intel Core Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT)
- Chipset: Intel B760
- Slots: 4
Description
High-Performance ATX Motherboard for Gaming Enthusiasts

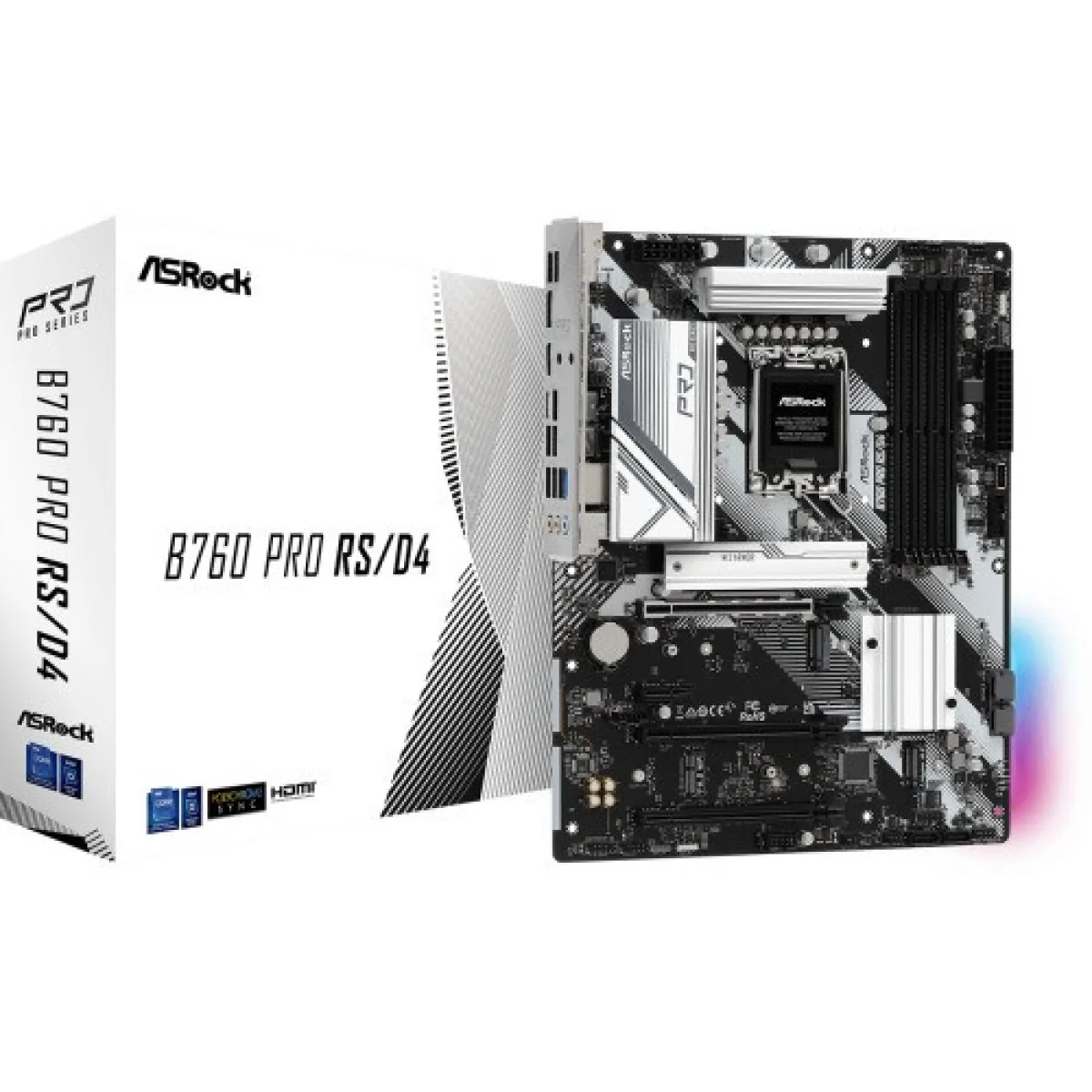

ASRock B760 Pro RS/D4 ATX Motherboard Overview
The ASRock B760 Pro RS/D4 ATX Motherboard is a cutting-edge piece of technology designed to meet the demands of modern computing. Featuring a robust ATX form factor, this motherboard is engineered to deliver exceptional performance and reliability for gamers, content creators, and everyday users alike. With support for the latest Intel processors, this motherboard is an ideal choice for those looking to build a powerful workstation or gaming rig.
Key Benefits:
One of the standout features of the ASRock B760 Pro RS/D4 is its compatibility with 12th and 13th generation Intel Core processors, providing users with access to the latest computing technology. The motherboard supports DDR4 memory, offering speeds of up to 3200 MHz, which ensures that your system runs smoothly and efficiently. Additionally, the motherboard is equipped with multiple PCIe slots, allowing for the installation of high-performance graphics cards and expansion cards, making it perfect for gaming and intensive applications.
Use Cases:
This motherboard is perfect for a variety of use cases, from gaming to content creation. Gamers will appreciate the enhanced graphics performance and the ability to run multiple GPUs, while content creators will benefit from the high-speed memory and storage options available. Whether you are editing videos, playing the latest games, or multitasking with demanding applications, the ASRock B760 Pro RS/D4 is designed to handle it all seamlessly.
Why Choose ASRock B760 Pro RS/D4?
Customers should choose the ASRock B760 Pro RS/D4 for its combination of performance, reliability, and value. With advanced features such as high-quality capacitors, a durable PCB design, and a user-friendly BIOS interface, this motherboard stands out in a crowded market. Furthermore, its competitive pricing makes it an attractive option for budget-conscious builders in Jashore, Bangladesh. Investing in the ASRock B760 Pro RS/D4 means investing in a motherboard that will serve you well for years to come.
Upgrade Your PC with ASRock B760 Pro RS/D4 Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| Raid controller | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supported CPU | Supports 14th 13th Gen & 12th Gen and next gen Intel Core Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT) |
| Chipset | Intel B760 |
| Slots | 4 |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Expansion Slots | |
| PCI | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* - 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode* - 1 x PCIe 3.0 x1 Slot (PCIE2)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire |
| Graphics Specifications | |
| Graphics | Intel Xe Graphics Architecture (Gen 12) 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | Dual Channel DDR4 Memory Technology 4 x DDR4 DIMM Slots Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel Extreme Memory Profile (XMP) 2.0 *1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively. 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. 2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively. 2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively. |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort |
| HDMI | 1x HDMI |
| Internal I/O Ports | 1 x Chassis Intrusion and Speaker Header 2 x RGB LED Headers* 2 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s |
| LAN Port (s) | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Supported Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header |
| USB (s) | 1 x USB 3.2 Gen2 Type-C (Front) 1 x USB 3.2 Gen1 Type-C (Rear) 7 x USB 3.2 Gen1 Type-A (5 Rear, 2 Front) 4 x USB 2.0 (2 Rear, 2 Front) * All USB ports support ESD Protection |
| Special | |
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer |
| Special Feature | Rock-Solid Durability - 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT - Pre-Installed I/O Shield - ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
