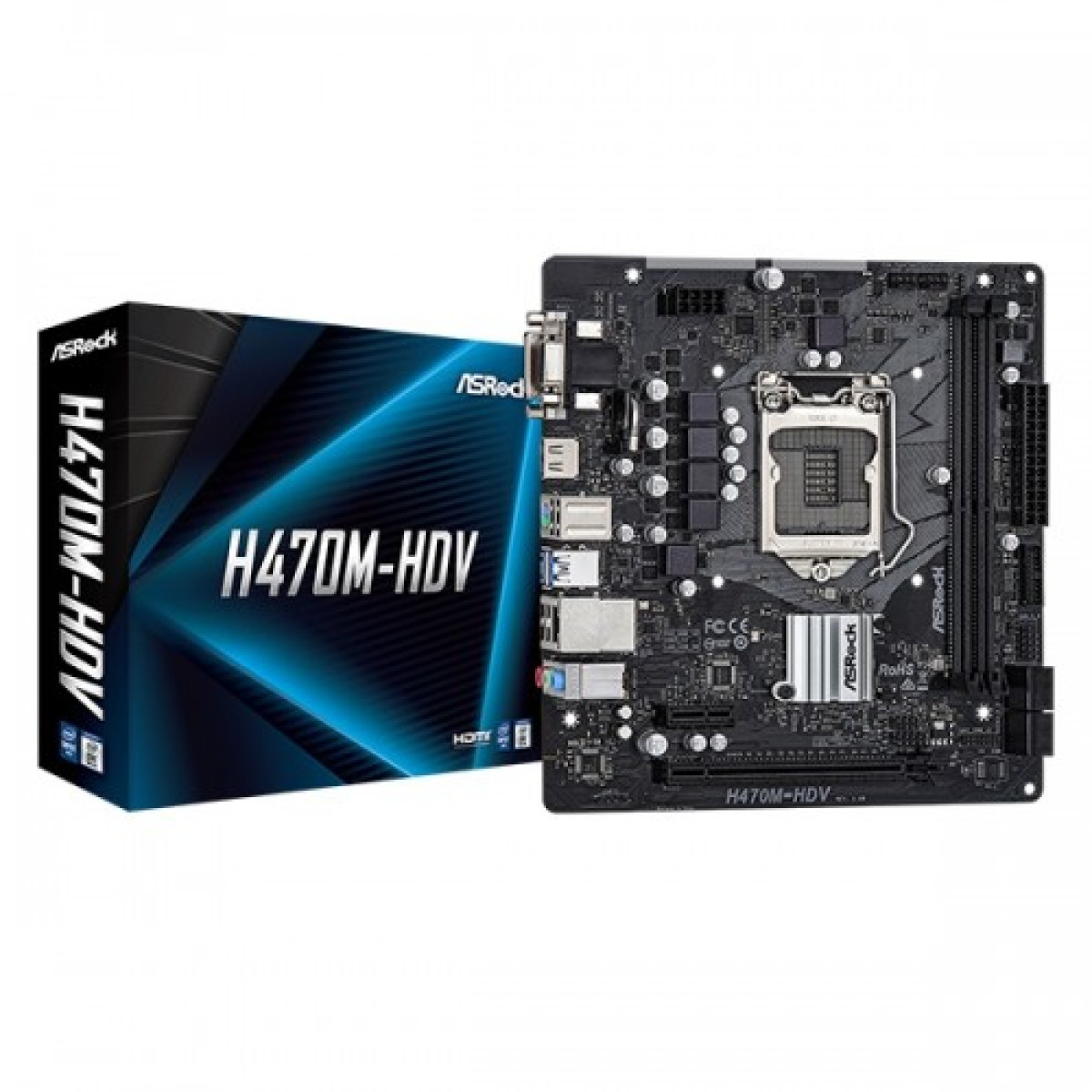

ASRock H470M-HDV 10th Gen Intel M-ATX Motherboard
৳8,900
Key highlights
- Form Factor: Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm
- Supported CPU: Supports 10th Gen Intel Core Processors (Socket 1200)
- Chipset: Intel H470
- Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection
- BIOS: - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake-up events - SMBIOS 2.7 Support - CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment
Description
High Performance ASRock H470M-HDV for Your PC Build
Experience Unmatched Performance with ASRock H470M-HDV
The ASRock H470M-HDV 10th Gen Intel M-ATX Motherboard is designed to meet the needs of both casual users and PC enthusiasts. With its advanced chipset and robust features, this motherboard provides a stable foundation for your Intel 10th Generation processor.
Enhanced Connectivity is one of the standout features of this motherboard. Equipped with multiple USB 3.2 Gen1 ports, HDMI output, and Gigabit LAN, it ensures seamless connectivity for peripherals and high-speed internet.
Superior Performance is guaranteed with support for up to 64GB of DDR4 RAM, giving you the power to multitask and run demanding applications without any lag. The motherboard is also equipped with M.2 slots for high-speed SSDs, providing ultra-fast storage solutions.
Durable and Reliable, the ASRock H470M-HDV is built with high-quality components that ensure longevity and stable performance. This makes it an ideal choice for users in Bangladesh who seek value for their investment.
Upgrade your computing experience and enjoy the benefits of a well-rounded motherboard that excels in performance, connectivity, and durability.
Explore Features of ASRock H470M-HDV Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm |
| Supported CPU | Supports 10th Gen Intel Core Processors (Socket 1200) |
| Chipset | Intel H470 |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake-up events - SMBIOS 2.7 Support - CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment |
| Expansion Slots | |
| PCI | - 1 x PCI Express 3.0 x16 Slot - 1 x PCI Express 3.0 x1 Slot |
| Memory Specifications | |
| Maximum Memory | 64GB |
| Slots | 2 x DDR4 DIMM Slots |
| Supported Memory | - Supports DDR4 2933/2800/2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots |
| Type | Dual-Channel DDR4 Memory Technology |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | 1 x Front Panel Audio Connector HD Audio Jacks: Line in / Front Speaker / Microphone |
| D-Sub (s) | 1 x D-Sub port |
| DVI-D (s) | 1 x DVI-D port |
| HDMI | 1 x HDMI Port |
| LAN Port (s) | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| Supported Storage | 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI, and Hot Plug |
| USB (s) | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) 4 x USB 2.0 Ports (Supports ESD Protection) 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
| Internal I/O Connectors | - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protectio |
| Special | |
| Special Feature | ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
