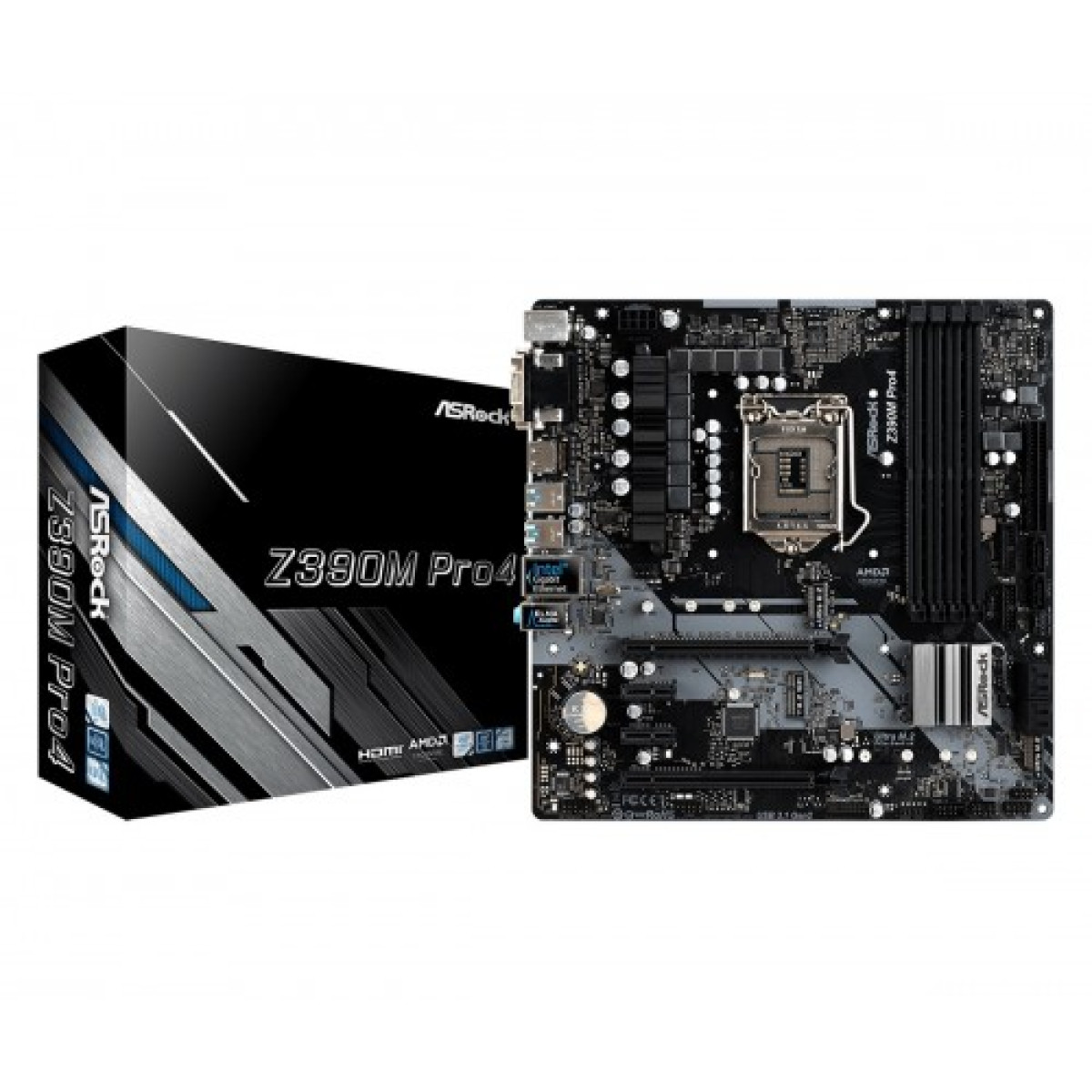

ASRock Z390M Pro4 9th Gen Micro ATX Motherboard
৳11,300
Key highlights
- Form Factor: - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - Solid Capacitor design
- Supported CPU: Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
- Chipset: Intel Z390
- BIOS: - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Voltage Multi-adjustment
- M.2 Socket: 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT)
Description
High-Performance Micro ATX Motherboard for Gamers
ASRock Z390M Pro4 9th Gen Micro ATX Motherboard
The ASRock Z390M Pro4 is a cutting-edge Micro ATX motherboard designed for 9th generation Intel processors, making it an excellent choice for both gaming enthusiasts and professional users. Featuring advanced connectivity options, this motherboard supports multiple USB 3.1 Gen2 ports, ensuring fast data transfer speeds for all your peripherals. The dual M.2 slots allow for high-speed SSD installation, providing enhanced system performance and faster load times.
With 4 DIMM slots supporting up to 64GB of DDR4 RAM, the Z390M Pro4 ensures smooth multitasking and high performance for demanding applications. Integrated Intel UHD Graphics 630 provides stunning visuals without needing a dedicated graphics card, making it ideal for compact builds.
The motherboard is also equipped with a robust power delivery system, ensuring stability during high-performance tasks. ASRock's intuitive BIOS interface allows users to easily adjust settings for optimal performance, making it suitable for both novices and experienced builders. With a 3-year warranty, you can trust the reliability and durability of this motherboard.
Upgrade Your PC with ASRock Z390M Pro4 Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - Solid Capacitor design |
| Supported CPU | Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151) |
| Chipset | Intel Z390 |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Voltage Multi-adjustment |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT) |
| PCI | - 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE4: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4)) - 2 x PCI Express 3.0 x1 Slots (Flexible PCIe) - Supports AMD Quad CrossFireX™ and CrossFireX™ |
| Graphics Specifications | |
| Graphics | - Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics - DirectX 12 - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port |
| Memory Specifications | |
| Maximum Size | 128GB |
| Slots | 4 x DDR4 DIMM Slots |
| Supported Memory | - Supports DDR4 4300+(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel® Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots |
| Type | Dual Channel DDR4 Memory Technology |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | HD Audio Jacks: Line in / Front Speaker / Microphone |
| D-Sub (s) | 1 x D-Sub Port |
| DVI-D (s) | 1 x DVI-D Port |
| HDMI | 1 x HDMI Port |
| LAN Port (s) | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| USB (s) | -1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
| Internal I/O Connectors | - 1 x COM Port Header - 1 x TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection) - 1 x Performance Mode / Easy OC Header |
| WARRANTY | |
| Manufacturing Warranty | 03 years |
