Key highlights
- Form Factor: mATX Form Factor 9.6 inch x 9.5 inch ( 24.4 cm x 24 cm )
- Supported CPU: AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors
- Chipset: AMD B450
- Memory: 64 GB
- Audio: Realtek® ALC887 8-Channel High Definition Audio CODEC Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Description

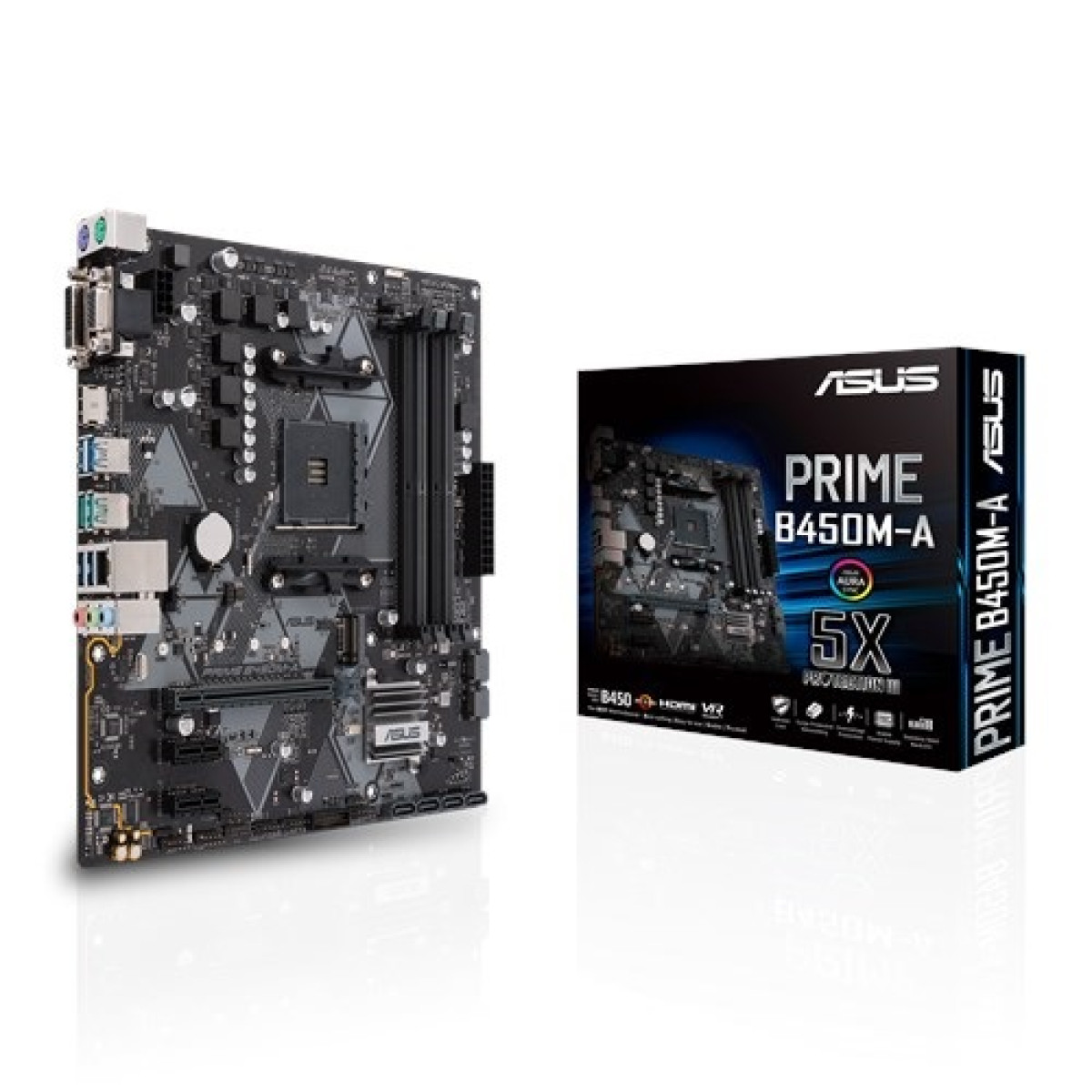

Reliable Performance with ASUS PRIME B450M-A Motherboard
ASUS PRIME B450M-A AMD mATX Motherboard
The ASUS PRIME B450M-A is designed to elevate your computing experience with its robust features and reliable performance. Built on the AMD B450 chipset, this motherboard supports the latest AMD Ryzen processors, ensuring you have the power needed for gaming, content creation, and multitasking. With its Micro-ATX form factor, it fits seamlessly into compact builds, making it an ideal choice for users in Jashore, Bangladesh looking for space-efficient solutions.
Key Benefits:
- Enhanced Performance: Experience superior performance with support for overclocking and fast memory speeds of up to 3200MHz.
- Comprehensive Connectivity: Equipped with multiple USB 3.0 and 2.0 ports, HDMI, and DVI outputs, this motherboard ensures you can connect all your devices effortlessly.
- Durable Build Quality: ASUS's renowned engineering guarantees longevity and reliability, making this motherboard a solid investment for years to come.
- User-Friendly Design: Features such as the ASUS UEFI BIOS and easy-to-use software utilities make setup and customization a breeze.
Whether you're a gamer, a professional, or a casual user, the ASUS PRIME B450M-A is designed to meet your needs and exceed your expectations.
Upgrade Your System with ASUS B450M-A Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | mATX Form Factor 9.6 inch x 9.5 inch ( 24.4 cm x 24 cm ) |
| Supported CPU | AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors |
| Chipset | AMD B450 |
| Memory | 64 GB |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control |
| Expansion Slots | |
| M.2 Socket | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 AMD Athlon™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode) |
| PCI | AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen™ with Radeon™ Vega Graphics Processor 1 x PCIe 3.0/2.0 x16 (x8 mode) *1 AMD Athlon™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (max at x4 mode) AMD B450 chipset 2 x PCIe 2.0 x1 |
| Graphics Specifications | |
| Graphics | Multi-VGA output support : HDMI/DVI-D/D-Sub ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz |
| Memory Specifications | |
| Supported Memory | DDR4 3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory |
| Type | Dual Channel DDR4 Memory Technology |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub |
| DVI-D (s) | 1 xDVI-D |
| HDMI | 1 x HDMI port |
| LAN Port (s) | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) ASUS LAN Guard |
| Supported Storage | AMD B450 chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 2 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 AMD Athlon™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*2 |
| USB (s) | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) AMD B450 chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, ) AMD B450 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) AMD B450 chipset : 4 x USB 2.0/1.1 port(s) (4 at mid-board) |
| Internal I/O Connectors | 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector |
| WARRANTY | |
| Manufacturing Warranty | 03 years |
