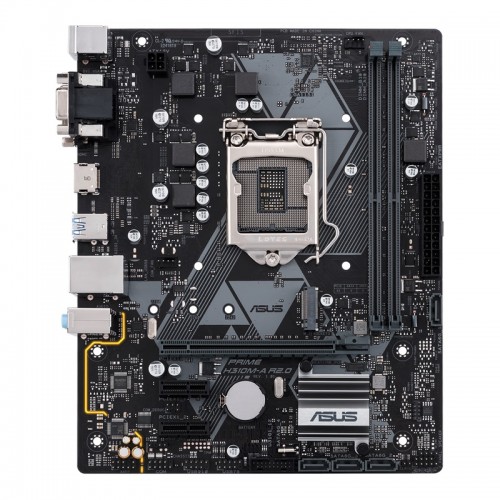

Asus PRIME H310M-AT R2.0 9th and 8th Gen mATX Motherboard
- Brand: Asus
- Product Code: PRIME H310M-AT R2.0
- Availability: In Stock
Specification
| BASIC INFORMATION | |
| Form Factor | mATX Form Factor 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm ) |
| Supported CPU | Intel Socket 1151 9th / 8th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 |
| Chipset | Intel H310 |
| Audio | 3 x Audio jack(s) |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information |
| Expansion Slots | |
| PCI | 1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 2 x PCIe 2.0 x1 |
| Graphics Specifications | |
| Max Shared Memory | 1024 MB |
| Graphics | Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support : HDMI/DVI-D/D-Sub ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider |
| Memory Specifications | |
| Maximum Memory | Max. 32GB |
| Slots | 2 x DIMM |
| Supported Memory | 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 X D-sub |
| DVI-D (s) | 1 x DVI-D |
| HDMI | 1 x HDMI |
| LAN Port (s) | Realtek RTL8111H, 1 x Gigabit LAN |
| Supported Storage | Intel H310 Chipset : 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1 4 x SATA 6Gb/s port(s), gray, |
| USB (s) | Intel H310 Chipset : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) Intel H310 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board) |
| Special | |
| Special Feature | ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: Premium components provide better power efficiency ASUS OptiMem： - Optimem (Improved DDR4 stability) ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger - PC Cleaner - File Transfer ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-DIMM M.2 Onboard(The latest transfer technologies with up to 10Gb/s data transfer speeds) |
| WARRANTY | |
| Manufacturing Warranty | 03 years |
Description
Asus PRIME H310M-AT R2.0: Elevate Your PC Experience
Experience seamless computing with the Asus PRIME H310M-AT R2.0 motherboard, designed specifically for 8th and 9th Gen Intel processors. This mATX motherboard combines advanced technology with user-friendly features, making it an ideal choice for both casual users and gaming enthusiasts in Bangladesh. Enhanced Performance is at the forefront, with support for high-speed DDR4 RAM, ensuring quick data processing and multitasking capabilities.
Additionally, the motherboard’s robust build quality guarantees longevity and reliability, even under heavy workloads. With multiple USB 3.1 Gen 1 ports, connecting peripherals is easier than ever. Integrated graphics support allows for stunning visuals without the need for a dedicated GPU, making this an excellent choice for budget-conscious gamers.
Moreover, the Asus PRIME H310M-AT R2.0 is equipped with ASUS’ renowned 5X Protection III technology, providing superior safety measures against overvoltage, short circuits, and other common hazards. This means you can build your system with confidence, ensuring your investment is well protected. Choose the Asus PRIME H310M-AT R2.0 motherboard for a reliable, high-performance foundation for your next PC build.
