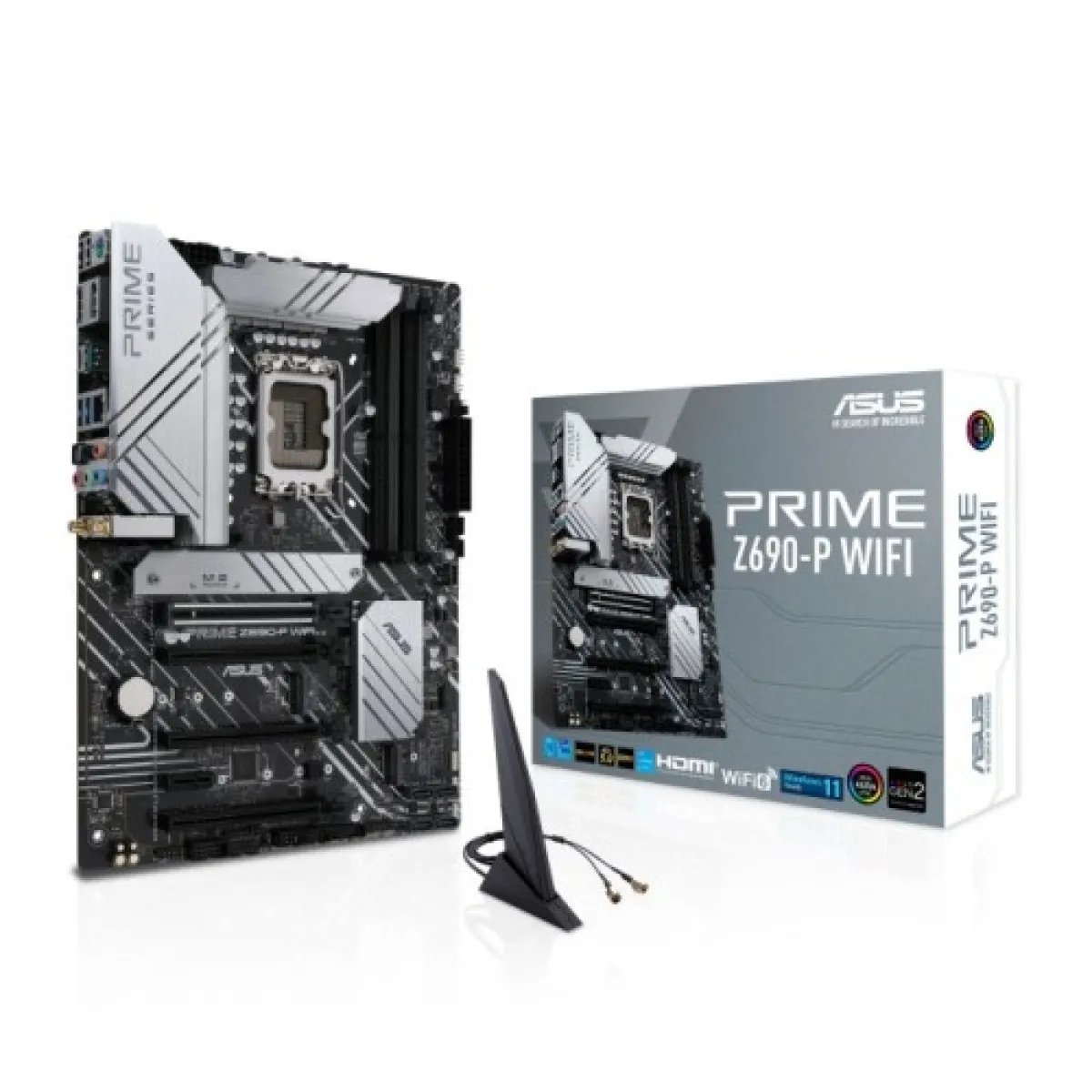

Asus Prime Z690-P WIFI Intel 12th Gen ATX Motherboard
Key highlights
- Supported CPU: Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Z690
- Slots: 4 x DIMM
- Audio: 1 x Front Panel Audio header (AAFP)
- BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Description
Top Features of Asus Prime Z690-P Motherboard in Jashore
Asus Prime Z690-P WIFI: Unleash Your PC's Potential
The Asus Prime Z690-P WIFI motherboard is designed for gamers and PC enthusiasts who demand superior performance and reliability. Built on the latest Intel 12th Gen architecture, this ATX motherboard offers cutting-edge features that enhance your computing experience. With support for PCIe 5.0, you can enjoy lightning-fast data transfer rates, making it ideal for high-speed storage solutions and graphics cards. The integrated WIFI 6 technology ensures seamless connectivity, allowing you to stay connected without the hassle of cables.
This motherboard is equipped with DDR4 memory slots that support up to 128GB of RAM, providing ample power for multitasking and heavy applications. The robust thermal design and advanced cooling options ensure your system remains stable even during intense gaming sessions. Additionally, the Aura Sync RGB lighting lets you customize the aesthetics of your setup, making it as unique as your style.
Whether you're building a new rig or upgrading your existing setup, the Asus Prime Z690-P WIFI motherboard is a stellar choice for anyone looking to maximize performance and capability.
Upgrade Your PC with Asus Prime Z690-P ATX Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Z690 |
| Slots | 4 x DIMM |
| Audio | 1 x Front Panel Audio header (AAFP) |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | Supports 3 x M.2 slots |
| PCI | Intel 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot(s) Intel Z690 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
| Graphics Specifications | |
| Graphics | 1 x DisplayPort (Support max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt header |
| Supported Storage | Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel12th Gen processors support PCIe 4.0 x4 mode. Intel Z690 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| USB (s) | Rear USB:Total 6 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 9 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Special | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 -Easy Optimization with AI Overclocking TPU EPU DIGI+ VRM Turbo app ASUS CPU-Z DTS:X Ultra Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
| Special Feature | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - Box headers - Clear CMOS button - CPU socket lever protector - ProCool - Pre-mounted I/O shield AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
