Key highlights
- Form Factor: ATX: 30.5cm x 24.4cm
- Supported CPU: AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Chipset: B550
- Memory: 128GB
- Slots: 4 x DIMM
Description
High-Performance Motherboard for AMD Builds

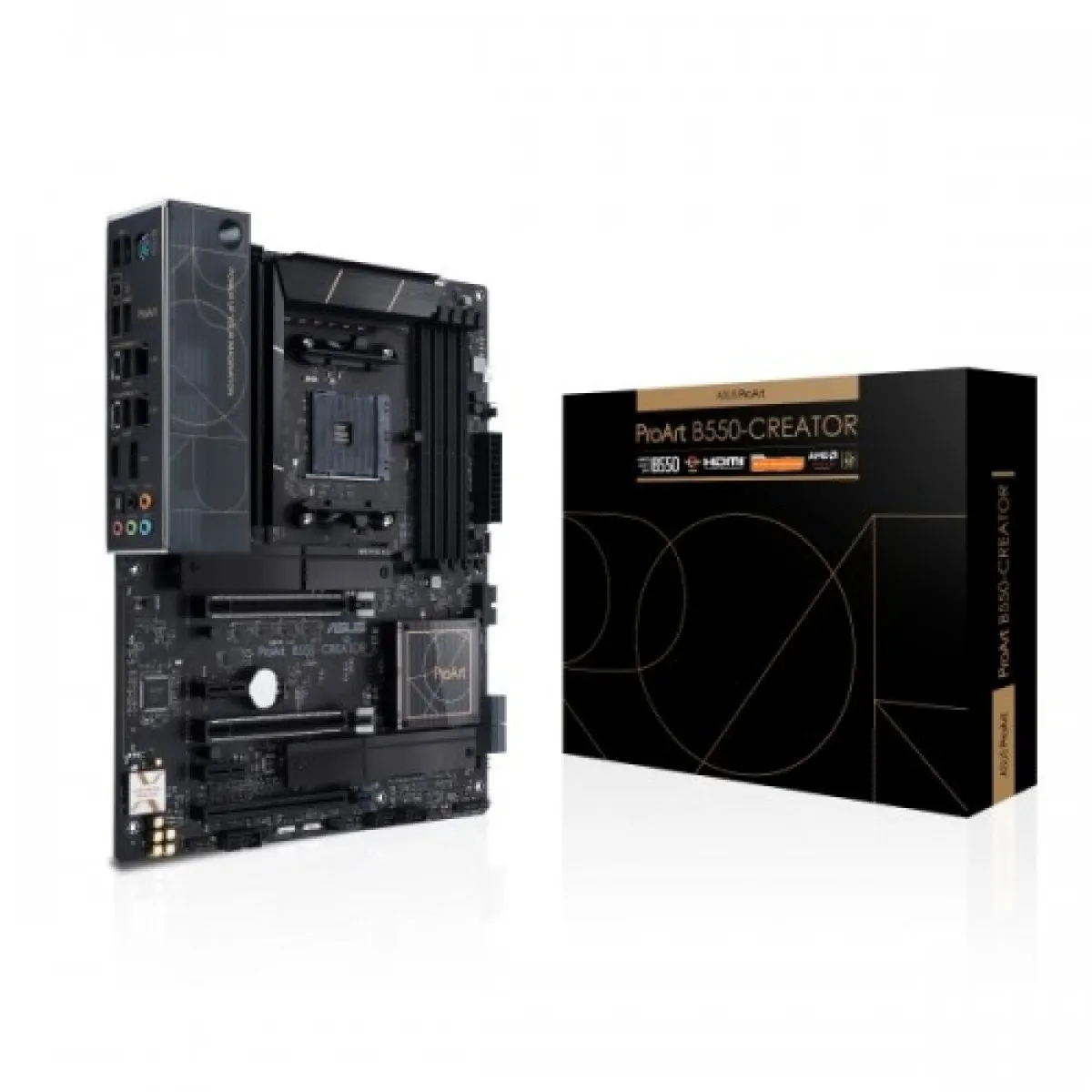

Discover the Power of Asus PROART B550-CREATOR AM4 Motherboard
The Asus PROART B550-CREATOR AM4 AMD ATX Motherboard is designed for creators who demand high performance and reliability. This motherboard supports the latest AMD Ryzen processors, ensuring optimal performance for demanding workloads such as video editing, 3D rendering, and graphic design. With its robust feature set, it caters to both professionals and enthusiasts alike.
Featuring dual PCIe 4.0 M.2 slots, the B550-CREATOR allows for lightning-fast NVMe SSD storage, enhancing your system’s overall speed and responsiveness. The motherboard also boasts a 10Gb Ethernet port, providing ultra-fast network connectivity, ideal for large file transfers and online collaboration.
Moreover, the comprehensive connectivity options include USB 3.2 Gen 2 Type-C, ensuring you can connect all your peripherals with ease. The board's AI Noise Cancelation technology further enhances audio quality, making it perfect for live streaming and video calls.
Investing in the Asus PROART B550-CREATOR means investing in a motherboard that prioritizes build quality and user experience, backed by Asus's reliable warranty. Elevate your creative projects with this powerful piece of hardware.
Unleash Your Creativity with Asus B550-CREATOR
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX: 30.5cm x 24.4cm |
| Supported CPU | AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Chipset | B550 |
| Memory | 128GB |
| Slots | 4 x DIMM |
| Audio | - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback Audio Features - Power pre-regulator reduces power input noise to ensure consistent performance - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen 4000 G-Series Processor : M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) |
| PCI | 2 x PCIe 4.0/3.0 x16 (x16, x8/x8) AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 2 x PCIe 4.0 x16 (x16 or dual x8) AMD Ryzen 4000 G-Series Processor 2 x PCIe 3.0 x16 (x16 or dual x8) AMD B550 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots |
| Memory Specifications | |
| Supported Memory | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 4866(O.C)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz ECC and non-ECC, Un-buffered Memory AMD Ryzen 4000 G-Series Processors 5100(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz ECC and non-ECC, Un-buffered Memory OptiMem II Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort (Input only) |
| HDMI | 1 x HDMI™ 2.1 (4K@60Hz) |
| LAN Port (s) | 2 x Intel I225-V 2.5Gb Ethernet ports |
| Supported Storage | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen 4000 G-Series Processor : M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Supports RAID 0, 1, 10 |
| USB (s) | 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.2/ 1.4 and Thunderbolt video outputs 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) |
| Internal I/O Connectors | 2 x Thunderbolt 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 20-5 pin System Panel header 1 x Thermal Sensor header |
| Special | |
| Special Feature | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with Dr. MOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Latch - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Box Headers - ProCool II - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
