Key highlights
- Form Factor: mATX
- Supported CPU: AMD AM4 Socket for 3rd/2nd/1st AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors
- Chipset: AMD B450
- Memory: 64GB
- Slots: 4
Description

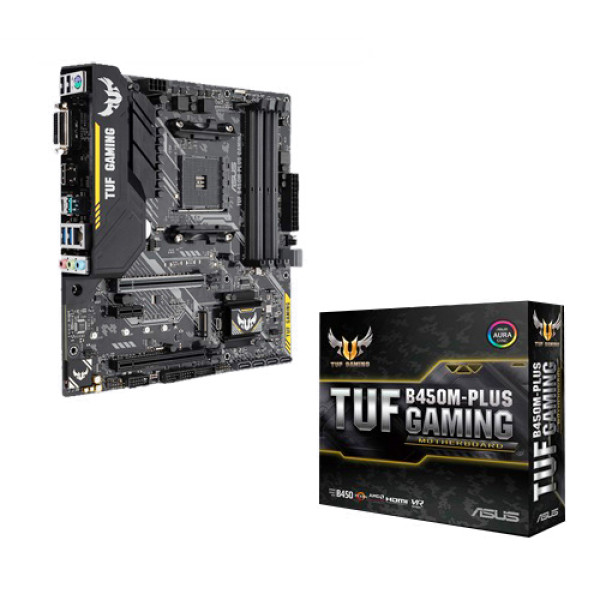

Unleash Your Gaming Potential with the Asus TUF B450M-PLUS GAMING Motherboard
Introducing the Asus TUF B450M-PLUS GAMING DDR4 AMD AM4 Motherboard, designed specifically for gamers and PC builders who seek unparalleled performance and reliability. This motherboard is part of the renowned TUF Gaming series, known for its durability and feature-rich specifications. Built with military-grade components, it ensures longevity and stability even during intense gaming sessions.
With support for AMD Ryzen processors, this motherboard offers exceptional processing power to handle the latest games and applications seamlessly. The DDR4 memory support allows for high-speed memory configurations, enhancing overall system performance. Additionally, its Dual M.2 slots provide lightning-fast storage options, enabling quick load times and efficient multitasking.
One of the standout features of the TUF B450M-PLUS is its comprehensive cooling solutions. Equipped with multiple fan headers and TUF's Thermal Armor, this motherboard ensures optimal thermal performance, keeping your system cool under pressure. Experience the power of ASUS Aura Sync for customizable RGB lighting, allowing you to match your system's aesthetics to your style.
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | mATX |
| Supported CPU | AMD AM4 Socket for 3rd/2nd/1st AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors |
| Chipset | AMD B450 |
| Memory | 64GB |
| Slots | 4 |
| Audio | Realtek ALC887-VD2 8-Channel High Definition Audio CODEC |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS User Profile,ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control,F4 AURA ON/OFF,F9 Search |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket 3 (type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) |
| Graphics Specifications | |
| Graphics | Integrated Graphics in the AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz |
| Memory Specifications | |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| DVI-D (s) | 1 x DVI-D |
| HDMI | 1 x HDMI |
| LAN Port (s) | Realtek RTL8111H TUF LAN Guard |
| Supported Storage | AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors : - 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 AMD Athlon with Radeon Vega Graphics Processors : - 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*1 AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen st Generation Processors : - 2 x SATA 6Gb/s port(s) AMD B450 chipset : - 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
| USB (s) | 1 x USB3.1 Gen 1 Type-C, 1 x USB3.1 Gen 2, 4 x USB3.1 Gen 1 |
| Internal I/O Connectors | 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
