Key highlights
- Form Factor: microATX 24.4cm x 24.4cm
- SpecialFeatures: ASUS TUF PROTECTION - DIGI+ VRM - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers
- Chipset: AMD B550 Chipset
- Type: DDR4
- PCI: AMD Ryzen 5000 Series/ 3000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors: 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD B550 Chipset: 2 x PCIe 3.0 x1 slots
Description
Get High-Performance MicroATX Motherboard for Gaming

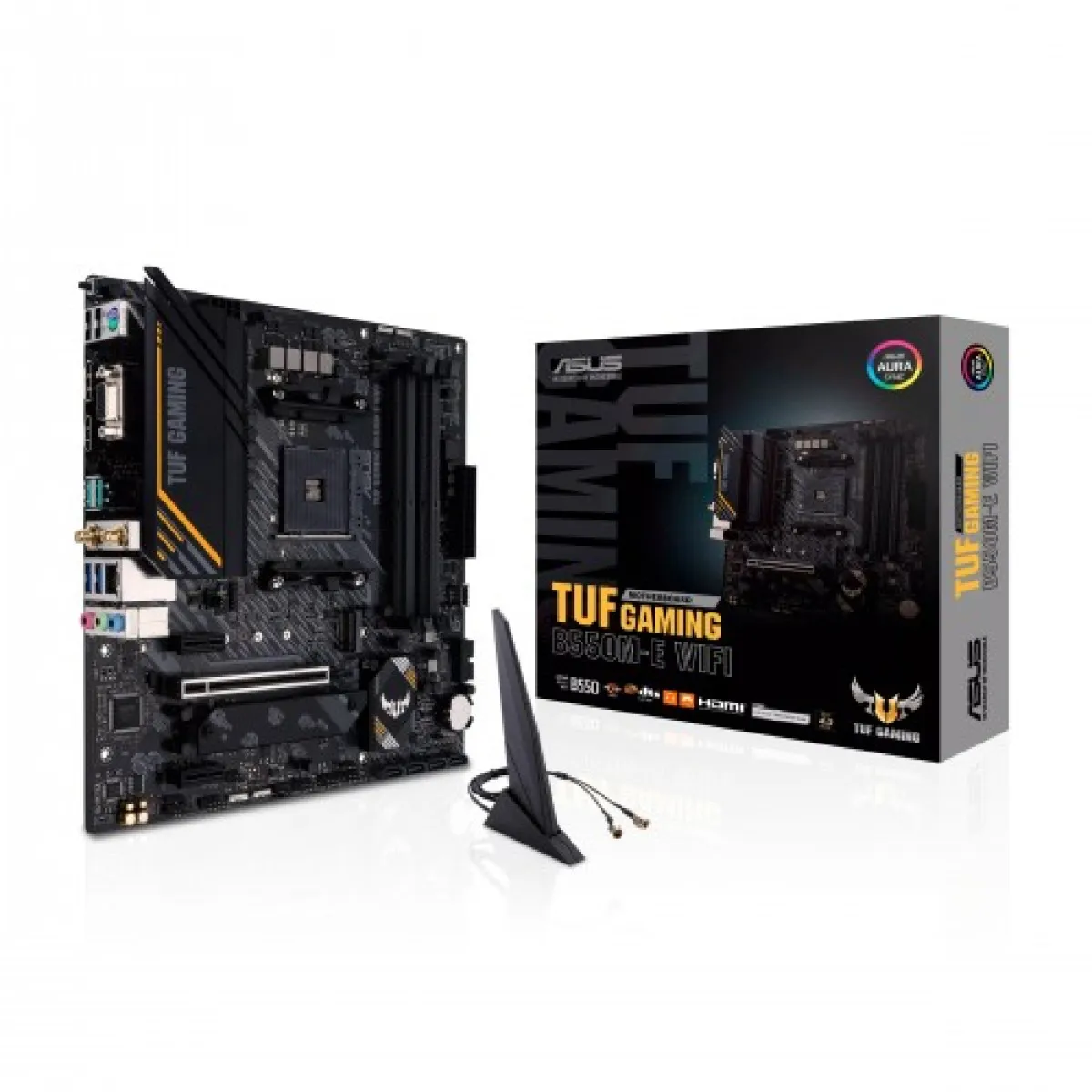

Elevate Your Gaming Experience with the Asus TUF GAMING B550M-E WIFI
The Asus TUF GAMING B550M-E WIFI is a robust microATX motherboard designed specifically for gamers and PC enthusiasts seeking performance and reliability. With an AM4 socket, it supports AMD Ryzen 3000 and 5000 series processors, ensuring you have the latest technology at your fingertips. This motherboard is packed with features that enhance your gaming experience, including WiFi 5 for seamless internet connectivity and dual M.2 slots for ultra-fast storage options.
Built with military-grade components, the TUF GAMING B550M-E offers exceptional durability and stability, making it perfect for long gaming sessions. The Thermal Armor design helps keep the motherboard cool, while fan headers provide customizable cooling solutions. Additionally, the Aura Sync RGB lighting allows you to personalize your setup, adding a unique flair to your gaming station.
Shop Asus TUF GAMING B550M-E with WiFi Support Now
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | microATX 24.4cm x 24.4cm |
| SpecialFeatures | ASUS TUF PROTECTION - DIGI+ VRM - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers |
| Chipset | AMD B550 Chipset |
| Type | DDR4 |
| Expansion Slots | |
| PCI | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors: 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD B550 Chipset: 2 x PCIe 3.0 x1 slots |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Slots | 4 x DIMM |
| Supported Memory | 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory Dual Channel Memory Architecture |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub |
| Display Port (s) | 1 x DisplayPort 1.2 |
| HDMI | 1 x HDMI 2.1(4K@60HZ) |
| Internal I/O Ports | Fan and Cooling related: 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related: 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related: 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous: 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet TUF LANGuard |
| USB (s) | 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x USB 3.2 Gen 1 connector (supports USB Type C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Wireless Communication module | 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.1 * Bluetooth v5.1 function will be ready in Windows 10 build 19041 or later. |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
