Key highlights
- Form Factor: Micro ATX Form Factor; 24.4cm x 20.5cm
- Supported CPU: AMD Ryzen™ 2nd Generation processors AMD Ryzen™ with Radeon™ Vega Graphics processors AMD Ryzen™ 1st Generation processors
- Chipset: AMD B450
- BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- M.2 Socket: 1 x M.2 Socket 3 connector
Description
High-Performance B450M Motherboard for Gamers

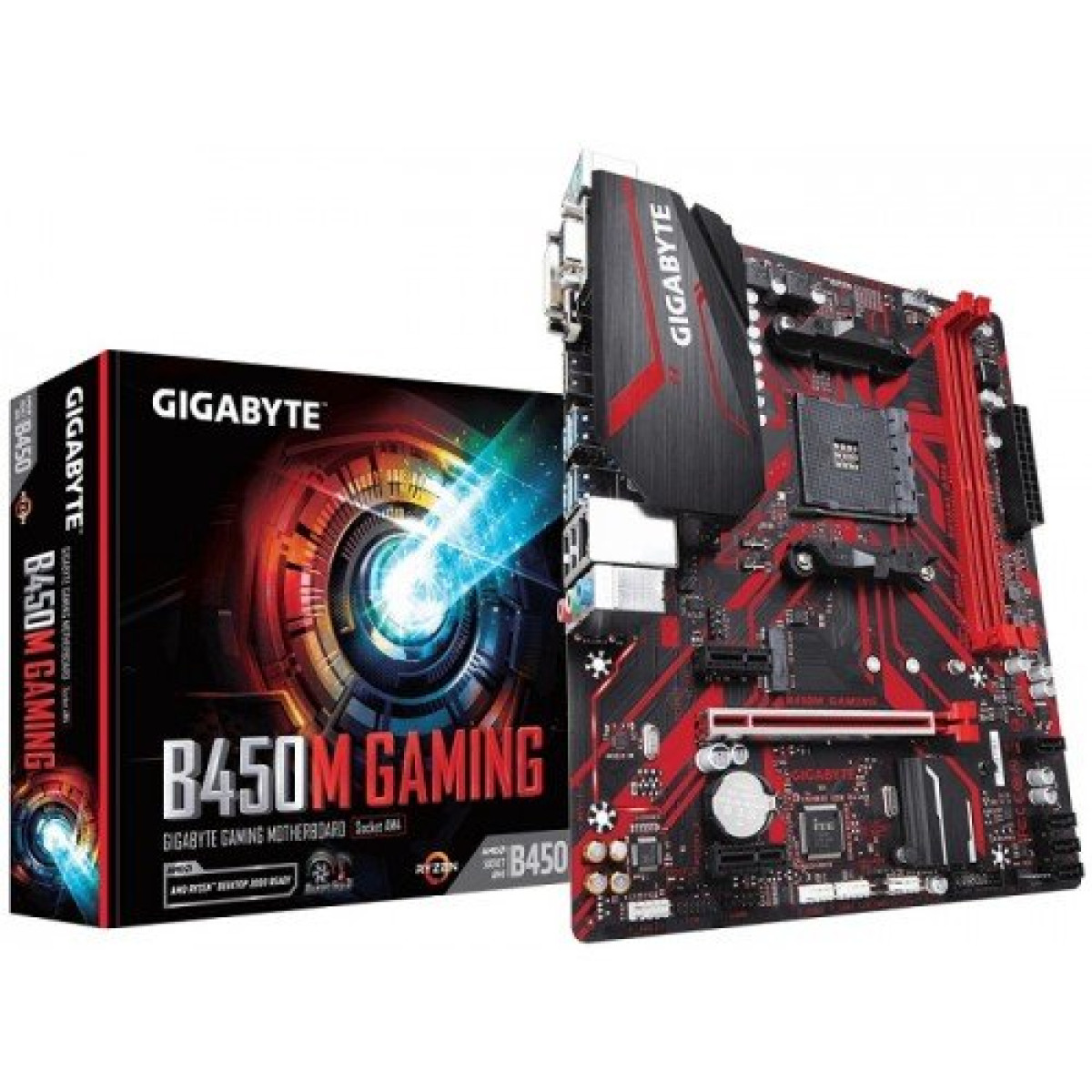

Unleash Your Gaming Potential with the Gigabyte AMD B450M Gaming Motherboard
Welcome to the next level of gaming performance with the Gigabyte AMD B450M Gaming Motherboard, specifically designed for gamers who demand speed, stability, and superior graphics. This motherboard is built on the AM4 platform, supporting the latest AMD Ryzen processors to ensure that you enjoy lightning-fast performance and stunning visuals in all your favorite games.
One of the standout features of this motherboard is its optimized thermal design, which keeps your system cool even during intense gaming sessions. With advanced thermal performance, you can push your hardware to the limit without worrying about overheating. The Ultra Durable technology adds extra protection against electrical surges, ensuring your components remain safe and sound.
Additionally, the Gigabyte B450M supports dual-channel DDR4 memory up to 3200MHz, delivering seamless multitasking capability and improved frame rates. Its multiple display outputs allow you to connect various monitors, enhancing your gaming setup. The integrated audio system also provides high-quality sound, immersing you in your games like never before.
Explore Features of Gigabyte AMD B450M Gaming Board
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor; 24.4cm x 20.5cm |
| Supported CPU | AMD Ryzen™ 2nd Generation processors AMD Ryzen™ with Radeon™ Vega Graphics processors AMD Ryzen™ 1st Generation processors |
| Chipset | AMD B450 |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket 3 connector |
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) |
| Graphics Specifications | |
| Max Shared Memory | 2 GB |
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.2. |
| Memory Specifications | |
| Maximum Size | 32 GB |
| Slots | 2 x DDR4 DIMM sockets |
| Supported Memory | Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | Dual Channel DDR4 Memory Technology |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | 3 x audio jacks |
| D-Sub (s) | 1 x D-Sub port |
| DVI-D (s) | 1 x DVI-D port |
| HDMI | 1 x HDMI port |
| LAN Port (s) | 1 x RJ-45 port |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support) * Supports only M.2 SATA SSDs when using an AMD 7th Generation A-series or Athlon™ processor. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| USB (s) | 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x speaker header 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header |
| WARRANTY | |
| Manufacturing Warranty | 03 years |
