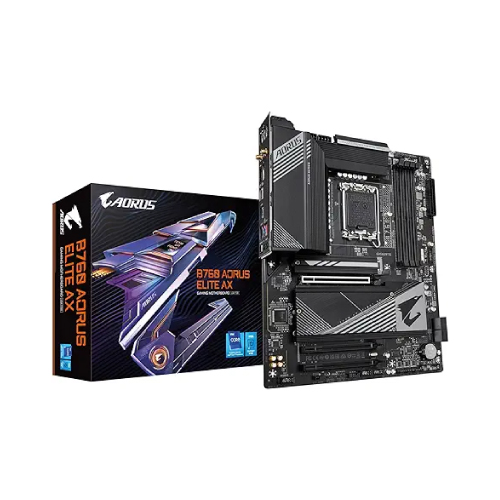

Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 ATX Motherboard
- Brand: Gigabyte
- Product Code: B760 AORUS ELITE AX
- Availability: Out Of Stock
Specification
| BASIC INFORMATION | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Raid controller | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Supported CPU | LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
| Chipset | Intel B760 Express Chipset |
| Audio | 2 x audio jacks |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Memory Specifications | |
| Maximum Memory | up to 192 GB (48 GB single DIMM capacity) of system memory |
| Slots | 4 |
| Supported Memory | Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort |
| HDMI | 1x HDMI |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Wireless Communication module | Intel Wi-Fi 6E AX211 (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek Wi-Fi 6E RTL8852CE (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Special Feature | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
Unleash Your Gaming Potential with the Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 ATX Motherboard
The Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 ATX Motherboard is engineered for gamers and professionals seeking unrivaled performance and cutting-edge technology. This motherboard stands out in the crowded market with its robust build quality, advanced cooling solutions, and extensive connectivity options. Designed to support the latest Intel processors, it is an ideal foundation for creating a powerful gaming rig or a high-performance workstation.
Performance and Stability: With support for the latest DDR5 memory, this motherboard allows you to push the limits of your system with faster data transfer rates and improved efficiency. The dual-channel architecture enhances bandwidth, making multitasking seamless and gaming experiences smoother than ever. The advanced thermal design, featuring multiple heatsinks and Smart Fan 6 technology, ensures optimal cooling, even during intense gaming sessions.
Connectivity and Expansion: The B760 AORUS ELITE AX comes equipped with an array of connectivity options, including USB 3.2 Gen 2 Type-C, PCIe 5.0 slots for next-gen GPUs, and M.2 slots for ultra-fast SSDs. This flexibility allows you to build a system tailored to your specific needs, whether you're a gamer, content creator, or tech enthusiast.
Use Cases: This motherboard is perfect for a range of applications, from casual gaming to competitive esports and content creation. The AORUS Elite AX offers an unparalleled experience for those who demand high performance and reliability. Gamers will appreciate the ultra-responsive gameplay, while content creators will benefit from the motherboard's ability to handle heavy workloads with ease.
Why Choose the Gigabyte B760 AORUS ELITE AX?: Investing in the B760 AORUS ELITE AX means choosing a product backed by Gigabyte's reputation for quality and performance. With a 3-year warranty, this motherboard provides peace of mind, ensuring that your investment is protected. Additionally, its compatibility with a wide range of components makes it a versatile choice for any build, particularly in the thriving tech market of Bangladesh.
