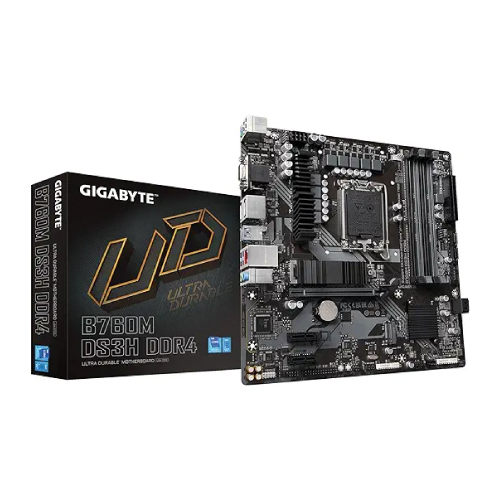

GIGABYTE B760M DS3H AX DDR4 mATX Motherboard
- Brand: Gigabyte
- Product Code: B760M DS3H AX DDR4
- Availability: Out Of Stock
Specification
| BASIC INFORMATION | |
| Audio Features | 1 x front panel audio header 3 x audio jacks |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Raid controller | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supported CPU | LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
| Chipset | Intel B760 Express Chipset |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Slots | 4 |
| Supported Memory | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort |
| HDMI | 1x HDMI |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumpe |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
| USB (s) | 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Wireless Communication module | Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Special | |
| Special Feature | 2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
Unleash Your Potential with the GIGABYTE B760M DS3H AX DDR4 mATX Motherboard
The GIGABYTE B760M DS3H AX DDR4 mATX Motherboard is designed for those who seek a powerful, reliable, and future-ready foundation for their computing needs. With its compact micro-ATX form factor, this motherboard is perfect for building a versatile workstation or a high-performance gaming rig. It combines cutting-edge technology with user-friendly features to deliver an exceptional computing experience.
Product Overview
The B760M DS3H AX is equipped with the latest Intel B760 chipset, supporting 12th and 13th generation Intel Core processors. This motherboard offers dual-channel DDR4 memory support, with a maximum capacity of up to 64GB, ensuring smooth multitasking and enhanced performance for demanding applications. The motherboard's PCIe 4.0 slots provide high-speed data transfer rates for graphics cards and other expansion cards, making it an ideal choice for gamers and professionals alike.
Benefits and Use Cases
One of the standout features of the B760M DS3H AX is its comprehensive connectivity options. With multiple USB ports, HDMI and DisplayPort outputs, and a Realtek ALC897 audio codec, users can easily connect various peripherals and enjoy high-quality audio and visuals. Whether you are a gamer looking to build a budget-friendly gaming setup or a professional seeking a reliable workstation for graphic design or video editing, this motherboard has you covered.
Why You Should Buy This Product
Investing in the GIGABYTE B760M DS3H AX DDR4 mATX Motherboard means investing in durability and performance. GIGABYTE's commitment to quality is evident in the motherboard's robust build, featuring premium capacitors and a reinforced PCIe slot to handle the weight of heavy graphics cards. Additionally, the motherboard comes with a 3-year warranty, providing peace of mind for your investment. With its competitive pricing in the Bangladesh market, this motherboard stands out as an excellent value choice for both casual users and tech enthusiasts.
