Key highlights
- Form Factor: Micro ATX Form Factor; 24.4cm x 18.5cm
- Supported CPU: Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package (Go to GIGABYTE's website for the latest CPU support L3 cache varies with CPU
- Chipset: Intel® H310 Express Chipset
- Memory: 32 GB
- Slots: 2 x DIMM sockets
Description

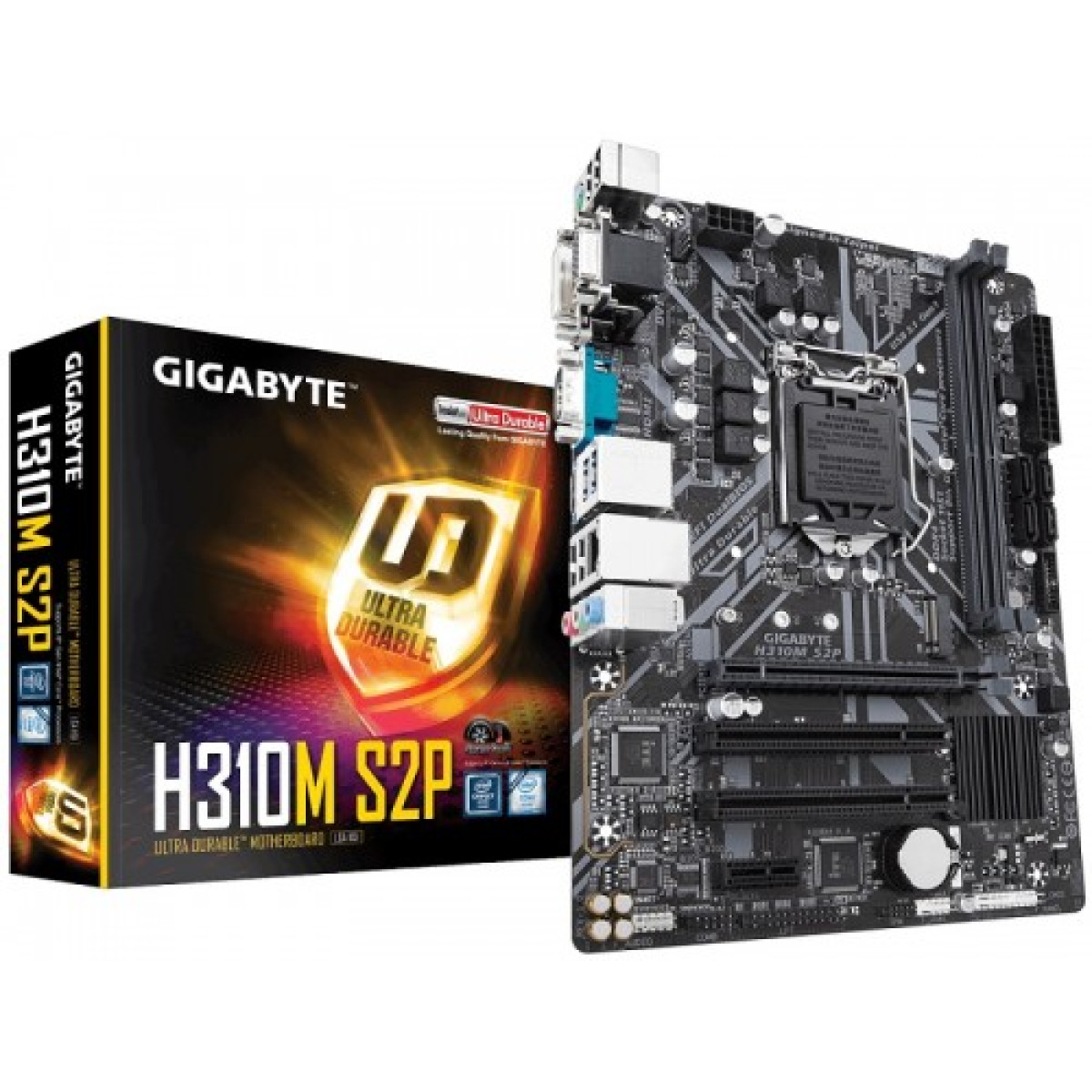

Affordable Performance with Gigabyte H310M S2P Motherboard
Unlock Your PC's Potential with the Gigabyte H310M S2P 8th Gen Micro ATX Motherboard
The Gigabyte H310M S2P is a powerful Micro ATX motherboard designed to support Intel's 8th Generation processors, ensuring that your computing experience is both efficient and seamless. With its robust build quality and advanced features, this motherboard is perfect for gamers, content creators, and everyday users alike.
Featuring a dual-channel DDR4 memory architecture, the H310M S2P supports up to 32GB of RAM, allowing you to multitask with ease and run demanding applications without lag. The motherboard also includes multiple PCIe slots for expansion, enabling you to enhance your system's performance with additional graphics cards or storage devices.
Connectivity is a breeze with the H310M S2P, as it offers USB 3.1 Gen 1 ports for high-speed data transfers and HDMI and DVI outputs for stunning visual quality. Additionally, Gigabyte's Ultra Durable technology ensures long-lasting performance and reliability, making this motherboard a wise investment for your PC build.
Upgrade Your PC with Gigabyte H310M Micro ATX Board
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor; 24.4cm x 18.5cm |
| Supported CPU | Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package (Go to GIGABYTE's website for the latest CPU support L3 cache varies with CPU |
| Chipset | Intel® H310 Express Chipset |
| Memory | 32 GB |
| Slots | 2 x DIMM sockets |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) |
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) 2 x PCI slots |
| Graphics Specifications | |
| Max Shared Memory | 1 GB |
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. |
| Memory Specifications | |
| Supported Memory | Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor. |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI port |
| LAN Port (s) | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) 4 x SATA 6Gb/s connectors |
| USB (s) | 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper |
| WARRANTY | |
| Manufacturing Warranty | 03 Years |
