Key highlights
- Form Factor: - Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm - Solid Capacitor design
- Supported CPU: - Supports 7th and 6th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron Processors (Socket 1151) - 4 Power Phase design - Supports CPU up to 95W - Supports Intel Turbo Boost 2.0 Technology
- Chipset: - Intel H110
- Audio: - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)* - Supports Surge Protection (ASRock Full Spike Protection) - ELNA Audio Caps
- BIOS: - 64Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 5.0 Compliant wake-up events - SMBIOS 2.7 Support - DRAM, PCH 1.0V Voltage Multi-adjustment
Description
High-Performance Asrock H110M HDV R3.0 for Your PC

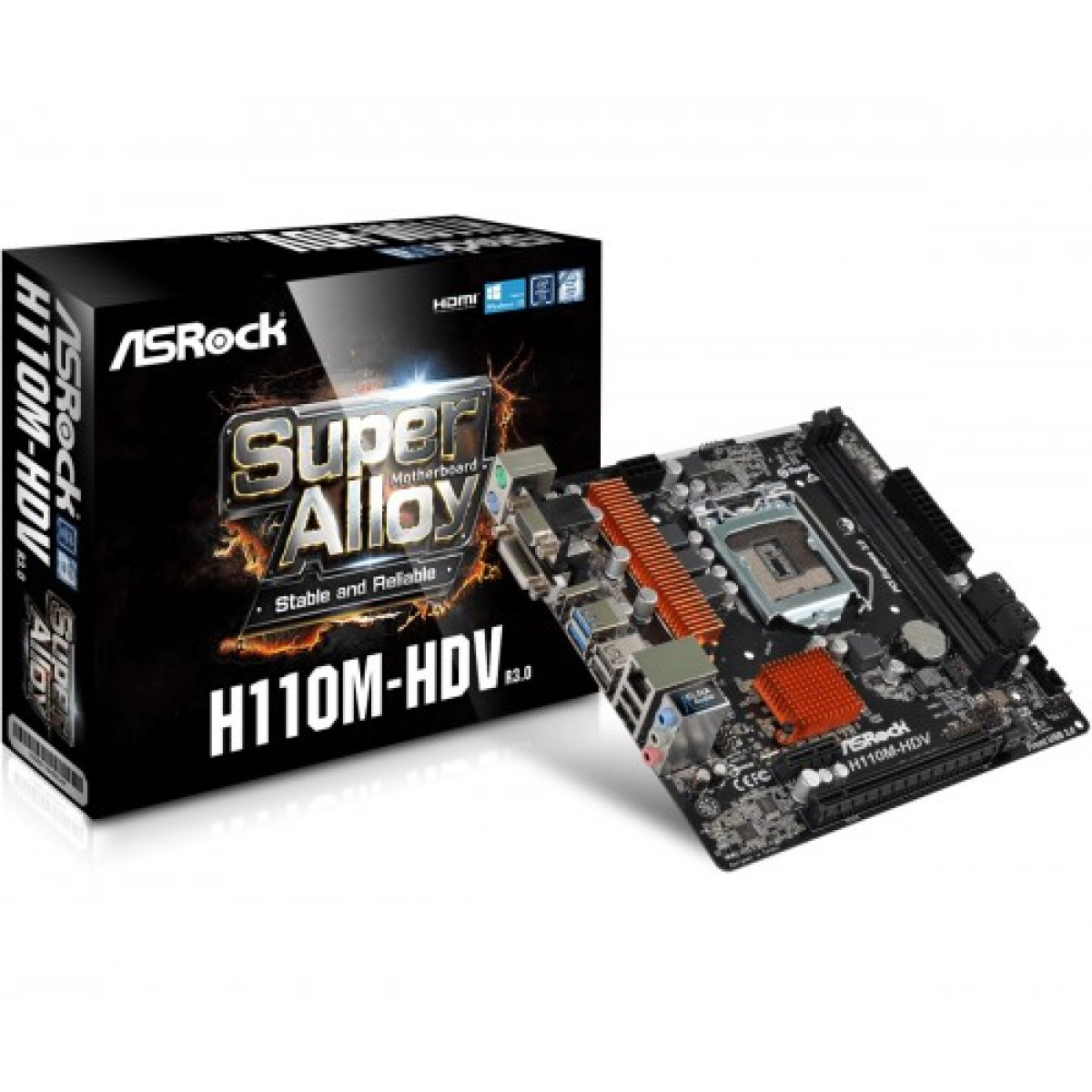

Asrock H110M HDV R3.0 Super Alloy Micro ATX Motherboard
The Asrock H110M HDV R3.0 Super Alloy Micro ATX Motherboard is your reliable partner in building a powerful computing system. Designed with a robust Super Alloy technology, this motherboard offers exceptional durability and performance, ensuring stable operations for all your computing needs. With support for Intel's 6th and 7th generation processors, it provides the flexibility and compatibility required for modern applications and gaming.
Equipped with dual-channel DDR4 memory, the H110M HDV R3.0 allows for high-speed data transfer and multitasking capabilities, making it ideal for users who demand efficiency and speed. The board also features multiple connectivity options, including USB 3.0 ports and HDMI output, catering to a variety of devices and peripherals.
Whether you're a gamer, a content creator, or just someone looking to enhance their home office setup, this motherboard delivers impressive performance and reliability. Its compact Micro ATX form factor ensures compatibility with most cases, making it an excellent choice for compact builds.
Invest in the Asrock H110M HDV R3.0 for a motherboard that combines quality, performance, and affordability, tailored for the Bangladeshi market.
Reliable Micro ATX Motherboard for Gaming and Work
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | - Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm - Solid Capacitor design |
| Supported CPU | - Supports 7th and 6th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron Processors (Socket 1151) - 4 Power Phase design - Supports CPU up to 95W - Supports Intel Turbo Boost 2.0 Technology |
| Chipset | - Intel H110 |
| Audio | - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)* - Supports Surge Protection (ASRock Full Spike Protection) - ELNA Audio Caps |
| BIOS | - 64Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 5.0 Compliant wake-up events - SMBIOS 2.7 Support - DRAM, PCH 1.0V Voltage Multi-adjustment |
| Graphics Specifications | |
| Max Shared Memory | 1024MB |
| Graphics | - Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 510/530/630 - Pixel Shader 5.0, DirectX 12 - Three graphics output options: D-Sub, DVI-D and HDMI - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) at 24Hz / (3840x2160) at 30Hz - Supports DVI-D with max. resolution up to 1920x1200 at 60Hz - Supports D-Sub with max. resolution up to 1920x1200 at 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports Accelerated Media Codecs: HEVC, VP8, VP9 - Supports HDCP with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports |
| Memory Specifications | |
| Maximum Memory | 32GB |
| Slots | - 2 x DDR4 DIMM Slots |
| Supported Memory | - Supports DDR4 2400/2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 |
| Type | Dual-Channel DDR4 Memory Technology |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | Connector: - 1 x Front Panel Audio Connector Rear Panel I/O: - HD Audio Jacks: Line in / Front Speaker / Microphone |
| D-Sub (s) | - 1 x D-Sub port |
| DVI-D (s) | - 1 x DVI-D port |
| HDMI | 1 x HDMI Port |
| LAN Port (s) | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111C/RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports LAN Cable Detection - Supports PXE - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| Supported Storage | - 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
| USB (s) | Connector: - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection)) Rear Panel I/O: - 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))* - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection)) |
| Internal I/O Connectors | - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))* - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Special | |
| Bundled Software | - ASRock Disk Health Report - ASRock USB Key - ASRock APP Charger - ASRock XFast LAN - ASRock XFast RAM - ASRock Fast Boot (Fast Boot, Restart to UEFI) |
| Special Feature | ASRock Super Alloy - High Density Glass Fabric PCB ASRock Full Spike Protection ASRock Live Update & APP Shop |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
