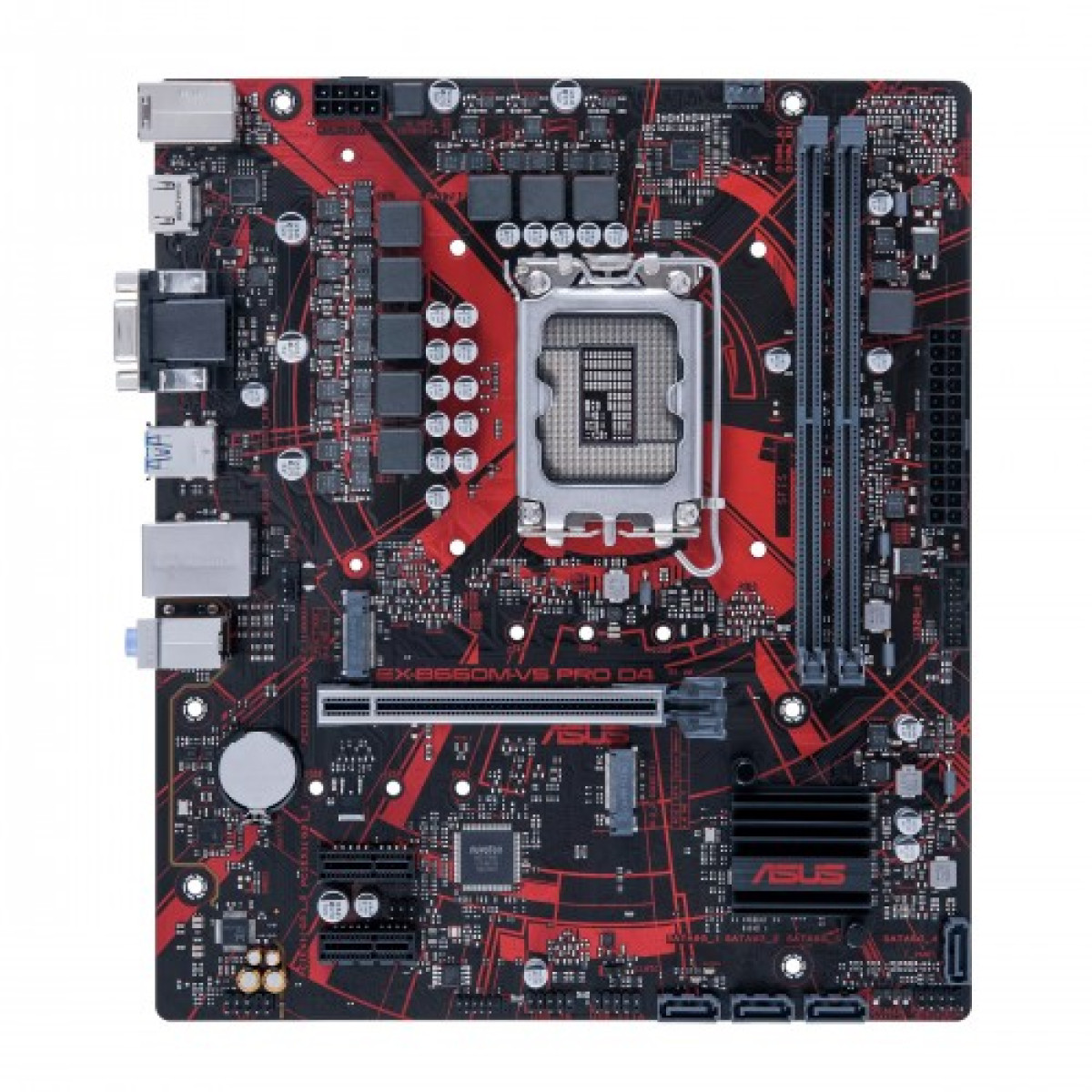

ASUS EX-B660M-V5 PRO D4 12th Gen M-ATX Motherboard
Key highlights
- Form Factor: mATX Form Factor 9.6 inch x 8.3 inch(24.4cm x 21.1cm)
- Supported CPU: Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Intel B660 Chipset
- Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Premium audio capacitors - Audio Shielding - Dedicated audio PCB layers
- BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Description
Explore the Features of ASUS EX-B660M-V5 PRO D4
ASUS EX-B660M-V5 PRO D4: The Ultimate Motherboard for 12th Gen Processors
The ASUS EX-B660M-V5 PRO D4 is engineered to deliver exceptional performance and reliability for your computing needs. Designed for the latest 12th Gen Intel processors, this M-ATX motherboard offers a balance of power and efficiency, making it an ideal choice for gamers, content creators, and everyday users. With robust features including advanced connectivity options, expandable memory support, and superior build quality, this motherboard is poised to elevate your PC experience.
Performance Meets Versatility: The EX-B660M-V5 PRO D4 supports up to 128GB of DDR4 RAM, allowing for seamless multitasking and enhanced performance in demanding applications. Its dual M.2 slots enable lightning-fast storage solutions, while USB 3.2 Gen 2 Type-C connectivity ensures rapid data transfer speeds.
Gaming and Beyond: Whether you’re a hardcore gamer or a creative professional, this motherboard provides the necessary foundation for your system. The integrated ASUS Aura Sync RGB lighting allows for personalized aesthetics, enhancing your build’s visual appeal.
Discover the Power of ASUS: With ASUS’ renowned reputation for quality and innovation, the EX-B660M-V5 PRO D4 stands out as a reliable choice in Bangladesh’s growing tech market. Elevate your PC build today with this exceptional motherboard.
Upgrade Your PC with ASUS M-ATX Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | mATX Form Factor 9.6 inch x 8.3 inch(24.4cm x 21.1cm) |
| Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B660 Chipset |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Premium audio capacitors - Audio Shielding - Dedicated audio PCB layers |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Type | DDR4 |
| Expansion Slots | |
| PCI | Intel 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B660 Chipset 2 x PCIe 3.0 x1 slots |
| Memory Specifications | |
| Maximum Memory | 64GB |
| Slots | 2 x DIMM |
| Supported Memory | 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI port |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
| USB (s) | Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
