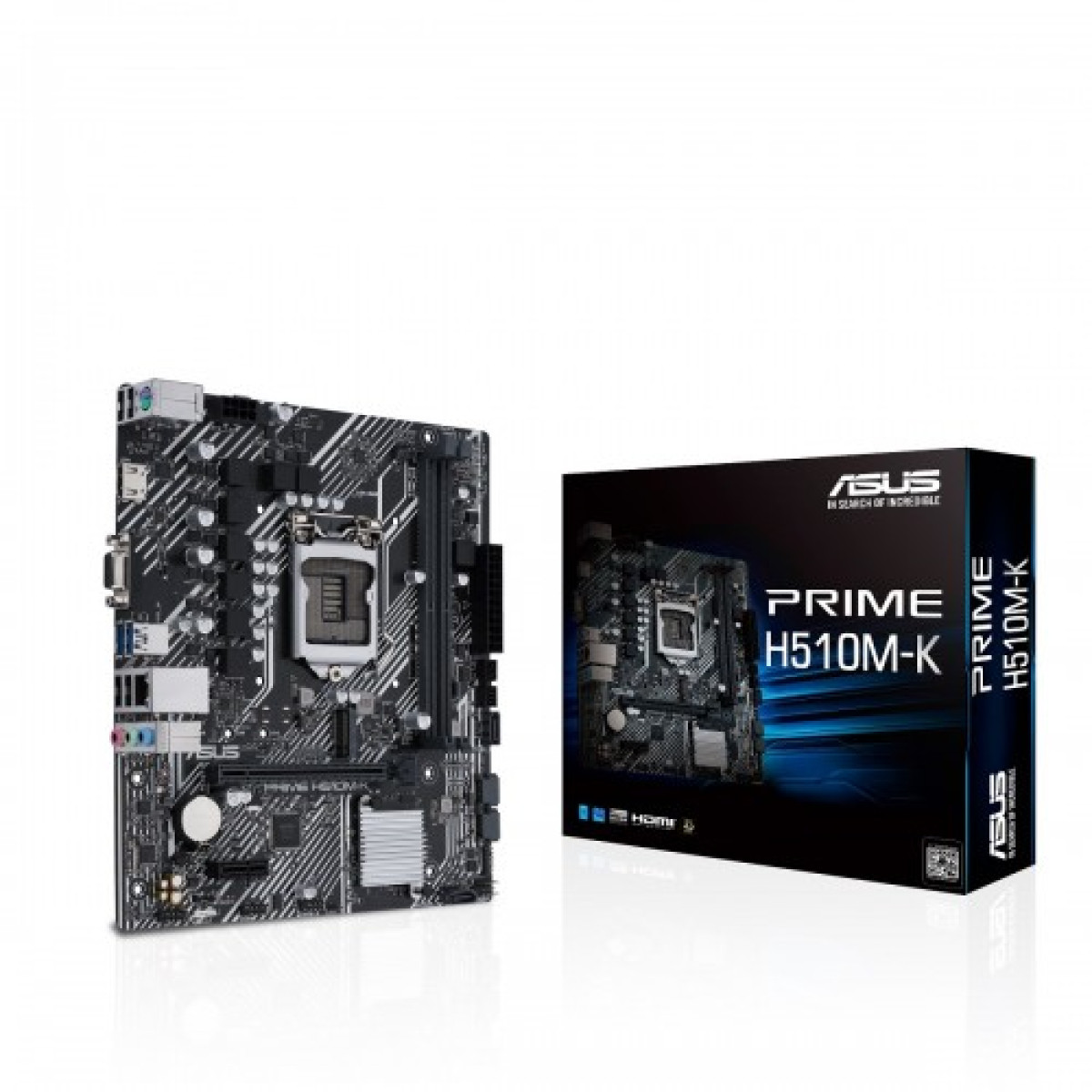

Asus Prime H510M-K Intel 10th and 11th Gen Micro-ATX Motherboard
Call for price
01715143685 / 01711131207
Key highlights
- Form Factor: microATX: 22.6cm x 20.3cm
- Supported CPU: Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Intel H510
- Slots: 2 x DIMM
- Audio: ALC887/ 897 Realtek ALC897/ 887 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Dedicated audio PCB layers
Description
Shop Asus Prime H510M-K Motherboard in Jashore, Bangladesh
Asus Prime H510M-K: The Smart Choice for Your Next Build
Upgrade your computing experience with the Asus Prime H510M-K Micro-ATX motherboard, designed for both Intel 10th and 11th Gen processors. This motherboard is a perfect blend of performance, compatibility, and durability, making it an ideal choice for gamers and professionals alike. With its robust power delivery system, the H510M-K ensures stable operation even under heavy loads.
Equipped with multiple connectivity options, including USB 3.2 Gen 1, HDMI, and VGA outputs, this motherboard supports a wide range of peripherals. The dual-channel DDR4 memory support allows for faster data processing, significantly enhancing your system's performance. Additionally, the onboard PCIe 4.0 slots enable future-proofing your build, ensuring compatibility with the latest graphics cards and SSDs.
Furthermore, the Asus Prime H510M-K features advanced cooling solutions with multiple fan headers and temperature monitoring, ensuring that your system remains cool during intense gaming sessions or demanding workloads. The built-in ASUS SafeSlot provides enhanced PCIe slot protection, making this motherboard a reliable choice for long-term use.
Explore Features of Asus Prime H510M-K Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | microATX: 22.6cm x 20.3cm |
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel H510 |
| Slots | 2 x DIMM |
| Audio | ALC887/ 897 Realtek ALC897/ 887 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Dedicated audio PCB layers |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports |
| PCI | Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H510 Chipset 1 x PCIe 3.0 x1 slot |
| Graphics Specifications | |
| Graphics | 1 x D-Sub 1 x HDMI 1.4 / 2.0 |
| Memory Specifications | |
| Maximum Memory | Maximum Memory |
| Supported Memory | DDR4 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memork Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub |
| HDMI | 1 x HDMI 1.4 |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
| LAN Port (s) | 1 x Intel I219-V 1Gb Ethernet ASUS LANGuard |
| Supported Storage | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H510 Chipset M.2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| USB (s) | Rear USB: Total 6 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB: Total 4 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| Special | |
| Special Feature | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control - RGB header |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
