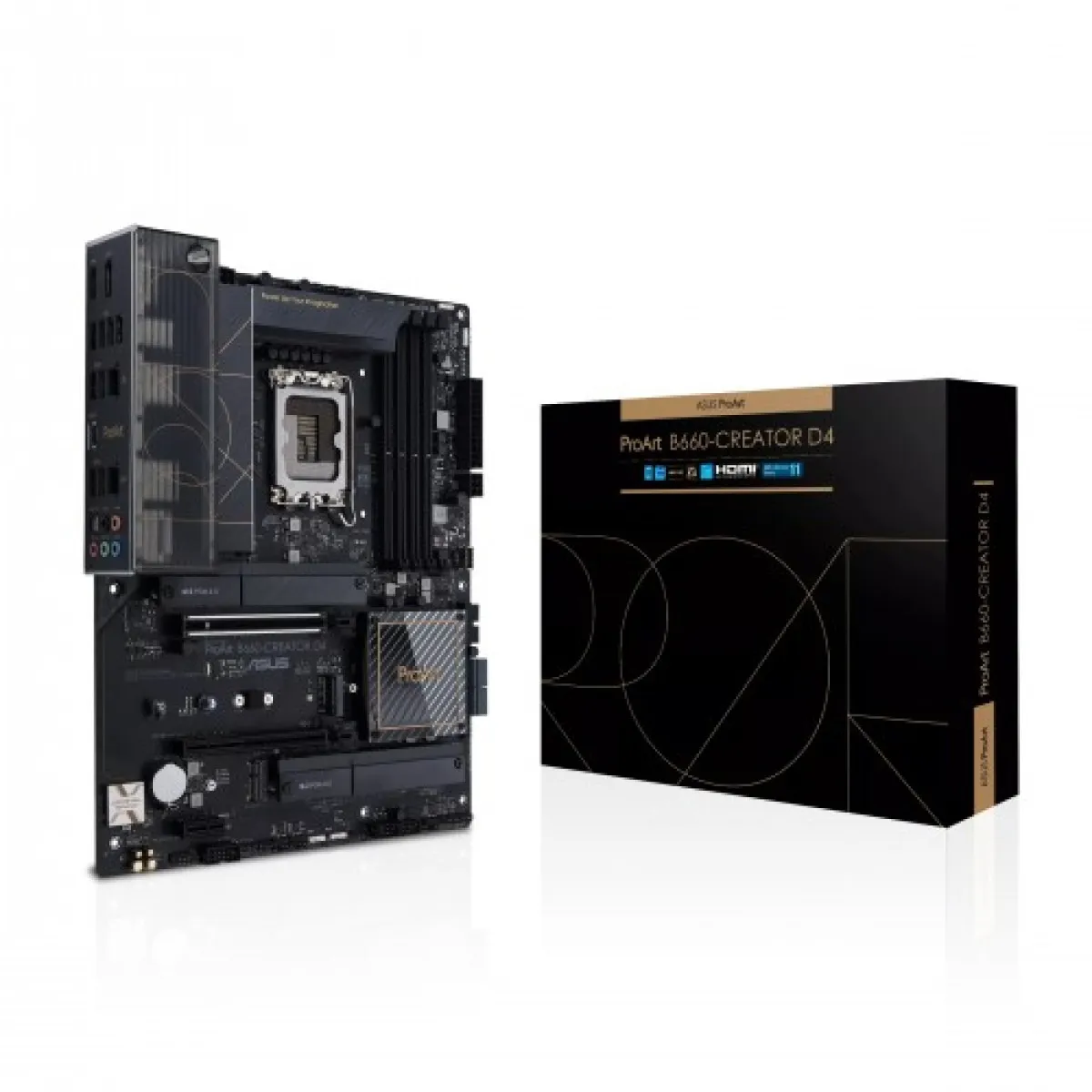

ASUS ProArt B660-CREATOR D4 12th Gen ATX Motherboard
Key highlights
- Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- SpecialFeatures: ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield AURA Sync - AURA RGB header - Addressable Gen 2 headers
- Chipset: Intel B660
- BIOS: 128 Mb
- Type: DDR4
Description
12th Gen ATX Motherboard for Creative Professionals
Unleash Your Creativity with the ASUS ProArt B660-CREATOR D4 Motherboard
The ASUS ProArt B660-CREATOR D4 is a cutting-edge motherboard designed specifically for creative professionals and enthusiasts. Built on the robust Intel B660 chipset, this ATX motherboard supports the latest 12th Gen Intel Core processors, ensuring unparalleled performance for demanding applications such as video editing, 3D rendering, and graphic design. With an emphasis on connectivity, the ProArt B660-CREATOR D4 features Thunderbolt 4 ports, providing lightning-fast data transfer speeds and versatile connectivity options for your devices.
Its comprehensive cooling solutions, including multiple fan headers and M.2 heatsinks, ensure that your system remains stable and performant even during the most intensive tasks. Additionally, the motherboard is equipped with Wi-Fi 6 and Bluetooth 5.2 capabilities, ensuring you stay connected to your network and peripherals without a hitch. The sleek design with customizable RGB lighting not only enhances your workstation's aesthetics but also allows for a personalized touch.
Whether you're a professional artist, content creator, or simply someone who values top-tier technology, the ASUS ProArt B660-CREATOR D4 is your perfect companion for unleashing creativity and productivity.
Explore ASUS ProArt B660-CREATOR D4 Features Now
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| SpecialFeatures | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield AURA Sync - AURA RGB header - Addressable Gen 2 headers |
| Chipset | Intel B660 |
| BIOS | 128 Mb |
| Type | DDR4 |
| Expansion Slots | |
| PCI | Intel 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot Intel B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot** * Supports Intel Optane Memory H Series on PCH-attached PCIE slot ** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled. |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI port |
| Wireless Communication module | M.2 slot only (Key E, PCIe) *Wi-Fi module is sold separately. |
| Special | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility EPU DIGI+ VRM Turbo app ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) ProArt Creator Hub CreationFirst Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
