Key highlights
- Form Factor: ATX Form Factor; 30.5cm x 24.4cm
- Graphics: Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors+Intel Titan Ridge Controller: 2 x USB Type-C ports with Titan Ridge, supporting DisplayPort video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
- SpecialFeatures: Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
- Supported CPU: AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
- Chipset: AMD B550
Description

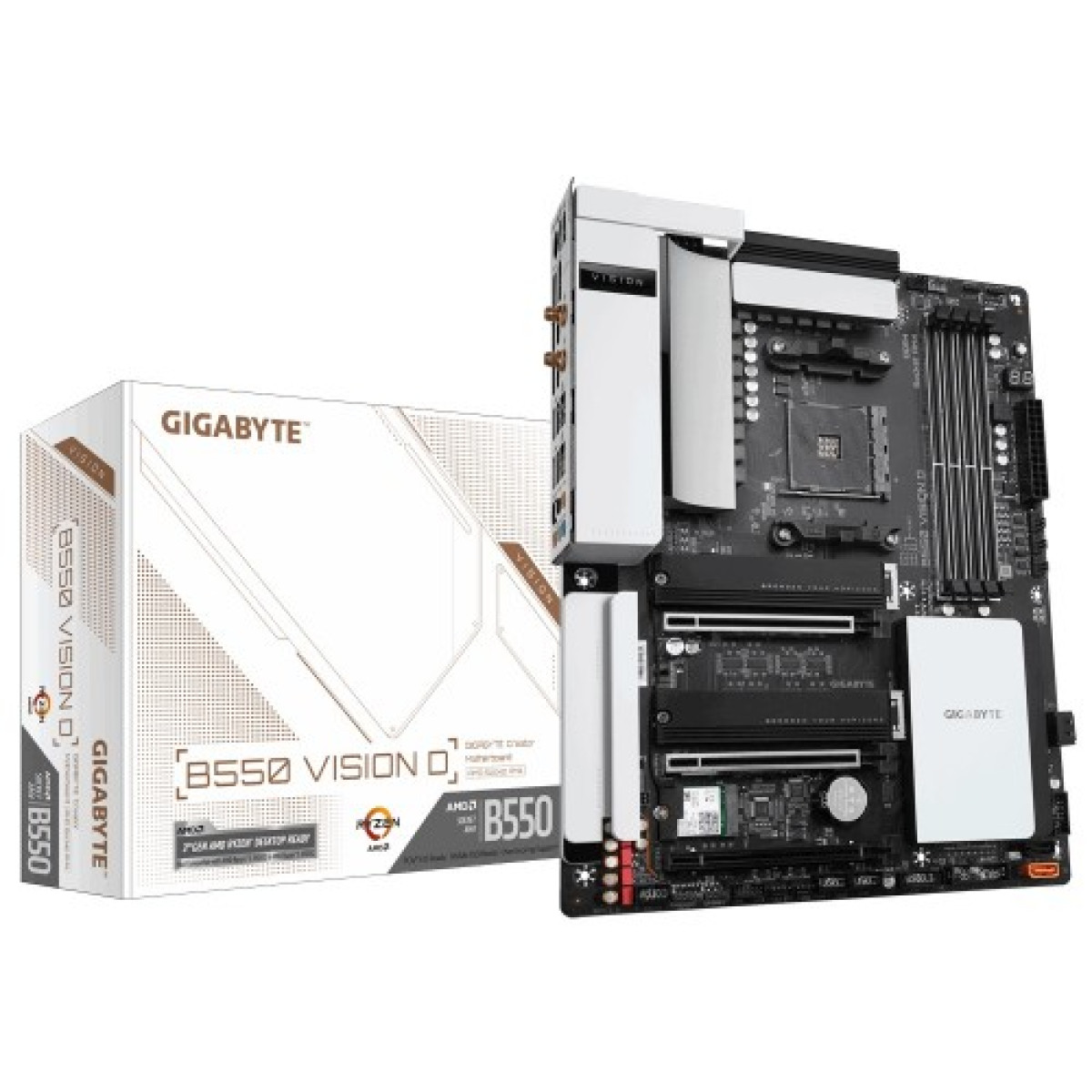

Top Features of Gigabyte B550 Vision D Motherboard
Unleash Your Creativity with the Gigabyte B550 Vision D Motherboard
The Gigabyte B550 Vision D is a cutting-edge motherboard designed specifically for creators and professionals who demand high performance and reliability. With support for AMD's 3rd Generation Ryzen processors, this motherboard is built to handle intensive tasks such as video editing, 3D rendering, and gaming with ease. The dual-channel DDR4 memory architecture allows for faster data transfer rates, ensuring smooth multitasking and improved overall system performance.
Featuring Wi-Fi 6 support, the B550 Vision D provides lightning-fast wireless connectivity, making it ideal for online collaboration and streaming high-definition content. The motherboard is equipped with multiple M.2 slots for NVMe SSDs, enabling you to maximize storage speed and capacity. Additionally, the robust thermal design ensures optimal cooling, preventing overheating during demanding workloads.
For those in the Bangladesh market, the Gigabyte B550 Vision D is a game-changer, offering exceptional value for money. Its premium build quality and features make it a top choice for enthusiasts and professionals alike. Elevate your computing experience and unleash your creative potential with this state-of-the-art motherboard.
Why Choose B550 Vision D for Your PC Build
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Graphics | Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors+Intel Titan Ridge Controller: 2 x USB Type-C ports with Titan Ridge, supporting DisplayPort video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
| SpecialFeatures | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors |
| Chipset | AMD B550 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Type | Dual-Channel Architecture |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated into the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated into the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x8 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x8 mode 1 x PCI Express x16 slot (PCIEX4), integrated into the Chipset: Supporting PCIe 3.0 x4 mode |
| Graphics Specifications | |
| Max Shared Memory | 16 GB |
| Memory Specifications | |
| Maximum Memory | support up to 128GB |
| Slots | 4 x DDR4 memory slots Supported Memory 3rd Gen AMD Ryzen Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules New Generation AMD Ryzen with Radeon Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x SATA DOM power connector 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button |
| LAN Port (s) | 2 x Intel GbE LAN chips (1000 Mbit/100 Mbit). Intel Wi-Fi 6 AX200: WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5: Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| USB (s) | Integrated into the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+Intel Titan Ridge Controller: 2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support Chipset: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers) |
| Special | |
| Bundled Software | Support for Windows 10 64-bit |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
